Page 1: Ceiling Fan

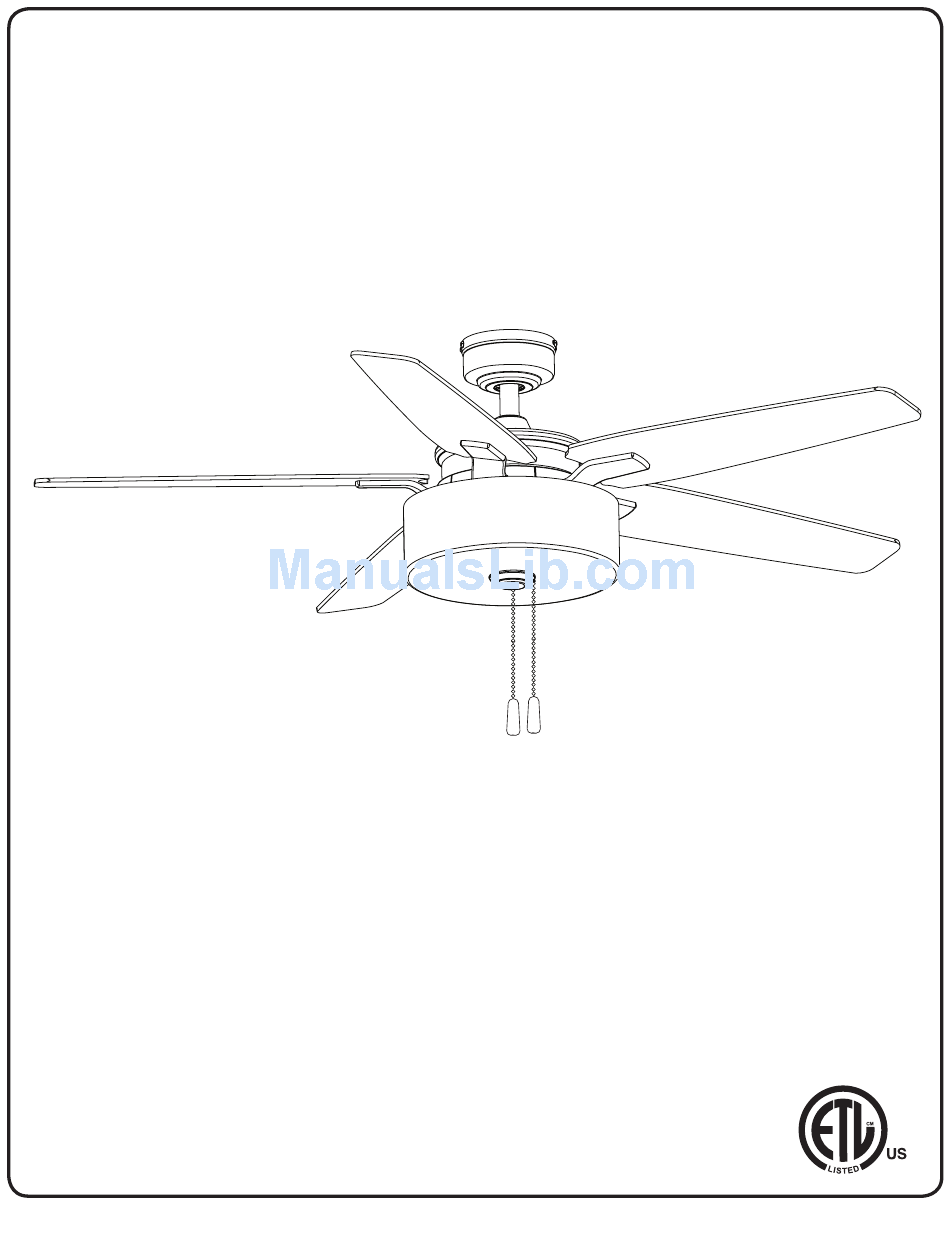

52”ALMENA CEILING FAN Owner’s Manual Models #20345 If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time. Turn of the Century 9191 • 010617... -
Page 2: Package Contents
28. Fitter Plate Screw (x 3) 24. Blade Screw (x 15) 29. Wire Connector (x 3) 25. Closemount Screw (x 3) Note: Some extra hardware has been included. The quantity listed above is the number required for installation. HARDWARE CONTENTS Turn of the Century... -
Page 3: Mounting Options
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not steeper than 16°. Turn of the Century... -
Page 4: Safety Instructions
NOTE: The fan weight is Net Weight: 21.5 lb (9.7 kg). Be sure the outlet box (not included) is securely attached to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious injury. Turn of the Century... - Page 5 Proceed to Step 8. Downrod Clip DOWNROD MOUNT 4. Remove the downrod pin and downrod clip from the Downrod downrod. Then, loosen but don’t remove the two set Set Screw screws in the yoke of the motor assembly. Yoke Turn of the Century...
- Page 6 WARNING: The fan should not rotate in the mounting bracket if installed correctly. Failure to align the slot in the downrod ball with the tab on the mounting bracket may result in fan falling causing serious injury or death. Turn of the Century...
- Page 7 Step 3 and blade Hole isolators. Completely secure each blade arm to motor assembly before moving to the next. Note: The notch in Motor the fitter plate allows access for a Phillips screwdriver. Assembly Blade Arm Motor Screw Turn of the Century...
- Page 8 Note: The concave side of the plastic spacer will face downward so that the hex nut will fit inside. Ribbed Bowl Rubber Washer Plastic Spacer Hex Nut Turn of the Century...
- Page 9 Glass Bowl Finial Cap Finial 17. Attach pull chain extension(s) to the pull chain(s). Pull Chain Extension 18. Restore the power at the main fuse or circuit breaker. Turn of the Century...
- Page 10 IMPORTANT: The reverse switch must be set either completely left or right in order for the fan to function correctly. If the reverse switch is set in the middle Reverse Switch position, the fan will not operate. Turn of the Century...
-
Page 11: Troubleshooting
CAUTION: Make sure main power is turned off before entering switch housing. 1. Make sure the reverse switch is in the down position. 5. Weak airflow: 2. Change to higher fan speed by pulling the fan pull chain. Turn of the Century... -
Page 12: Limited Lifetime Warranty
If your Turn of the Century Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to defects in material or workmanship, we will provide a replacement part free of charge.
