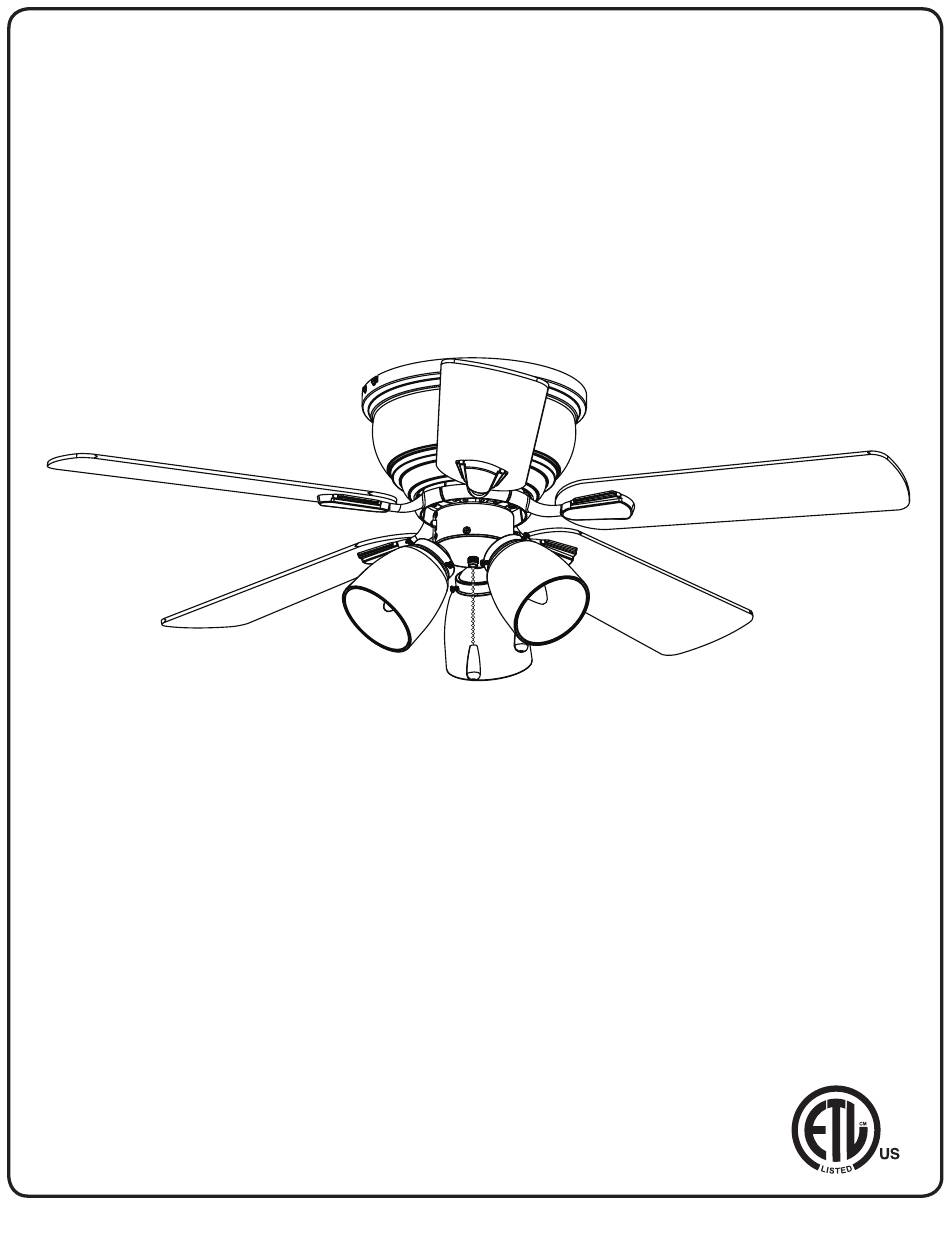

- Page 1 WALNUT GROVE CEILING FAN Owner’s Manual Models #20603, 20604 If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time. Turn of the Century 9265 • 091517...
-
Page 2: Package Contents
20. Wire Connector (x 3) Installation Instructions 19. Blade Washer (x 15) 21. Pull Chain Extension (x 2) Note: Some extra hardware has been included. The quantity listed above is the number required for installation. HARDWARE CONTENTS Turn of the Century... - Page 3 EXPLODED VIEW DETAIL Motor Housing Mounting Bracket Lower Bracket Motor Switch Housing Blade Blade Arm Light Kit Glass Shade Bulb Switch Housing Cap DIMENSION REFERENCE A. 13.74 in. B. 6.84 in. C. 8.50 in. D. 11.07 in. Turn of the Century...
-
Page 4: Safety Instructions
Note: The fan weight is Net Weight: 14.6 lbs (6.67 kgs). Be sure the outlet box (not included) is securely attached to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious injury. Turn of the Century... - Page 5 Lower Bracket Screw 4. Secure the lower bracket to the mounting bracket with the four bracket screws. Mounting Bracket Lower Bracket Bracket Screws Turn of the Century...
- Page 6 Secure the blade arm to the underneath side of the motor using the motor screws. Completely secure each blade arm to motor before moving to the next. To install the fan without the light kit, skip to Step 15. Blade Motor Screw Turn of the Century...
- Page 7 11. Loosen the thumbscrews. Then, insert the glass shade into the light cup and re-tighten the thumbscrews to Thumbscrew secure the glass shades. Light Cup Glass Shade 12. Install the bulbs into the sockets of the light kit. Bulb Turn of the Century...
- Page 8 Note: Align the notch in the switch housing cap with the Switch reverse swtich. Housing Switch c. Attach the pull chains extension (Step 13). Housing d. Restore the power at the main fuse or circuit breaker. Switch Screw Housing Cap Plug Button Turn of the Century...
- Page 9 One pull is HIGH, two is MEDIUM, three is LOW, and four turns the fan OFF. The pull chain in the center of the light kit turns the lights ON and OFF. Light Pull Fan Pull Chain Chain Turn of the Century...
-
Page 10: Troubleshooting
2. Check for loose or disconnected wires in fan switch housing. 3. Check for loose or disconnected wires in light kit. 4. Check for faulty light bulbs. CAUTION: Make sure main power is turned off before entering switch housing. Turn of the Century... -
Page 11: Limited Lifetime Warranty
If your Turn of the Century Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to defects in material or workmanship, we will provide a replacement part free of charge.
