Summary of Contents for Turn of the century 20351
-

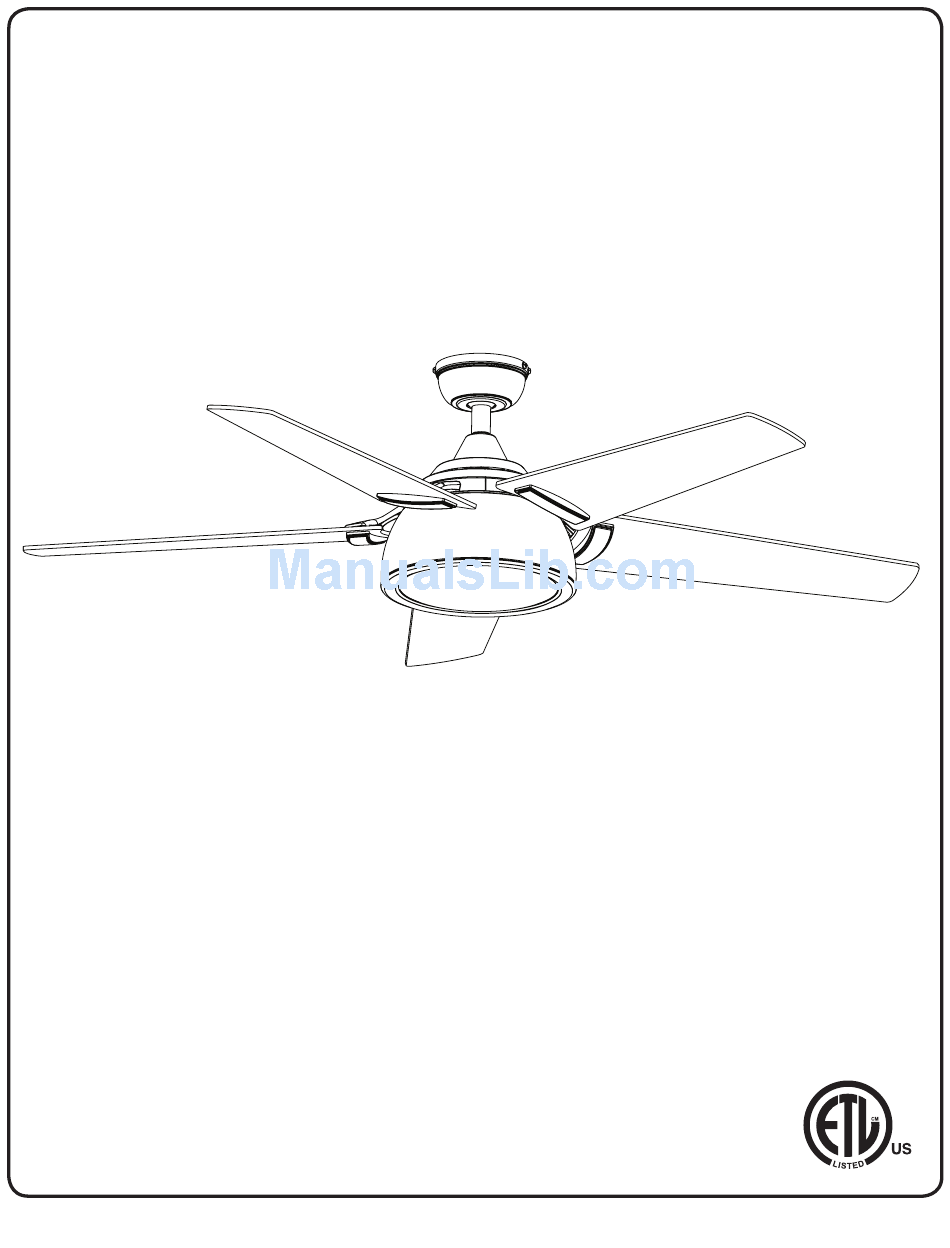

Page 1: Ceiling Fan
52” ALBAN CEILING FAN Owner’s Manual Models #20351 If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-459-3267, 9 a.m. - 5 p.m. Central time. Turn of the Century 9187 • 010417... -
Page 2: Package Contents
24. Wire Connector (x 6) 20. Blade Screw (x 15) 25. Light Pan Screws (x 3) 21. Closemount Screw (x 3) Note: Some extra hardware has been included. The quantity listed above is the number required for installation. HARDWARE CONTENTS Turn of the Century... -
Page 3: Mounting Options
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not steeper than 16°. Turn of the Century... -
Page 4: Safety Instructions
The installation has to be in accordance with the national electrical code, ansi/nfpa 70-1999 and local codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a qualified licensed electrician. Turn of the Century... - Page 5 Securely tighten each blade arm before moving to Blade Arm the next. 4. Drop three blade screws from the hardware bag into the holes in each blade arm. Blade Arm Blade For downrod mount, skip to Step 6. Screw Turn of the Century...
- Page 6 Set Screw Note: With wiring extending out of the downrod, measure 8 inches of lead wire and cut the excess wire with wire cutters (not included). Then strip 1/2” of insulation from the end of each wire. Turn of the Century...
- Page 7 Then turn the canopy clockwise until the mounting bracket screws are completely engaged in Round the J-shaped slots. Install the two previously removed Hole mounting bracket screws in the round holes. Securely Canopy tighten all four mounting bracket screws. Turn of the Century...
- Page 8 Then, turn the light kit clockwise and re-install the previously removed light pan screw. Tighten all three light pan screws. Light Pan Screw Turn of the Century...
- Page 9 Once the wall bracket is installed, hang the slot in the back of the remote over the top of the wall Wall Bracket bracket. Screws Slot Turn of the Century...
- Page 10 OPERATING INSTRUCTIONS 1. Use the fan reverse switch, located on the inside wall of the light kit to optimize your fan for seasonal performance. Using a ceiling fan will allow you to raise your thermostat Reverse Switch setting in summer and lower your thermostat setting in winter without feeling a difference in your comfort.
-
Page 11: Troubleshooting
4. Switch one blade with a blade from the opposite side. Or balance the fan using the balancing kit. 5. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and possibly result in smoother operation. Turn of the Century... -
Page 12: Limited Lifetime Warranty
If your Turn of the Century Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to defects in material or workmanship, we will provide a replacement part free of charge.
