Summary of Contents for Turn of the century 20587
-

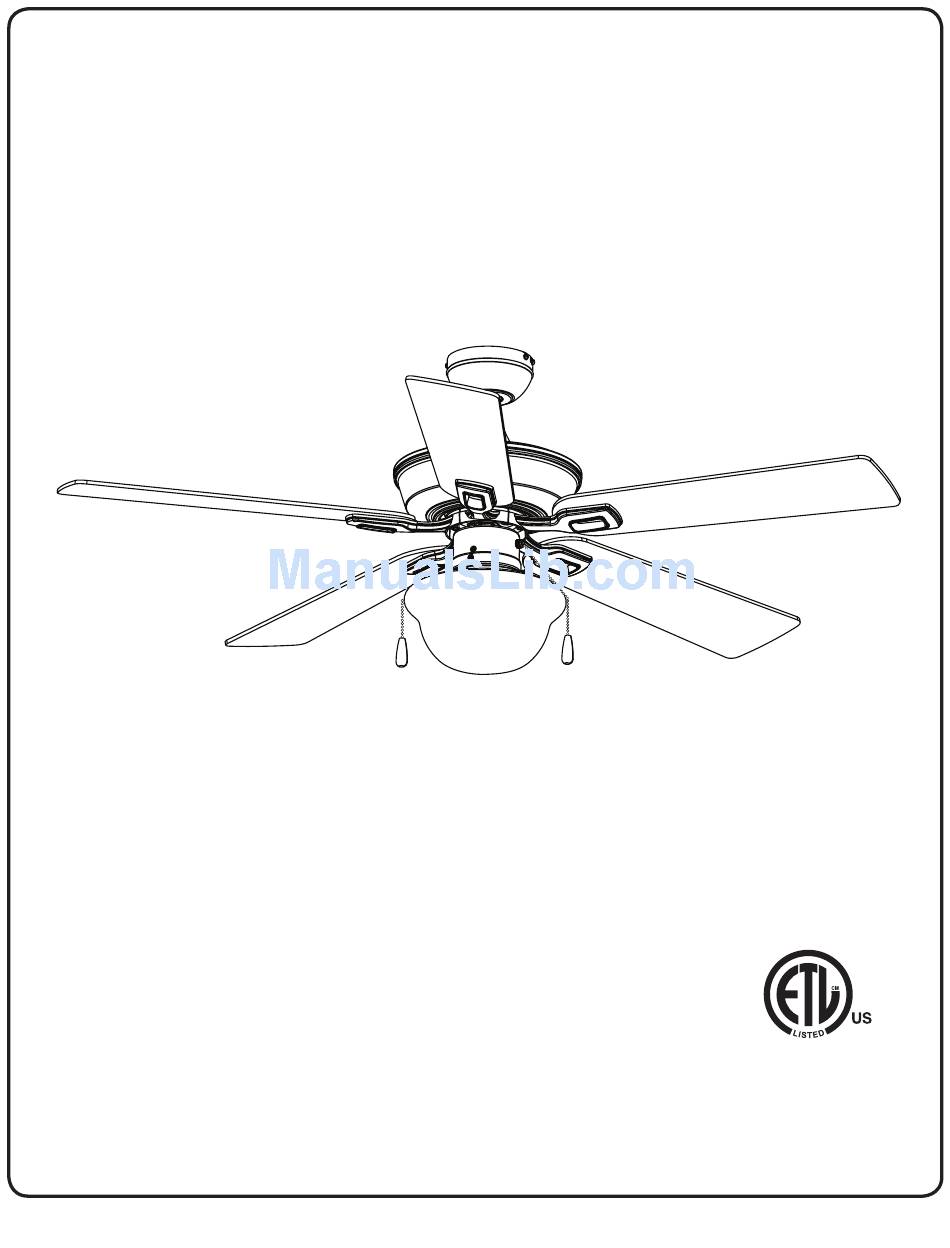

Page 1: Ceiling Fan
Owner’s Manual Models #20587 RATED FOR DAMP LOCATION If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time. Turn of the Century 9281 • 101717... -
Page 2: Package Contents
23. Blade Screw (x 15) 25. Wire Connector (x 3) 24. Blade Washer (x 15) 26. Pull Chain Extension (x 2) Note: Some extra hardware has been included. The quantity listed above is the number required for installation. HARDWARE CONTENTS Turn of the Century... -
Page 3: Mounting Options
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not steeper than 16°. Turn of the Century... -
Page 4: Safety Instructions
The installation has to be in accordance with the national electrical code, ansi/nfpa 70-1999 and local codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a qualified licensed electrician. Turn of the Century... - Page 5 Secure the canopy to the top of the motor housing with the closemount screws. Canopy e. Hang the canopy on the hook of the mounting bracket. Proceed to Step 9. Turn of the Century...
- Page 6 WARNING: The fan and/or downrod should Slot not rotate in the mounting bracket if installed Downrod correctly. Failure to align the slot in the downrod ball with the tab may result in fan falling causing serious injury or death. Turn of the Century...
- Page 7 12. Secure the blade arm to the underside of the motor using motor screws removed in Step 3. Secure each blade arm to motor before moving to the next. Motor To install the fan without the light kit, skip to step 16. Motor Screw Blade Arm Turn of the Century...
- Page 8 Note: If installing the fan without the light kit, do not attach the pull chain extension to the light pull chain. When facing the reverse switch, the light pull chain is on the left and the fan pull chain is on the right. Pull Chain Extension Turn of the Century...
- Page 9 The light pull chain has two positions to control the light, ON and OFF. Note: When facing the reverse switch, the light pull chain is on the left and the fan pull chain is on the right. Light Pull Chain Fan Pull Chain Turn of the Century...
-
Page 10: Troubleshooting
2. Check for loose or disconnected wires in fan switch housing. 3. Check for loose or disconnected wires in light kit. 4. Check for faulty light bulbs. CAUTION: Make sure main power is turned off before entering switch housing. Turn of the Century... -
Page 11: Limited Lifetime Warranty
If your Turn of the Century Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to defects in material or workmanship, we will provide a replacement part free of charge.
