CEILING FAN
LIGHT KIT
Owner's Manual
Models #20564
If a problem cannot be remedied or you are experiencing difficulty in installation,
please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time.
Turn of the Century
TM
9151 • 120715

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20564 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Turn of the century 20564

Summary of Contents for Turn of the century 20564

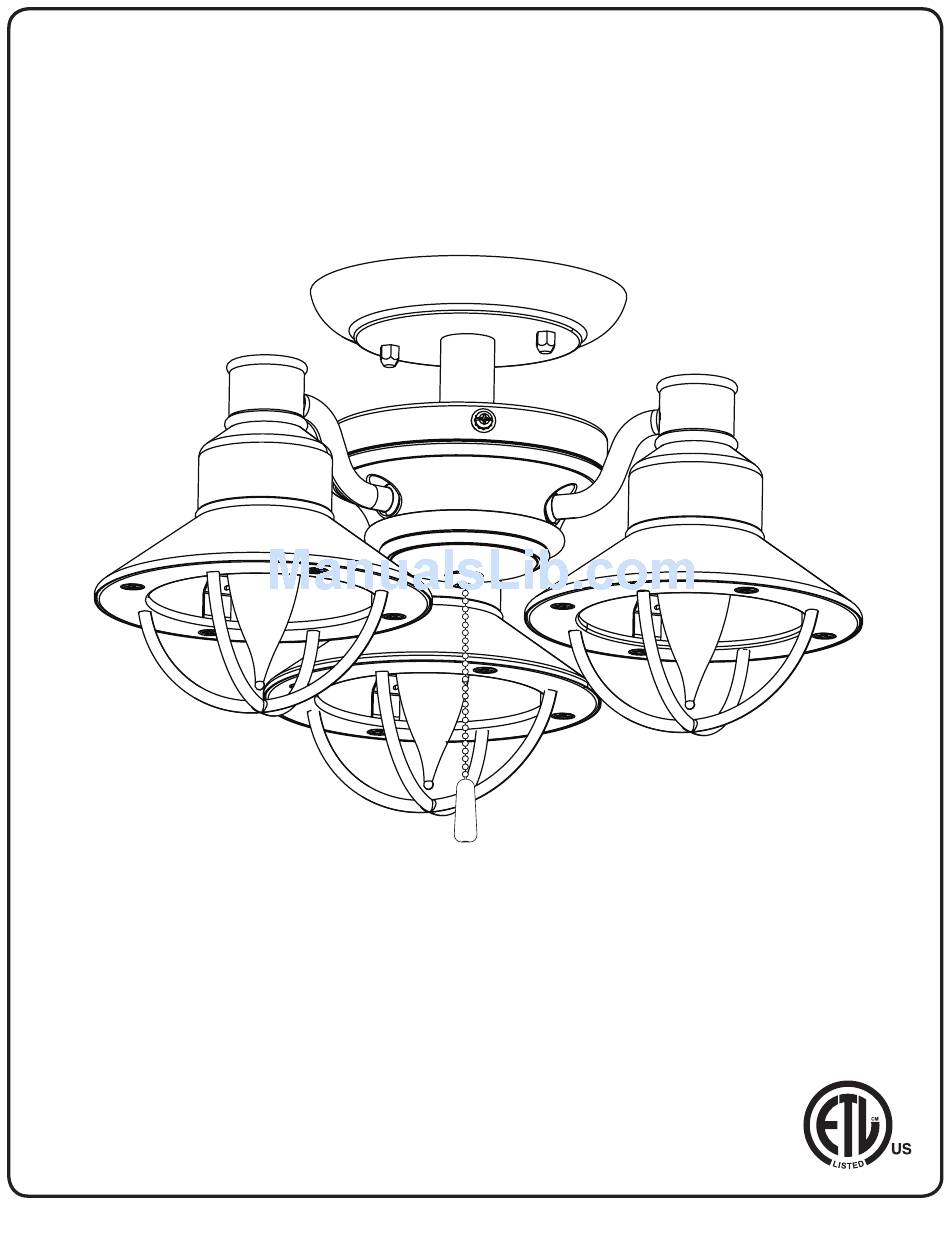

  • Page 1 CEILING FAN LIGHT KIT Owner’s Manual Models #20564 If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time. Turn of the Century 9151 • 120715...

  • Page 2: Package Contents

    18. Pull Chain Extension 14. Coupling Note: Some of the hardware listed is pre-assembled to other parts. You will be instructed where to locate it. HARDWARE CONTENTS MOUNTING OPTIONS Ceiling Fan Light Kit Ceiling Light Fixture Turn of the Century...

  • Page 3: Safety Instructions

    • Wire colors from ceiling fan may not be the same color used in this manual. When in doubt, consult a qualified licensed electrician to determine the proper wiring. NOTE: The net weight of the light kit is less than: 4.4 lbs. Turn of the Century...
  • Page 4 Note: Save the three switch housing screws for later. Switch Housing Cap Switch Housing Screw 4. Use a screwdriver to push the plug button out of the switch housing (A) or switch housing cap (B). Switch Housing Plug Button Switch Housing Cap Plug Button Turn of the Century...
  • Page 5 9-pin connectors. 8. Using the three previously removed switch housing screws, re-attach the switch housing to the fitter plate (A) or the switch housing cap to the switch housing (B). Switch Housing Screw Switch Housing Screw Turn of the Century...
  • Page 6 ASSEMBLY INSTRUCTIONS - FAN MOUNT 9. Attach the pull chain extensions to the pull chains. Pull Chain Extension 10. Restore the power at the main fuse or circuit breaker. Turn of the Century...
  • Page 7 4. Feed the wires through the downrod and canopy. Hex Nut Lock Washer Secure the downrod and canopy to the IP rod by reinstalling the lock washer and hex nut. Canopy Downrod Turn of the Century...
  • Page 8 Canopy Cap Nut 7. Attach the pull chain extensions to the pull chains. Pull Chain Extension 8. Restore the power at the main fuse or circuit breaker. Assembly is complete. Turn of the Century...

  • Page 9: Troubleshooting

    1-877-459-3267, 9 a.m.- 5 p.m. Central time. Model Name: Ceiling Fan Light Kit Model No: 20564 - Bronze (SKU: 355-3194) The manufacturer warrants all of its lighting fixtures against defects in materials and workmanship for one (1) year from the date of purchase. If within this period the product is found to be defective, take a copy of the bill of sale as a proof of purchase and the product in its original carton to the place of purchase.
