Turn of the century Midori20337 Owner's Manual

52” midori ceiling fan
Hide thumbs
Table of Contents

Advertisement

Quick Links

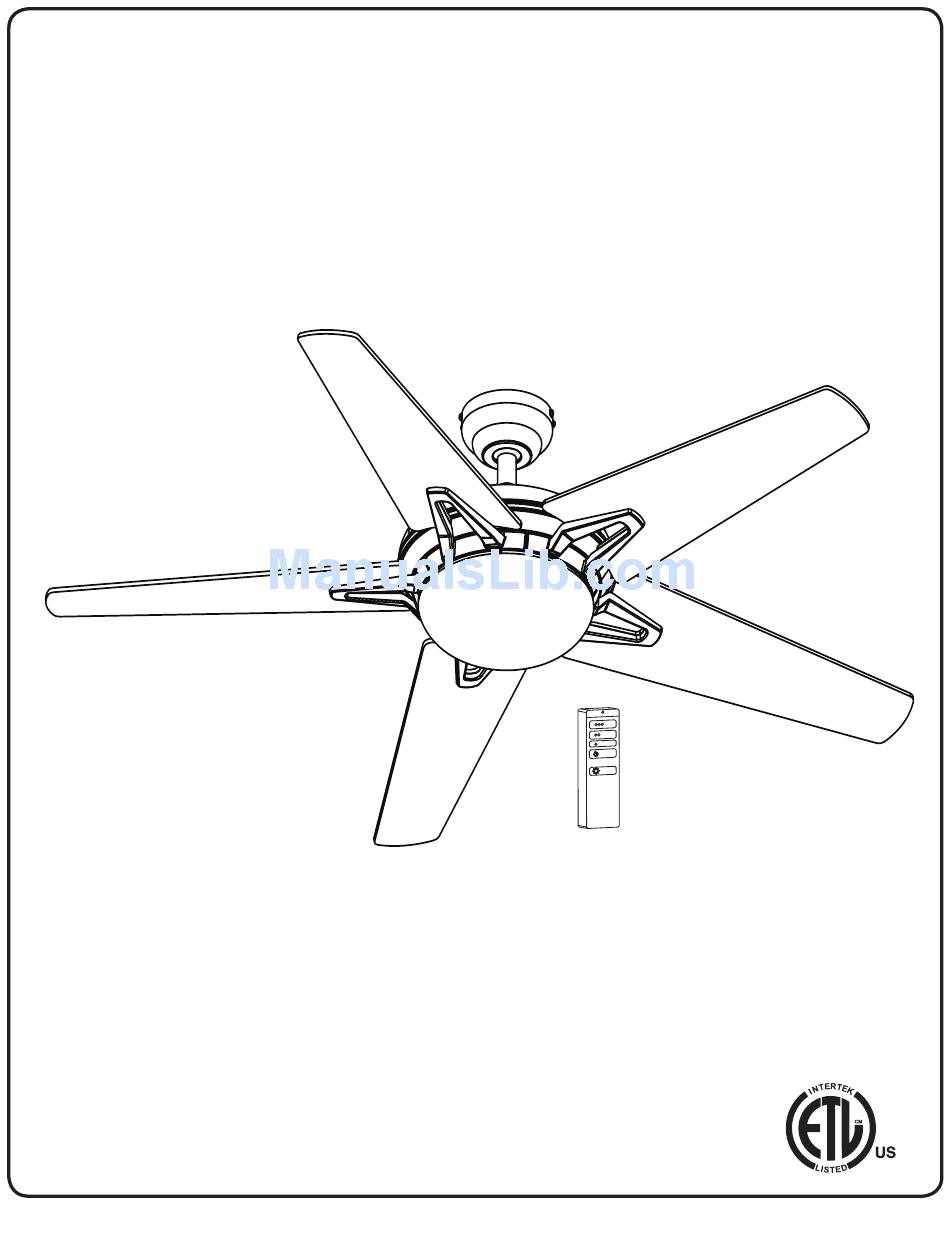

52" MIDORI

CEILING FAN

Owner's Manual
Models #20337, 20338
If a problem cannot be remedied or you are experiencing difficulty in installation,
please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time.
Turn of the Century
TM
1
9111 • 12/10/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Midori20337 and is the answer not in the manual?

Questions and answers

Related Manuals for Turn of the century Midori20337

Summary of Contents for Turn of the century Midori20337

  • Page 1: Ceiling Fan

    52” MIDORI CEILING FAN Owner’s Manual Models #20337, 20338 If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time. Turn of the Century 9111 • 12/10/14...

  • Page 2: Package Contents

    19. Blade Screw (x 15) 25. Downrod Clip 20. Set Screw (x 2) 26. Downrod Pin 21. Star Washer (x4) Note: Some extra hardware has been included. The quantity listed above is the number required for installation. HARDWARE CONTENTS Turn of the Century...

  • Page 3: Mounting Options

    Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not steeper than 10°. Turn of the Century...

  • Page 4: Safety Instructions

    NOTE: The fan weight is Net Weight: 18.68 lb (8.47 kg), Gross Weight: 21.76 lb (9.87 kg). Be sure the outlet box (not included) is securely attached to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious injury. Turn of the Century...
  • Page 5 Then, loosen but don’t remove the set screws in Downrod the yoke. Clip Downrod Set Screw Yoke 4. Feed the wires coming from the yoke through the yoke cover, canopy and downrod. Downrod Canopy Yoke Cover Yoke Turn of the Century...
  • Page 6 Receiver wires with red labels carefully up into the outlet box. Place the black and white connect to wires from outlet box. wire connections on opposite sides of the outlet box. Turn of the Century...
  • Page 7 12. Secure the blade arm to the underside of the motor using motor screws removed in Step 10. Secure each blade arm to motor before moving to the next. Fitter Plate Motor Motor Screw Blade Arm Turn of the Century...
  • Page 8 15. Install the CFL bulbs into the sockets of the light kit. Then, lift the glass bowl up to the light kit and turn in a clockwise direction until it is secure. Bulb Glass Bowl 16. Restore the power at the main fuse or circuit breaker. Turn of the Century...
  • Page 9 Note: A slot on the back of the remote control allows it to be stored on the wall bracket when not in use. Mounting Slot Screw Turn of the Century...

  • Page 10: Troubleshooting

    5 seconds. The LED indicator will flash 3 times. When syncing is complete, the fan will start on the low speed with the light (if applicable) off. 3. Replace the transmitter battery with a new 12-volt battery. Turn of the Century...

  • Page 11: Limited Lifetime Warranty

    If your Turn of the Century Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to defects in material or workmanship, we will provide a replacement part free of charge.

This manual is also suitable for:

Midori 20338
