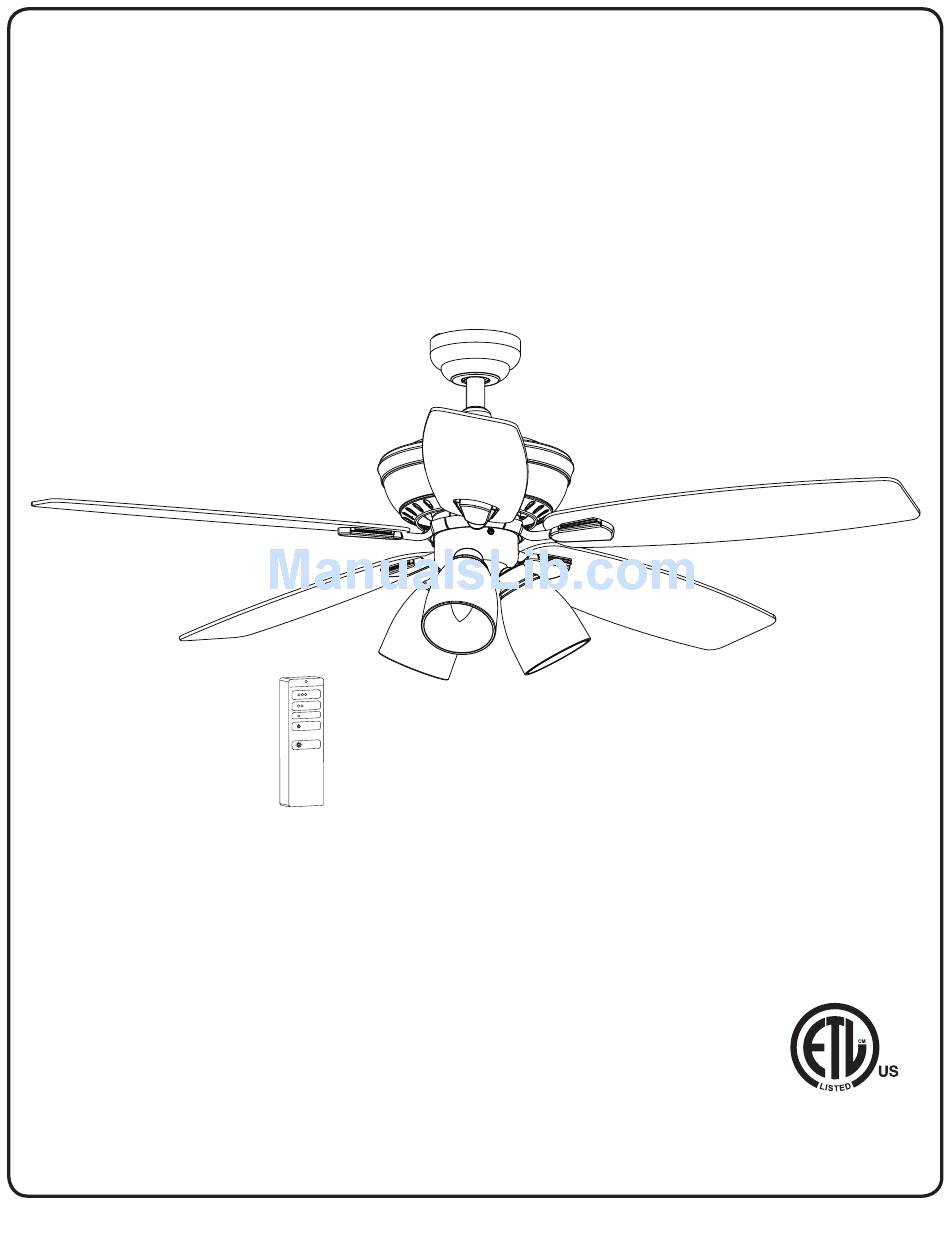

- Page 1 52” LANGNER CEILING FAN Owner’s Manual Models #20308, 20309 If a problem cannot be remedied or you are experiencing difficulty with installation, please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time. Turn of the Century 9117 • 05/18/15...
-
Page 2: Package Contents
21. Blade Washer (x 15) 27. Downrod Clip 22. Downrod Set Screw (x 2) 28. Downrod Pin Note: Some extra hardware has been included. The quantity listed above is the number required for installation. HARDWARE CONTENTS Turn of the Century... -
Page 3: Mounting Options
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not steeper than 10°. Turn of the Century... -
Page 4: Safety Instructions
NOTE: The fan weight is Net Weight: 18.52 lb (8.42 kg), Gross Weight: 21.38 lb (9.72 kg). WARNING: Be sure the outlet box (not included) is securely attached to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious injury. Turn of the Century... - Page 5 Proceed to Step 8. 4. DOWNROD OR ANGLED CEILING MOUNT - Remove the downrod pin and downrod clip from the downrod. Downrod Then, loosen but don’t remove the set screws in the yoke. Clip Downrod Set Screw Yoke Turn of the Century...
- Page 6 Downrod 8. Place the receiver in the mounting bracket to prepare for the wiring process. Receiver Note: The receiver will rest directly on top of the downrod. Mounting Bracket Downrod Turn of the Century...
- Page 7 Tighten each blade screw, starting with the one in the Blade Washer Blade Screw middle. Repeat this step for the remaining blades and blade arms. Blade Blade Arm Turn of the Century...
- Page 8 15. Remove the socket ring from the socket. Lift the glass shade onto the socket and secure with socket ring. Repeat for each socket. Socket Glass Shade Socket Ring 16. Install the three candelabra-base bulbs (60W max.) into the sockets of the light kit. Bulb Turn of the Century...
- Page 9 Install the switch housing cap to the bottom of the fitter plate with the three fitter plate screws. Switch Housing Screw Switch Housing Cap 18. Restore the power at the main fuse or circuit breaker. Turn of the Century...
- Page 10 The LED on the remote control will flash four times to confirm mode setting. Remote E - Turns the light on and off. Press and hold this button to dim or brighten when using incandescent bulbs. Turn of the Century...
-
Page 11: Troubleshooting
5 seconds. The LED indicator will flash 3 times. When syncing is not work: complete, the fan will start on the low speed with the light (if applicable) off. 2. Replace the transmitter battery with a new 12-volt battery. Turn of the Century... -
Page 12: Limited Lifetime Warranty
If the Turn of the Century Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to defects in material or workmanship, the manufacturer will provide a replacement part free of charge.
