Turn of the century 20200 Owner's Manual

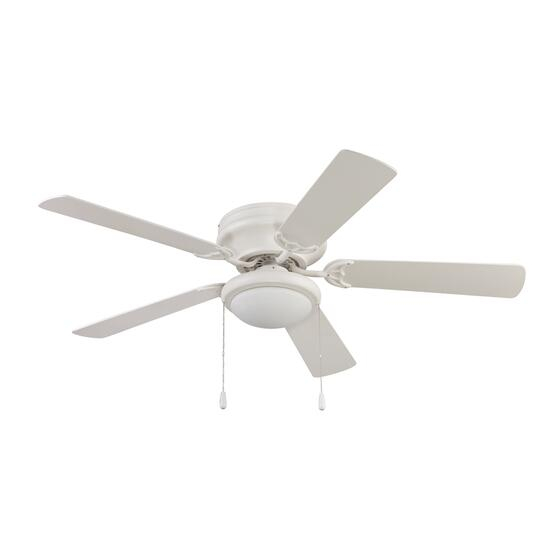

Gilford ceiling fan
Hide thumbs
Table of Contents

Advertisement

Quick Links

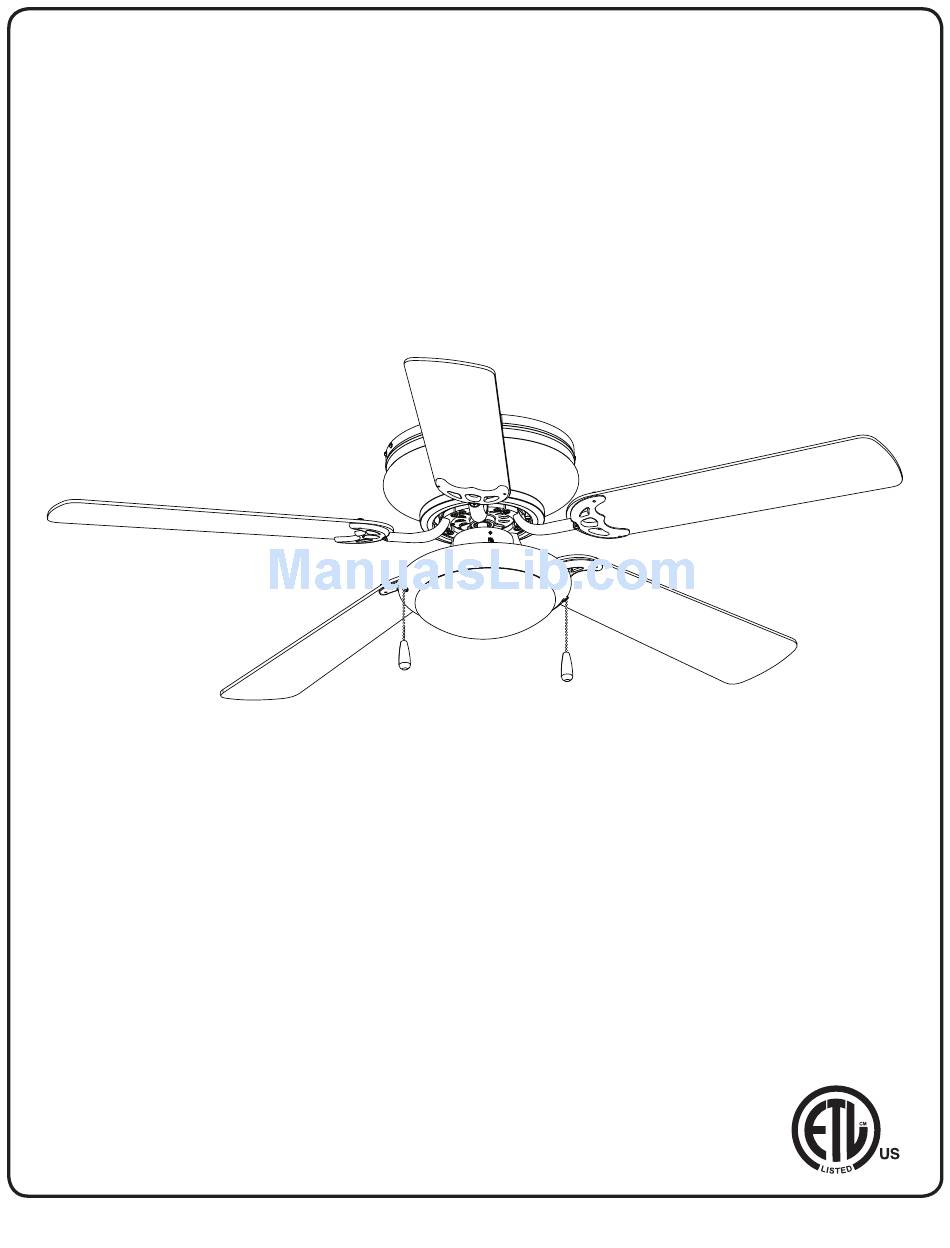

GILFORD

CEILING FAN

Owner's Manual
Models #20200, 20201
If a problem cannot be remedied or you are experiencing difficulty in installation,
please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time.
Turn of the Century
TM
1
9279 • 091517

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Turn of the century 20200

Summary of Contents for Turn of the century 20200

  • Page 1: Ceiling Fan

    GILFORD CEILING FAN Owner’s Manual Models #20200, 20201 If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time. Turn of the Century 9279 • 091517...

  • Page 2: Package Contents

    19. Blade Washer (x 15) 20. Wire Connector (x 3) Owner’s 21. Pull Chain Extension (x 2) Manual Hardware Note: Some extra hardware has been included. The quantity listed above is the number required for installation. HARDWARE CONTENTS Turn of the Century...
  • Page 3 EXPLODED VIEW DETAIL Mounting Bracket Motor Housing Lower Bracket Motor Blade Switch Housing Blade Arm Light Kit Bulb Glass Bowl Switch Housing Cap DIMENSION REFERENCE A. 11.46 in. B. 6.1 in. C. 8.12 in. D. 11.52 in. Turn of the Century...

  • Page 4: Safety Instructions

    Note: The fan weight is Net Weight: 13.51 lb (6,13 kg). Be sure the outlet box (not included) is securely attached to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious injury. Turn of the Century...
  • Page 5 Note: The Lower Bracket Screw hooks on the lower bracket will rest in the narrow slots. 4. Secure the lower bracket to the mounting bracket with the four bracket screws. Mounting Bracket Lower Bracket Bracket Screws Turn of the Century...
  • Page 6 Secure the blade arm to the underneath side of the motor using the motor screws. Completely secure each blade arm to motor before moving to the next. To install the fan without the light kit, skip to Step 15. Motor Screw Blade Turn of the Century...
  • Page 7 12. Lift the glass bowl into the light kit. Ensure each of the three clips are inside of the edge of the glass bowl and life the glass bowl until it is securely clipped into place. Clip Glass Bowl Turn of the Century...
  • Page 8 Note: Align the notch in the switch housing cap with the Switch reverse swtich. Housing c. Attach the pull chains extension (Step 13). Switch d. Restore the power at the main fuse or circuit breaker. Switch Housing Housing Cap Screw Turn of the Century...
  • Page 9 2. The fan pull chain has four positions to control the fan speed. One pull is HIGH, two is MEDIUM, three is LOW, and four turns the fan OFF. The light pull chain turns the light ON and OFF. Light Pull Fan Pull Chain Chain Turn of the Century...

  • Page 10: Troubleshooting

    2. Check for loose or disconnected wires in fan switch housing. 3. Check for loose or disconnected wires in light kit. 4. Check for faulty light bulbs. CAUTION: Make sure main power is turned off before entering switch housing. Turn of the Century...

  • Page 11: Limited Lifetime Warranty

    If your Turn of the Century Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to defects in material or workmanship, we will provide a replacement part free of charge.

This manual is also suitable for:

20201
