INSTALLATION INSTRUCTIONS

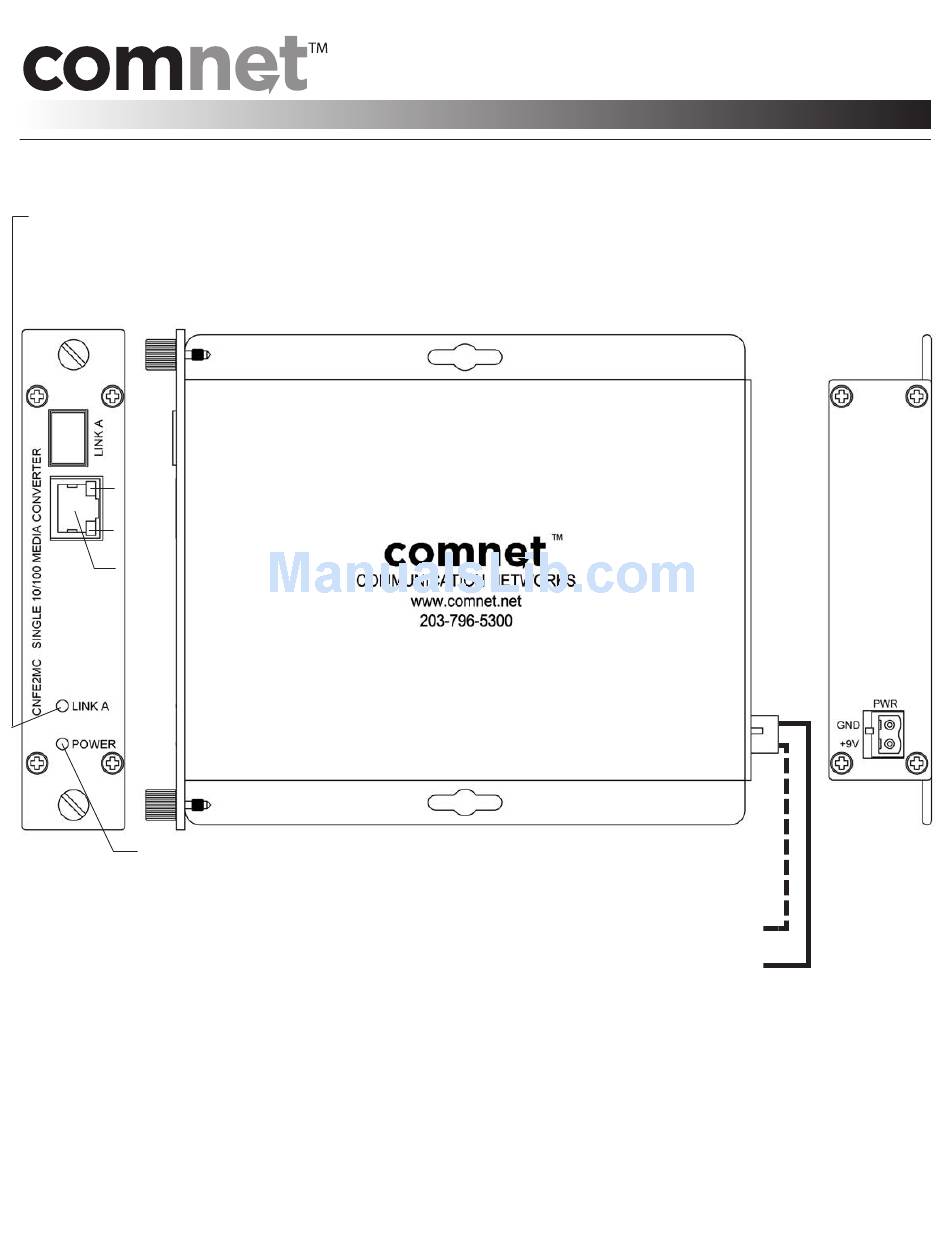

LINK A: YELLOW: Link = Highest Data Rate (100 Mb/s)
GREEN: Solid = No Activity
Blinking = Activity
GREEN
YELLOW
RJ45
GREEN = Powered On
RJ45: YELLOW: Link = Highest Data Rate (100 Mb/s)
GREEN: Solid = No Activity
Blinking = Activity
Off = No Link
WARNING: Unit is to be used with a Listed Class 2 or LPS power supply rated 9-12 VDC @ 1A.
WARNING: This unit should be installed in a restricted access location; available through the use of a lock and key or other
means of security. Access should be limited to service personnel who have been instructed about the reasons for the restrictions
to the location. Any and all precautions should be taken and controlled by the authority responsible for the location.
IMPORTANT SAFEGUARDS:
A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack environment may be greater than room ambient.
Therefore, consideration should be given to installing the equipment in an environment compatible with
the maximum ambient temperature (Tma) specified by the manufacturer.
B) Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow
required for safe operation of the equipment is not compromised.
SINGLE 10/100 MEDIA CONVERTER
BLACK WITH WHITE STRIPE
CNFE2MC
BLACK
INS_CNFE2MC_REVA
04/07/09
Page 2
