Upon start-up, air may be trapped in the DI cartridges (housing may not
appear full), this is a normal condition and it will not affect the operation
of the DI system. However, if you later install an ASO Valve/Check Valve
for automatic operation, all air must be kept purged from the housings.
Now follow the instructions for testing the concentrate to purified water
ratio on pages 7 through10.
CHECK:
- Ensure that all fittings are tight and leak-free before leaving the
system unattended.
- The concentrate line (yellow) includes a smaller capillary tube
(flow restrictor) that is located "inside" of the tubing. Do not
remove or discard this restrictor; the system will not produce
permeate water without the flow restrictor.
(2) TDS
Monitors
Tap Water
Connection
"Black line"
.5 micron
MicroTec™
Sediment
Pre-Filter
(SF-MT-.5-10)
.5 micron
Carbon Block
Pre-Filter
(CF-.5-10)
BLACK LINE: Tap Water Input to system. (Supplied with garden hose adapter)
BLUE LINE: Product Water. (Automate the product water with Liquid Leve Controllers)
YELLOW LINE: Concentrated Waste Water. (Goes to drain. Use a drain saddle to
connect to drain pipe)
SpectraPure®Inc.
2167 East Fifth St, Tempe, Arizona 85281
6
®

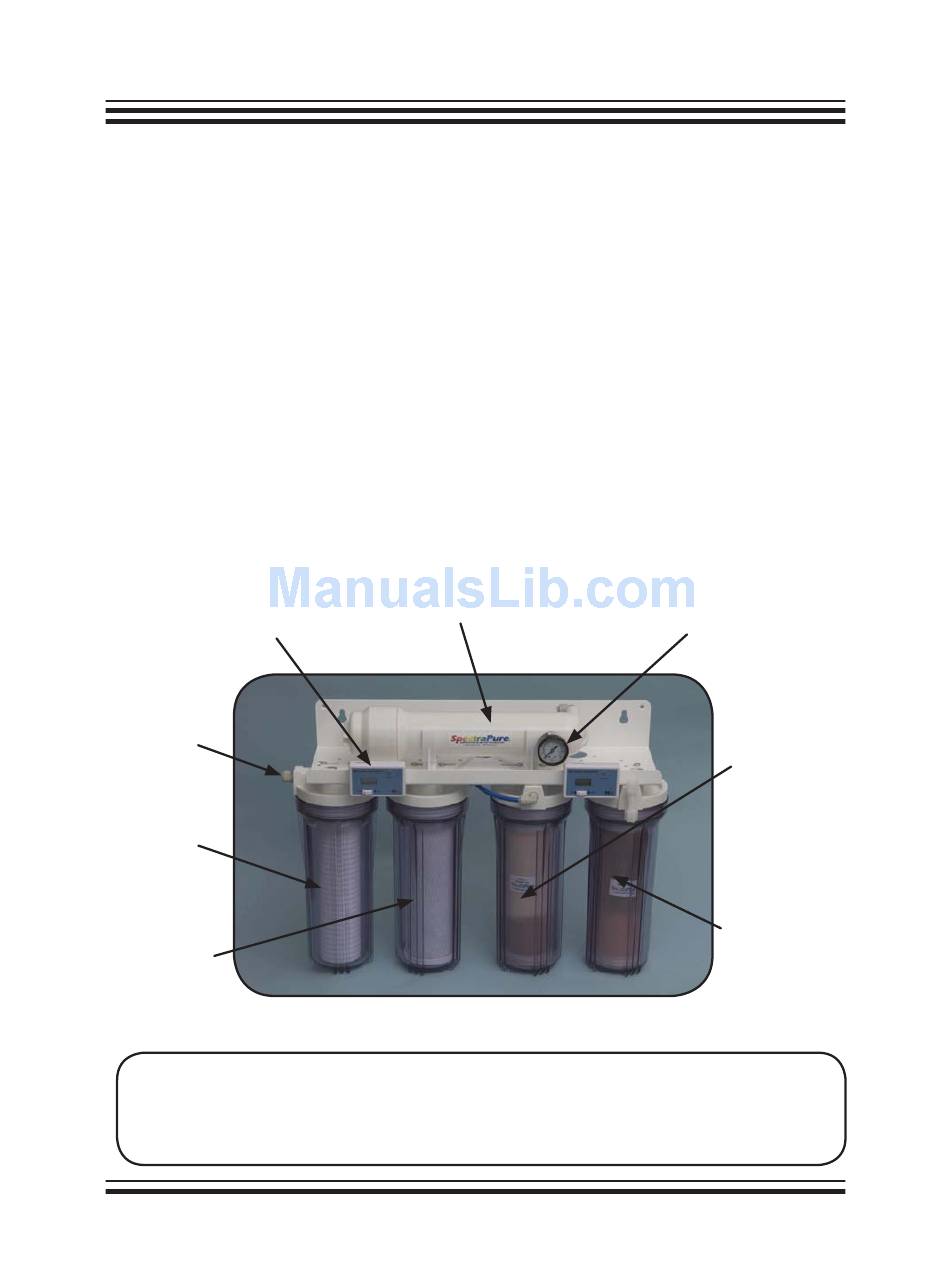

Fig. A: System Components
TFC RO Membrane
(MEM-0090)
480.894.5437 Call us toll-free 1.800.685.2783
Pressure
Guage
DI Cartridge
#1DI-MC-10
®
"MaxCap "
DI
Cartridge #2
DI-SB-10
"Silica-Buster"
