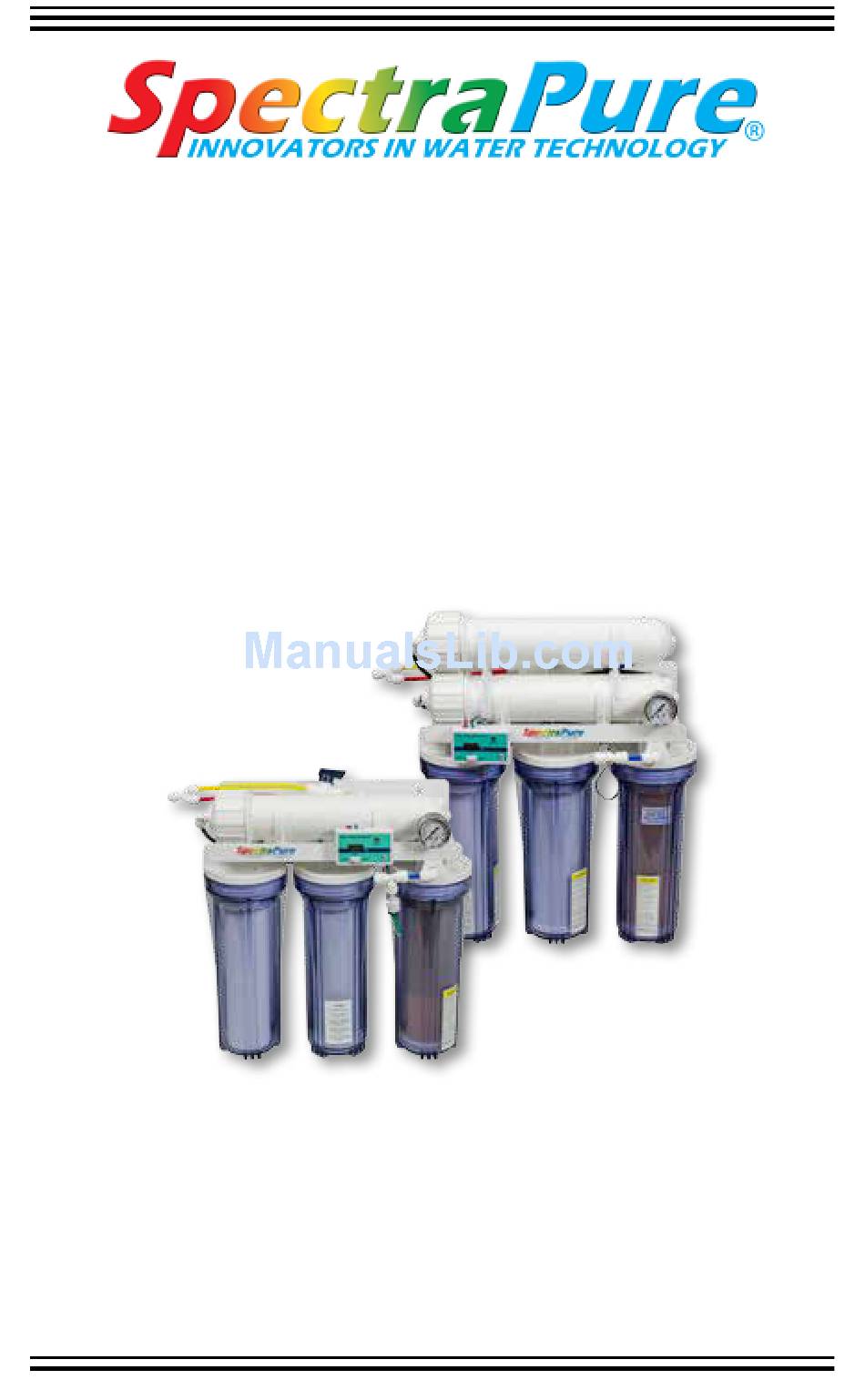

CSPDI -MF
(manual flush)
CSPDI - AF
(automatic flush)
(90 & 180 GPD models)
Reverse Osmosis/Deionization
Water Purification Systems
INSTALLATION AND OPERATING MANUAL
WARNING
Please read carefully before proceeding with installation. Failure to
follow any attached instructions or operating parameters may lead
to the product's failure and possible damage to property.
v6 2015- 08-24
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SpectraPure CSPDI-90-MF
Summary of Contents for SpectraPure CSPDI-90-MF
- Page 1 CSPDI -MF (manual flush) CSPDI - AF (automatic flush) (90 & 180 GPD models) Reverse Osmosis/Deionization Water Purification Systems INSTALLATION AND OPERATING MANUAL WARNING Please read carefully before proceeding with installation. Failure to follow any attached instructions or operating parameters may lead to the product’s failure and possible damage to property.
-
Page 2: Table Of Contents
Optional Accessories ..................26 Notes ........................27 Replacement Parts ....................28 COPYRIGHT 2002-2015© BY SPECTRAPURE INC ALL RIGHTS RESERVED No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written permission of SpectraPure Inc. -
Page 3: System Features
• 3-year warranty Warning: SpectraPure does not recommend drinking deionized water. Thank You for your purchase of a SpectraPure System. With proper installation ® and maintenance, this system will provide you with high quality water for years to come. All SpectraPure products are rigorously tested by us for ®... -
Page 4: System Specifications
SpectraPure ® SYSTEM SPECIFICATIONS: Sediment Prefilter 0.5 micron MicroTec™ sediment prefilter (SF-MT-0.5 -10) Carbon Filter 0.5 micron carbon block prefilter (CF-0.5 -10) RO Membrane Type SpectraSelectPlus 99% rejection membrane (TFC) DI Cartridge SilicaBuster™ SUPER DI™ Cartridge (DI-SB-10HC) Rejection Rate Minimum 98%; 99% typical Input Water Pressure 60 psi (4.15 bar) line pressure*... -
Page 5: General System Description
GENERAL SYSTEM DESCRIPTION: This SpectraPure RODI System gives you a continuous supply of sparkling ® clear water. The reliability with the SpectraPure Water Treatment System is ® greatly improved over other systems. Costly maintenance can be avoided, providing high quality water at your fingertips. -

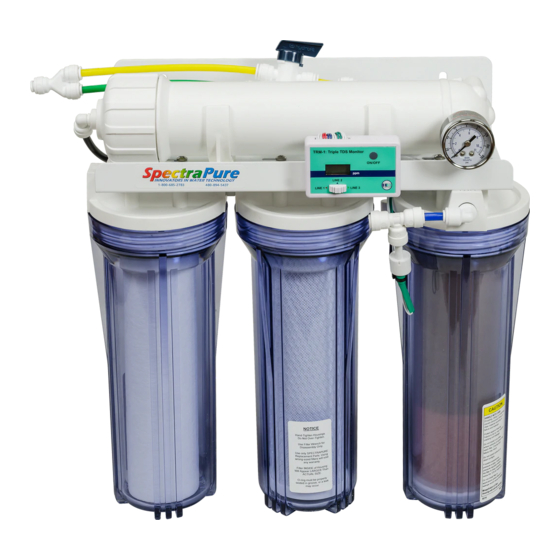

Page 6: Front View Of Cspdi-Rodi-90 System
SpectraPure ® SINGLE MEMBRANE RO/DI SYSTEM CSPDI - 90 GPD: BE SURE TO CONNECT BLACK TUBING AND ELBOW TO END OF MEMBRANE HOUSING SpectraSelectPlus RO Membrane YELLOW 1/4" (inside Housing) Waste Water Tubing Three-Probe TDS Meter Attaches Line 1 = Tap Water... -
Page 7: Front View Of Cspdi-Rodi-180 System
SpectraPure ® DUAL MEMBRANE RO/DI SYSTEM CSPDI - 180: BE SURE TO CONNECT BLACK TUBING AND ELBOW TO END OF MEMBRANE HOUSING 2 SpectraSelectPlus Three-Probe TDS Meter YELLOW Membranes Line 1 = Tap Water 1/4" (inside Housings) Line 2 = RO Water... -
Page 8: Typical Rear Views For -Mf Systems
SpectraPure ® REAR VIEWS for - MF SYSTEMS: Flow Restrictor in Filtered Flush Valve Red (or Green)Tubing Input (Closed Position) Water Open to Flush This End has Waste Port Small “Plug” Water Port Waste Water Yellow Product Drain Auto Shut-Off Valve... -
Page 9: Typical Rear View For -Af Systems
SpectraPure ® SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 sales@spectrapure.com www.spectrapure.com... -
Page 10: Working With Push Fittings
SpectraPure ® WORKING WITH PUSH FITTINGS: Push fittings are very reliable and convenient tubing connectors. To remove the tubing from its push fitting: Firmly depress and hold the push fitting collar down with your thumbnail. 2. While the push fitting collar is depressed, pull the tubing straight out of the push fitting. -
Page 11: System Installation & Initialization
14. Check the system to ensure that all fittings are tight and leak-free before leaving the system unattended. (If anything is leaking, contact SpectraPure for assistance.) 15. Run both the blue and yellow tubings down the drain for an hour, then reinstall the DI cartridge. -
Page 12: Install The Float Valve
SpectraPure ® 16. Upon startup, air may be trapped in the DI cartridge (housing may not appear full), this is a normal condition and it will not affect the operation of the DI section. However, when you later install the Float Valve for... -
Page 13: Float Valve Illustration
SpectraPure ® FLOAT VALVE ILLUSTRATION: FLOW RESTRICTORS AND TEST STRIPS: These systems are supplied with TWO Flow Restrictors (FR) - RED and GREEN. See Pages 8 and 9. The RED FR (pre-installed) produces a preset waste -to-product ratio of 3:1 and the optional GREEN FR has a 2:1 ratio. -
Page 14: How It Works
SpectraPure ® HOW IT WORKS: The increasing water level raises the Float Valve in the reservoir and stops the flow of water. Pressure builds up in the product line and ASO Valve until the ASO Valve shuts off the flow of waste water to drain. This “OFF”... -
Page 15: The Auto Flush Valve (-Af Versions)
SpectraPure ® THE AUTOMATIC FLUSH VALVE (-AF Versions): The Automatic Flush Valve is located in parallel with the flow restrictor and, when electrically activated, provides a high flow bypass of waste water used to purge concentrated brine from the membrane housing and rapidly flush any particulates from the membrane surface. -
Page 16: Sediment Prefilter Replacement
SpectraPure ® SEDIMENT PREFILTER REPLACEMENT: A Sediment Filter will usually last approx. 4-6 months, depending on the quality of the tap water and quantity of water being produced. (The life span of the filter is determined by the turbidity, iron content, organics, and total particulate volume in your water source). -
Page 17: Carbon Block Filter Replacement
SpectraPure ® CARBON BLOCK FILTER REPLACEMENT: A Carbon Filter will usually lasts 4-6 months ,depending on the chlorine (or chloramine) content of your tap water and quantity of water being produced. The best way to determine when your Carbon Block Prefilter needs replacement is to use a chlorine test kit. -
Page 18: Di Cartridge Replacement
SpectraPure ® DI CARTRIDGE REPLACEMENT: When the reading on the TDS meter (set to “Line 3”) displays “001”, it is time to replace the SilicaBuster™ Extended Life Super DI cartridge. Part number DI-SB -10HC. 2. Turn the system off and remove the cartridge housing by rotating it to the left until it is free of the threaded head on the bracket. -
Page 19: Ro Membrane Replacement
SpectraPure ® RO MEMBRANE REPLACEMENT: 1. Turn off the water supply to the RO system. Place the system where the membrane housing(s) can be easily accessed. 2. Remove the black tubing from the membrane feed push fitting by depressing the collar on the fitting with your thumb and pulling the tubing from the push fitting. -
Page 20: Ro Membrane Diagnostics
SpectraPure ® RO MEMBRANE DIAGNOSTICS: In order to accurately determine the condition and performance of the RO Membrane, a conductivity tester capable of reading the tap water conductivity (or TDS) and the product water conductivity (or TDS) would typically be required. The CSPDI system comes equipped with such a device. -
Page 21: Membrane Production Calculation
SpectraPure ® Rejection of the RO Membrane Calculation Example 1. Tap water TDS = 150 ppm (X) 2. RO water TDS = 15 ppm (Y) 3. X - Y = 135 ppm 4. (X - Y) ÷ X = 135 ÷ 150 = 0.90 5. -
Page 22: Tips For Long Membrane Life
SpectraPure ® Temperature Correction Factor Table (TCF) °F /°C °F /°C °F /°C 41.0 /5 0.521 59.0 /15 0.730 77.0 /25 1.000 42.8 /6 0.540 60.8 /16 0.754 78.8 /26 1.031 44.6 /7 0.560 62.6 /17 0.779 80.6 /27 1.063 46.4 /8... -
Page 23: Troubleshooting Guide
SpectraPure ® TROUBLESHOOTING GUIDE: Low production rate: a. plugged prefilters. i. Replace prefilters. b. low water temperature ii. Warm feed water OR use higher GPD membrane. c. low line pressure. iii. Use booster pump OR use higher GPD membrane. d. high TDS content. -
Page 24: Terms And Conditions
10 days. Returns other than warranty claims may be subject to 20% restocking fee. 8. SpectraPure, Inc. cannot be held liable for damage or loss to a shipment by a freight carrier. Check shipment for damage before acceptance or note on freight bill subject to inspection for concealed damage. -
Page 25: Three Year Limited Warranty
® and workmanship for a period of three years from the date of receipt. SpectraPure’s liability under this warranty shall be limited to repairing or replacing at SpectraPure’s option, without charge, F.O.B. -
Page 26: Optional Accessories
SpectraPure ® OPTIONAL ACCESSORIES: PIGGYBACK UPGRADE KITS (PBK-90), - This add-on kit contains everything you need to double the output (gallons per day) of your existing 90 GPD RO or RODI System. All necessary fittings, tubing, adapters and flow restrictors are included. -
Page 27: Notes
SpectraPure ® NOTES SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 sales@spectrapure.com www.spectrapure.com... -
Page 28: Replacement Parts
TK-CL-10TABS 10 Replacement Tabs for Chlorine Test Kit BPHF-MF-115 Booster Pump Kit for -MF Systems BPHF-AF-115 Booster Pump Kit for -AF Systems Warning: SpectraPure does not recommend drinking deionized water. SpectraPure Inc. ® 480.894.5437 Call us toll-free 1.800.685.2783 2167 East Fifth St, Tempe, Arizona 85281...
