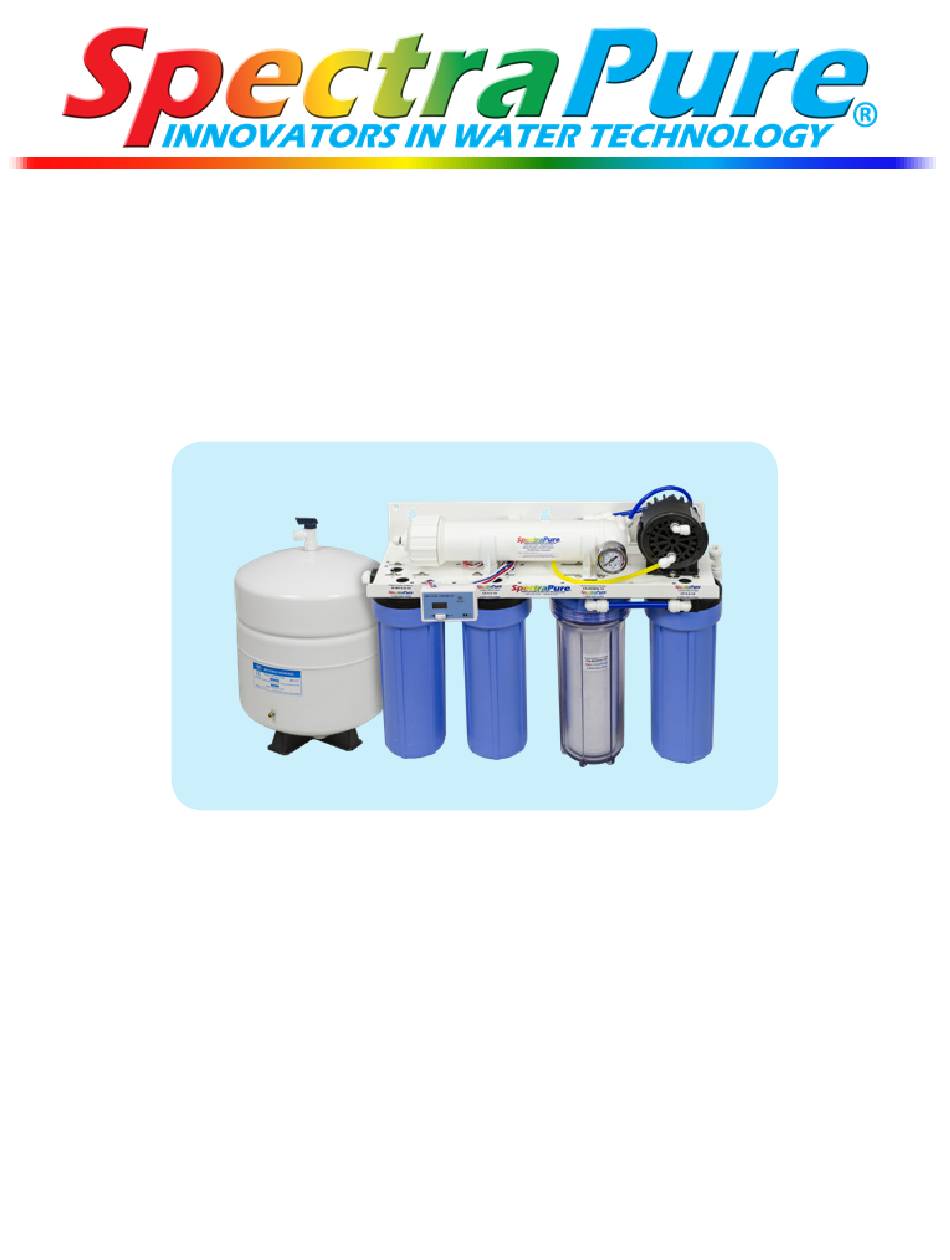

- Page 1 Coffee Lovers ™ System with our patented Dual-Pass technology U.S. Patent No: 7,303,666 CLS-90 OPERATIONS MANUAL RO Drinking Water System for Coffee Lovers 09-24-2019...
-
Page 2: Table Of Contents
Thank You for your purchase of a SpectraPure System. With proper installation and maintenance, this system ® will provide you with high quality water for years to come. All SpectraPure ® products are rigorously tested by us for safety and reliability. If you have any questions or concerns, please contact our customer service department at 1.800.685.2783 or refer to our online troubleshooting at www.spectrapure.com. -
Page 3: System Description
Permeate Pump — Most ordinary RO drinking water systems needlessly waste huge quantities of water. SpectraPure’s drinking water systems with Permeate Pump provide a solution. The Permeate Pump can reduce waste water more than 300% compared to conventional RO drinking water systems. Additional advantages include longer filter and membrane life, greatly improved water quality, tank refills in half the time, greater tank holding capacity, and extended low line pressure operation. -
Page 4: Ro Feed Water Requirements
PreFilter Stage 4 Stage 5 Stage 2 IF ANY OF THE ITEMS LISTED ABOVE ARE MISSING PLEASE CONTACT SPECTRAPURE PRIOR TO INSTALLATION. ALL RETURNS WITHOUT RMA# WILL BE REFUSED. CLAIMS MUST BE WITHIN 10 DAYS FROM RECEIPT. SpectraPure Inc. ®... -
Page 5: Preparation
DRILL HOLE FOR FAUCET IN A PORCELAIN SINK NOTE: Porcelain sink material is extremely hard and can crack or chip quite easily. To avoid this, use extreme caution when drilling. A carbide tipped masonry bit is recommended. SpectraPure accepts no responsibility for ®... -
Page 6: Feed Supply Valve Installation
SpectraPure ® FEED SUPPLY VALVE INSTALLATION STEP 1. Follow the cold water line from shutoff valve to the existing faucet and unscrew the threaded connection. STEP 2. Insert feed supply valve between cold water line and existing connection. STEP 3. Follow the assembly sequence shown for attaching valve to the existing cold water line. -
Page 7: Procedure For Measuring Waste To Product Water Ratio
Membrane Warranty. In order to maximize the life of your SpectraPure RO Membrane, you may need to adjust the ratio of the concentrate to purified water. If not enough concentrate is allowed to flow past the membrane during operation, the impurities will precipitate out on the membrane surface, clogging the RO Membrane. -
Page 8: Flow Restrictor Removal, Adjustment And Replacement
SpectraPure ® FLOW RESTRICTOR REMOVAL, ADJUSTMENT AND REPLACEMENT 1. Locate the yellow concentrate tubing. Remove the tubing from its push fitting at the membrane as follows: a.) Firmly depress and hold the push fitting collar down with your thumbnail. b.) While the push fitting collar is depressed, pull the tubing straight out of the push fitting. Once the tubing is removed, release the collar. -
Page 9: Flow Ratio Chart
SpectraPure ® Flow Restrictor Chart FR-90 (YELLOW or WHITE) PRODUCT RATE CUT TO LENGTH ml/min 10.2 12.7 15.2 17.8 20.3 22.9 25.4 27.9 30.5 33.0 35.6 38.1 40.6 FLOW RESTRICTOR YELLOW TUBING Flow Restrictor Assembly SpectraPure Inc. ® 480.894.5437 Call us toll-free 1.800.685.2783... -
Page 10: Air Gap Faucet Installation
SpectraPure ® AIR GAP FAUCET INSTALLATION A. Place the chrome counter plate and rubber washer over the threaded shaft and barbed nipples on the faucet (Refer to Figure 3 below). B. Pass the Blue 3/8" tubing, the Yellow 1/4" tubing, and the Black 3/8" tubing up through the drilled countertop hole and temporarily secure them so they don’t fall back through the hole. -
Page 11: Drain Saddle Installation
SpectraPure ® DRAIN SADDLE INSTALLATION 1. Refer to Figure 7 and determine the location for the drain saddle assembly and drain hole. It must be located above the “P” trap (“U” shaped bend in drain pipe) on the sink side of the drain pipe. -
Page 12: Installing Ball Valve On Tank
SpectraPure ® INSTALLING BALL VALVE ON TANK STEP 1. If there is not Teflon tape applied to the nipple on the tank, wrap (7-12 turns) around the pipe threads (MPT) on the Stainless Steel fitting. STEP 2. Thread the Ball Valve (supplied in the parts bag) onto the stainless steel nipple on top of the tank. -
Page 13: Ice Maker Hookup (Optional)
SpectraPure ® ICE MAKER HOOKUP (OPTIONAL) 1. Turn off feed supply valve and the ball valve on tank. 2. Locate the Blue tube that leads to the faucet. 3. Cut the tube and reconnect the cut ends with a 3/8" x 3/8" x 1/4" Tee. -
Page 14: System Schematic
SpectraPure ® 1- Membrane Housing 11-3/8" Union “Y” Connectors 2- Reverse Osmosis Membrane 12- Flow Restrictor (inside waste water line) 3 - Permeate Pump 13 -1/4" x 1/4" Elbow Fitting (DM-40-4-4) for Filter Housings 4- Automatic ShutOff Valve for P.P. -
Page 15: Maintenance Procedures
SpectraPure ® MAINTENANCE PROCEDURES Prefilter Replacement For maximum contaminant removal and long membrane life, the sediment and carbon prefilters should be changed at 6-month intervals. If your water contains a great deal of sediment or chlorine, the prefilters might have to be changed at more frequent intervals to maintain an adequate production rate. -
Page 16: Post Filter Replacement
SpectraPure ® MAINTENANCE PROCEDURES (continued) Post Filter Replacement Maintenance Regime: At least once every 12 months or whenever odor or bad taste occurs. Materials Needed: Replacement Carbon Post Filter (CF-0.5-10) Procedure: 1. Turn off feed supply valve and tank shutoff valve. -
Page 17: Sanitizing The System
SpectraPure ® MAINTENANCE PROCEDURES (continued) SANITIZING THE DRINKING WATER SYSTEMS Sanitizing is recommended at least once every year or if water smells or tastes bad, even after a post carbon filter replacement. A convenient time for sanitization is during a filter changeout. IT IS IMPORTANT THAT YOU HAVE CLEAN HANDS WHILE HANDLING INNER PARTS OF THE SYSTEM. -
Page 18: Calculating Expected Output From The Membrane
SpectraPure ® CALCULATING EXPECTED OUTPUT FROM THE MEMBRANE Membranes produce the rated gallons per day (GPD) at 60 psi (4.1 bars) operating pressure, 77°F (25°C) operating temperature and 500 ppm total dissolved solids. Membrane output gallons per day (GPD) depends on operating pressure, water temperature and the ppm TDS in the feed water. -
Page 19: Testing The Quality Of The Membrane
SpectraPure ® TESTING THE QUALITY OF THE MEMBRANE The performance of a RO membrane is measured in terms of its rejection characteristics. Note:Test the quality of the membrane once every 6 months. Method 1: Using a test kit The rejection of the membrane is measured using the following procedure: 1. -
Page 20: Troubleshooting Guide
SpectraPure ® TROUBLESHOOTING GUIDE FOR COFFEE LOVERS SYSTEM Problem Cause Corrective Action Low production rate. a. Plugged prefilters. i. Replace prefilters. b. Low water temperature. ii. Use higher GPD membrane. c. Low water pressure (<40 psi). iii. Use booster pump OR use higher GPD membrane. - Page 21 SpectraPure ® TROUBLESHOOTING GUIDE FOR COFFEE LOVERS SYSTEM (continued) Problem Cause Corrective Action Pressure gauge does not register anything. a. Plugged prefilters. i. Replace prefilters b. Missing flow restrictor. ii. Put flow restrictor in the yellow brine line. c. Pressure gauge screwed in too iii.
- Page 22 SpectraPure ® TROUBLESHOOTING GUIDE FOR COFFEE LOVERS SYSTEM (continued) Problem Cause Corrective Action Leak under the faucet handle. i. Purchase a faucet repair kit. Leak around the base of the spout. a. Displaced O-rings. i. Pull the faucet spout out. Seat O-rings in place.
-
Page 23: Warranty Information
US dollars. Claims for error in quantity or condition must be made within 10 days of receipt of material. SpectraPure, Inc. will not be responsible for any claimed shortages not reported within 10 days. Returns other than warranty claims may be subject to 20% restocking fee. -
Page 24: Replacement And Optional Parts
SpectraPure ® REPLACEMENT PARTS Part No. Replacement Parts Description SF-MT-0.5 -10 Sediment Filter 0.5 Micron Sediment Filter (1 Stage) CF-0.5-10 Carbon Filter 0.5 Micron Carbon Prefilter (2 Stage) MEM-0090 RO Membrane 90 gallon a day Membrane (3 Stage) FR-90 Flow Restrictor...
