High Chloramine Removal
RO/DI System
CR-RODI-90 -10
INSTALLATION AND OPERATING MANUAL
WARNING
Please read carefully before proceeding with installation. Failure
to follow any attached instructions or operating parameter may
lead to the product's failure and possible damage to property.
v2 2015 -10 -15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR-RODI-90-10 and is the answer not in the manual?

Questions and answers

Related Manuals for SpectraPure CR-RODI-90-10

Summary of Contents for SpectraPure CR-RODI-90-10

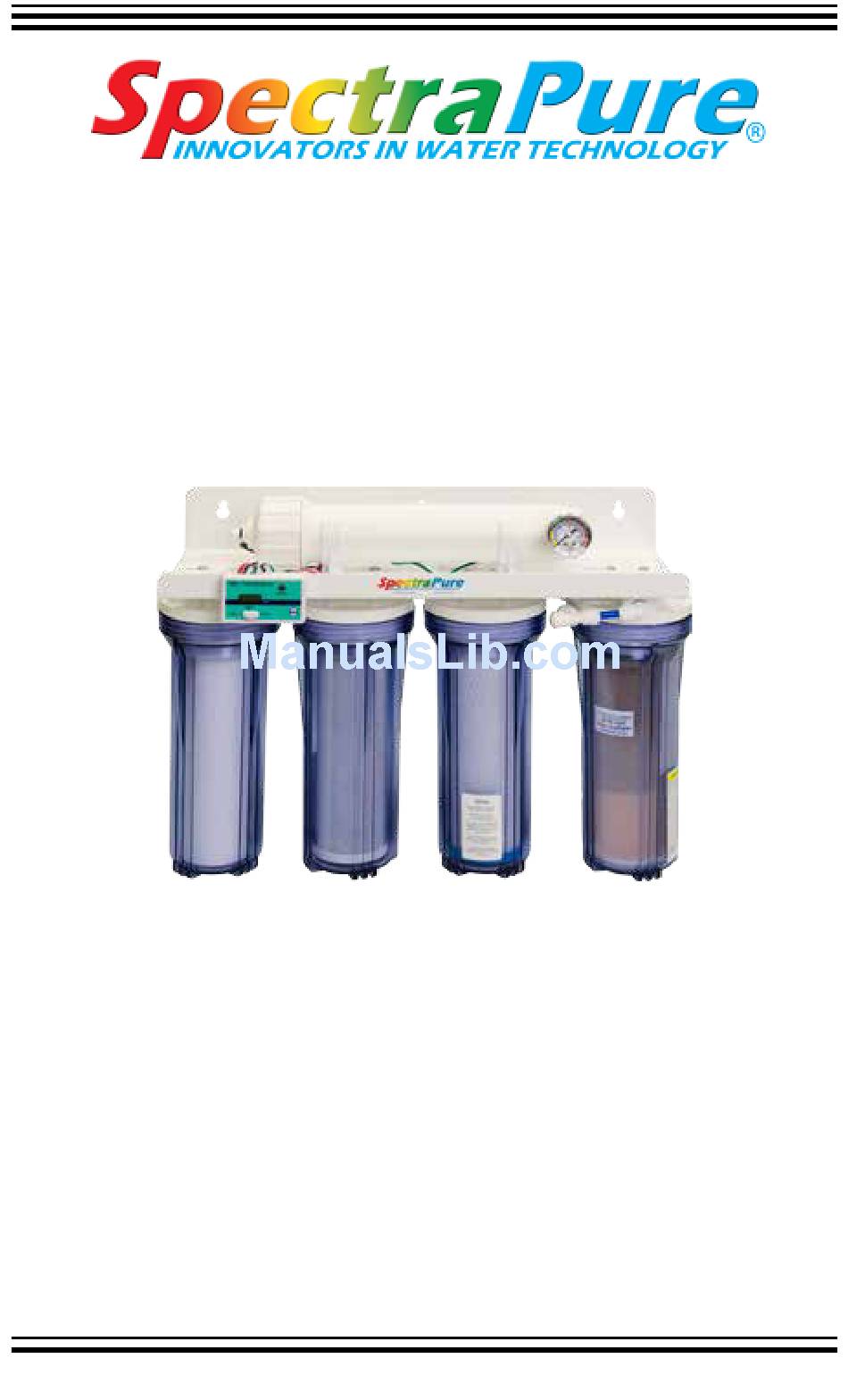

  • Page 1 High Chloramine Removal RO/DI System CR-RODI-90 -10 INSTALLATION AND OPERATING MANUAL WARNING Please read carefully before proceeding with installation. Failure to follow any attached instructions or operating parameter may lead to the product’s failure and possible damage to property. v2 2015 -10 -15...

  • Page 2: Table Of Contents

    ALL RIGHTS R ESERVED No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written permission of SpectraPure Inc. SpectraPure Inc.

  • Page 3: System Specifications

    Concentrate Flow Rate (3:1) 236 ml/min 708 ml/min Reverse Osmosis Membrane Feed Water Requirements: For the 1 year SpectraPure TFC membrane prorated warranty to be honored, the following conditions must be met: Operating Pressure* 40 – 80 psi (2.75 – 5.5 bar) pH Range 3 –...

  • Page 4: System Description

    SpectraPure ® SYSTEM DESCRIPTION: The SpectraPure High Chloramine Removal system is a five -stage reverse osmosis ® deionization system. First, the incoming feed water is passed through a 0.5 micron MicroTec™ sediment prefilter. This filter is required to remove excess turbidity (particulate matter) that may cause the membrane to become fouled.
  • Page 5 Inc. assumes no responsibility for water damage due to leaks. ® It is the user’s responsibility to determine that the system is leak-free. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com...

  • Page 6: Working With Push Fittings

    SpectraPure ® WORKING WITH PUSH FITTINGS: Push fittings are very reliable and convenient tubing connectors. To remove the tubing from its push fitting: Firmly depress and hold the push fitting collar down with your thumbnail. 2. While the push fitting collar is depressed, pull the tubing straight out of the push fitting.

  • Page 7: System Installation And Initialization

    Cut the black tubing in two and reconnect the two cut ends with the ball valve, if desired. (continued on next page) SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com...

  • Page 8: System Installation And Initialization

    20. Check the system to ensure that all fittings are tight and leak-free before leaving the system unattended. (If anything is leaking, contact SpectraPure for assistance.) NOTE: It may take several days of normal operation for the membrane to reach its full production rate.

  • Page 9: Metering And Diagnostics

    SpectraPure ® METERING AND DIAGNOSTICS: This SpectraPure purification system has been fully equipped with sufficient instrumentation to make monitoring and troubleshooting an easy process. The provided pressure gauge is used to determine the tap water pressure and to evaluate the condition of the sediment and carbon prefilters.

  • Page 10: Membrane Output Calculation

    SpectraPure ® TESTING THE QUALITY OF THE MEMBRANE: MEMBRANE OUTPUT CALCULATION Membranes produce the rated gallons per day (GPD) at 60 psi (4.1 bars) operating pressure, 77°F (25°C) operating temperature and 250 ppm total dissolved solids. Membrane output gallons per day (GPD) depends on operating pressure, water temperature and the ppm TDS in the feed water.

  • Page 11: Membrane Rejection Test

    Rejection = [ ( X - Y) ÷ X ] ×100 = 0.953 ×100 = 95.3 Membrane TDS Rejection = 95.3 %: Rejection rates less than 95% may indicate that the membrane should be replaced. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com...

  • Page 12: Sediment Prefilter Replacement

    SpectraPure ® SEDIMENT PREFILTER REPLACEMENT: For maximum contaminant removal and long membrane life, the sediment and carbon prefilters must be changed when a 15-20% drop in pressure is observed OR at least 6 month intervals. If your water contains a great deal of sediment or chlorine, the prefilters may require more frequent changes to maintain adequate production rate and extended membrane life.

  • Page 13: Deionization Cartridge Replacement

    NOTE: Do not use filter wrench to tighten housings. Over-tightening will damage housings and void your warranty. Warning: SpectraPure does not recommend drinking deionized water. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com...
  • Page 14 SpectraPure ® RO MEMBRANE REPLACEMENT: 1. Turn off the water supply to the RO system. Place the system where the membrane housing is easily accessible. 2. Remove the black tubing from the membrane feed push fitting by depressing the collar on the fitting with your thumb and pulling the tubing from the push fitting.

  • Page 15: Ro Membrane Replacement

    14. If the rejection rate is below 96%, run the system for another hour and repeat step 12. 15. The system is now ready for use. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com...

  • Page 16: Membrane Troubleshooting Guide

    SpectraPure ® Membrane Troubleshooting Guide The following chart illustrates the procedure for determination of RO membrane performance. However, the chart represents only rough guidelines for determining performance of RO membrane. Depending on your tap water chemistry, the rejection characteristics of the membrane may vary significantly.

  • Page 17: Tips For Long Membrane Life

    3. Your RO System must be protected from freezing or t e m p e r a t u r e s above 113° F (45°C). 4. MEMBRANE WARNING: All SpectraPure RO membranes must remain moist at all times. Do not open or remove the membrane from its bag until ready for use.

  • Page 18: Troubleshooting Guide For Ro/Di Systems

    SpectraPure ® TROUBLESHOOTING GUIDE FOR RO/DI SYSTEMS: Low production rate: a. plugged prefilters. i. Replace prefilters. b. low water temperature ii. Warm feed water OR use higher GPD membrane. c. low line pressure. iii. Use booster pump OR use higher GPD membrane.

  • Page 19: Warranty Information

    ® and workmanship for a period of three years from the date of receipt. SpectraPure’s liability under this warranty shall be limited to repairing or replacing at SpectraPure’s option, without charge, F.O.B.

  • Page 20: Replacement Parts And Accessories

    Quick Connect Faucet Adapter TK-CL-10-KIT Total Chlorine Test Kit TK-CL-10TABS 10 Replacement Tabs for Chlorine Test Kit Visit our website at www.spectrapure.com for Liquid Level Controllers and other Optional Accessories Warning: SpectraPure does not recommend drinking deionized water. SpectraPure Inc.
