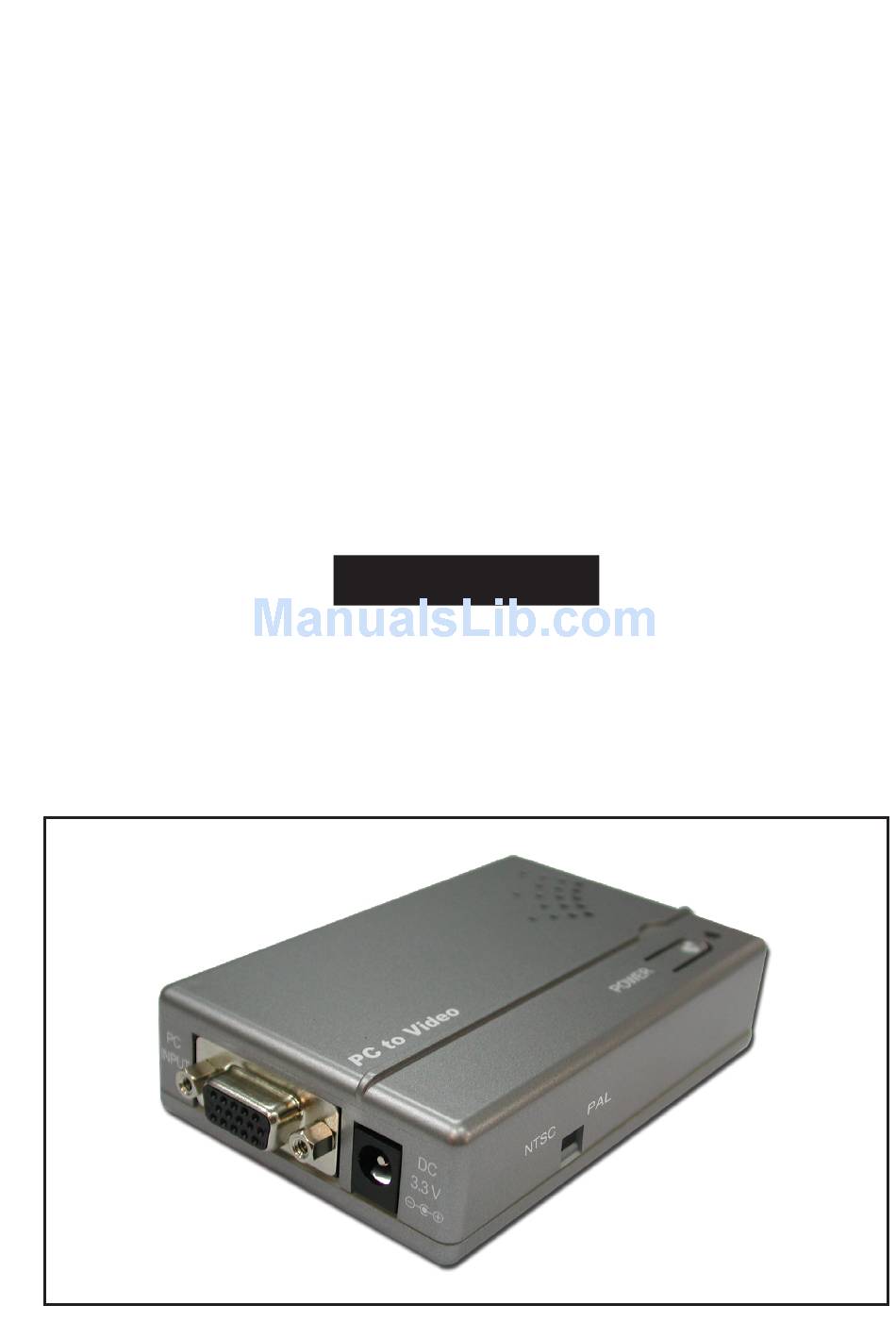

  • Page 1 CPT-385 PC to Video Converter Operation Manual CPT-385...
  • Page 3 TABLE OF CONTENTS 1. Introduction................... 1 2. Main Features................1 3. Hardware Description..............2 3.1 Front Panel................2 3.2 Rear Panel................2 3.3 Side Panel................2 4. Appendix..................3 4.1 Specifications................3 5. Troubleshooting................3...

  • Page 4: Main Features

    1. Introduction The CPT-385 PC to Video scan converter box is designed to convert a variety of computer images, from 640x480 up to 1600x1200, to interlaced NTSC or PAL video. It support output formats including composite and S-Video.
  • Page 5 3. Hardware Description The following sections describe the hardware components of the CPT-385. 3.1. Front Panel PC to Video INPUT 3.3 V POWER . Power: Press to turn power On and Off.   . PC input VGA connector. . DC power supply 3.3V/1A DC.

  • Page 6: Troubleshooting

    Make sure that other electronic devices are working correctly. On/Off LED in red color System may be in standby Press power button to turn mode. on the CPT-385. Check that the A/V No Picture A/V connection may be cables are connected loose. securely.
  • Page 7 2007.8.14 MPM-CPT385...
