SECTION 7—COMPRESSOR
O-ring, Intake Valve Keeper and Valve Keeper Strip
NOTE: For this procedure, refer to FIGURE 7.5.
1. Remove the O-ring, intake valve
flapper and valve keeper strip from the
bottom of the valve plate. Discard all.
2. Clean the bottom of the valve plate
with a clean, soft cloth.
Exhaust Valve Flapper, Valve Restraint and Valve Keeper Strip
NOTE: For this procedure, refer to FIGURE 7.6.
1. Remove the exhaust valve flapper,
valve restraint and valve keeper strip
from the top of the valve plate. Discard
all.
2. Clean the top of the plate with a clean,
soft cloth.
Gasket
NOTE: For this procedure, refer to
FIGURE 7.6.
1. Remove the old gasket from the top of
the valve plate and discard.
2. Clean the valve plate with a clean, soft
cloth.
Perfecto ™
2

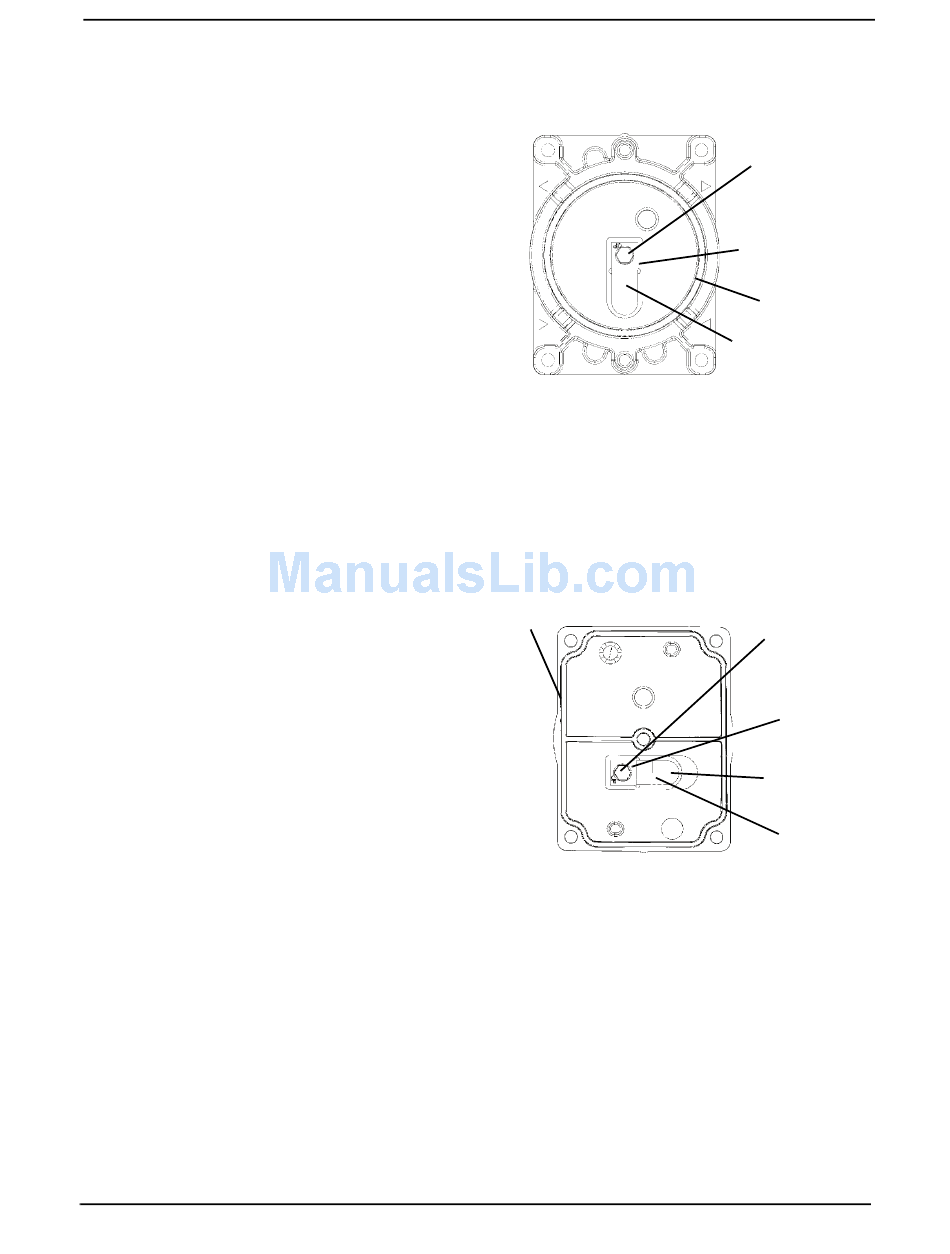

FIGURE 7.5 Removing Compressor and
Compressor Heads - Rebuilding the
Compressor - O-ring, Intake Valve Keeper
and Valve Keeper Strip
Gasket
FIGURE 7.6 Removing Compressor and
Compressor Heads - Rebuilding the
Compressor - Exhaust Valve Flapper, Valve
Restraint and Valve Keeper Strip
36
Valve Flapper
Screw
Valve
Keeper Strip
O-Ring
Intake Valve
Flapper
Valve Flapper
Screw
Valve
Keeper Strip
Exhaust Valve
Flapper
Valve
Restraint
