SECTION 5—CABINET
SECTION 5—CABINET

Removing Cabinet

To prevent electrical shock, ALWAYS disconnect concentrator from electrical outlet
before servicing.
NOTE: For this procedure, refer to FIGURE 5.1.
1. Unplug unit.
2. Remove the four mounting screws that secure cabinet assembly to the base assembly.
3. Lift the cabinet straight up.
NOTE: When required, vacuum inside of the cabinet and exposed foam insulation.
4. To re-install cabinet, reverse STEPS 2-3.
L
Mounting
Screws
Perfecto ™
2
DANGER

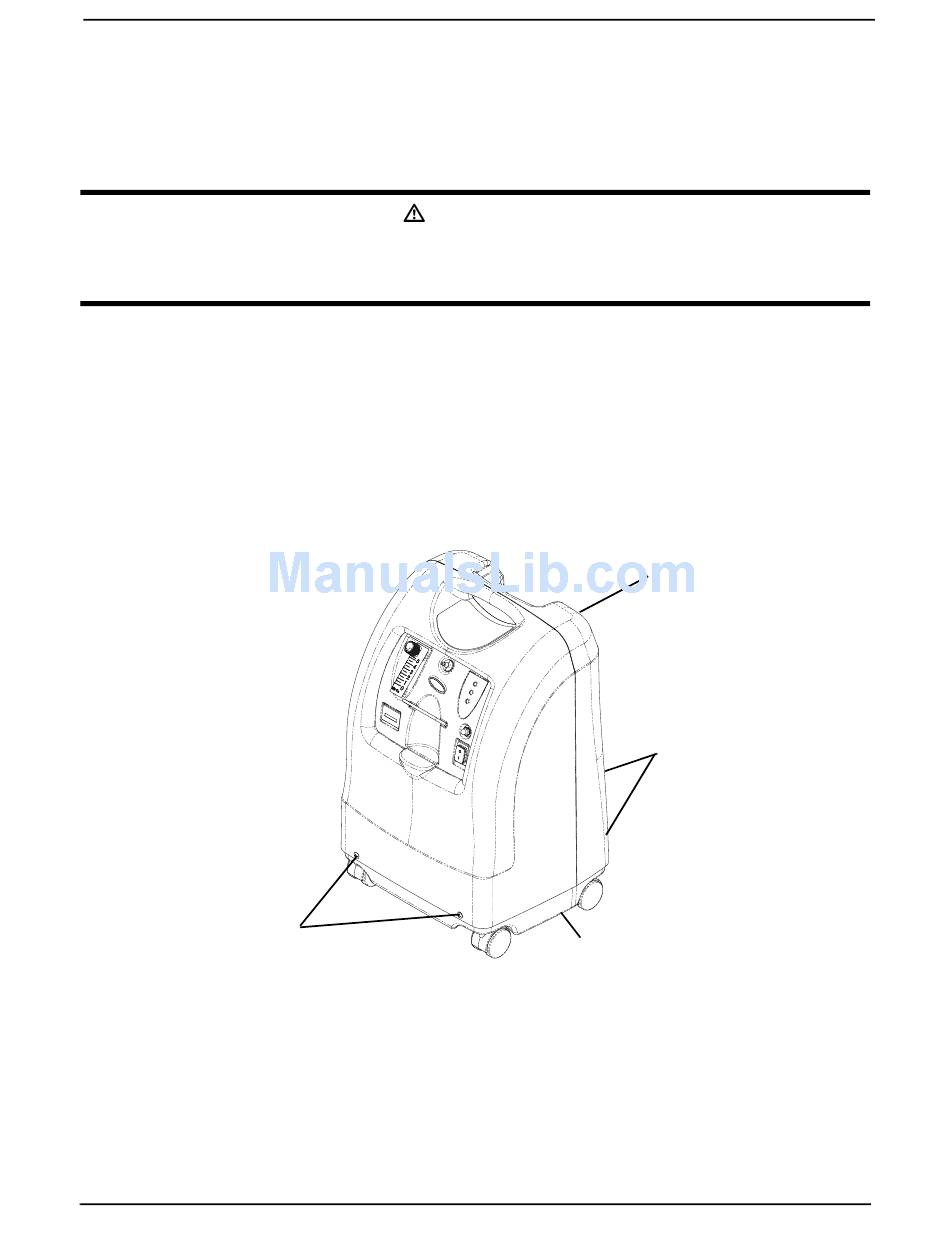

FIGURE 5.1 Removing Cabinet
22
Cabinet Assembly
Mounting
Screws
Base Assembly
Part No 1154245
