Invacare Perfecto2IRC5PO2AW Service Manual page 53

11. Remove the On/Off switch. Refer to Replacing On/Off Switch on page 61
12. Remove the circuit breaker by twisting the locknut on the outside of the control panel.
13. Discard existing control panel.
14. Install new control panel by reversing STEPS 3-12.
15. Run unit and check for leaks at pressure sensor tubing on product tank cap. Refer to
Leak Test on page 75
16. Reinstall cabinet. Refer to Removing Cabinet on page 22.
DETAIL "A"
Control
Panel
Tie
Wrap
Control Panel
Circuit Breaker
(STEP 9)
On/Off Switch
(STEP 9)
Part No 1154245
Tie
Wrap
P.C. Board

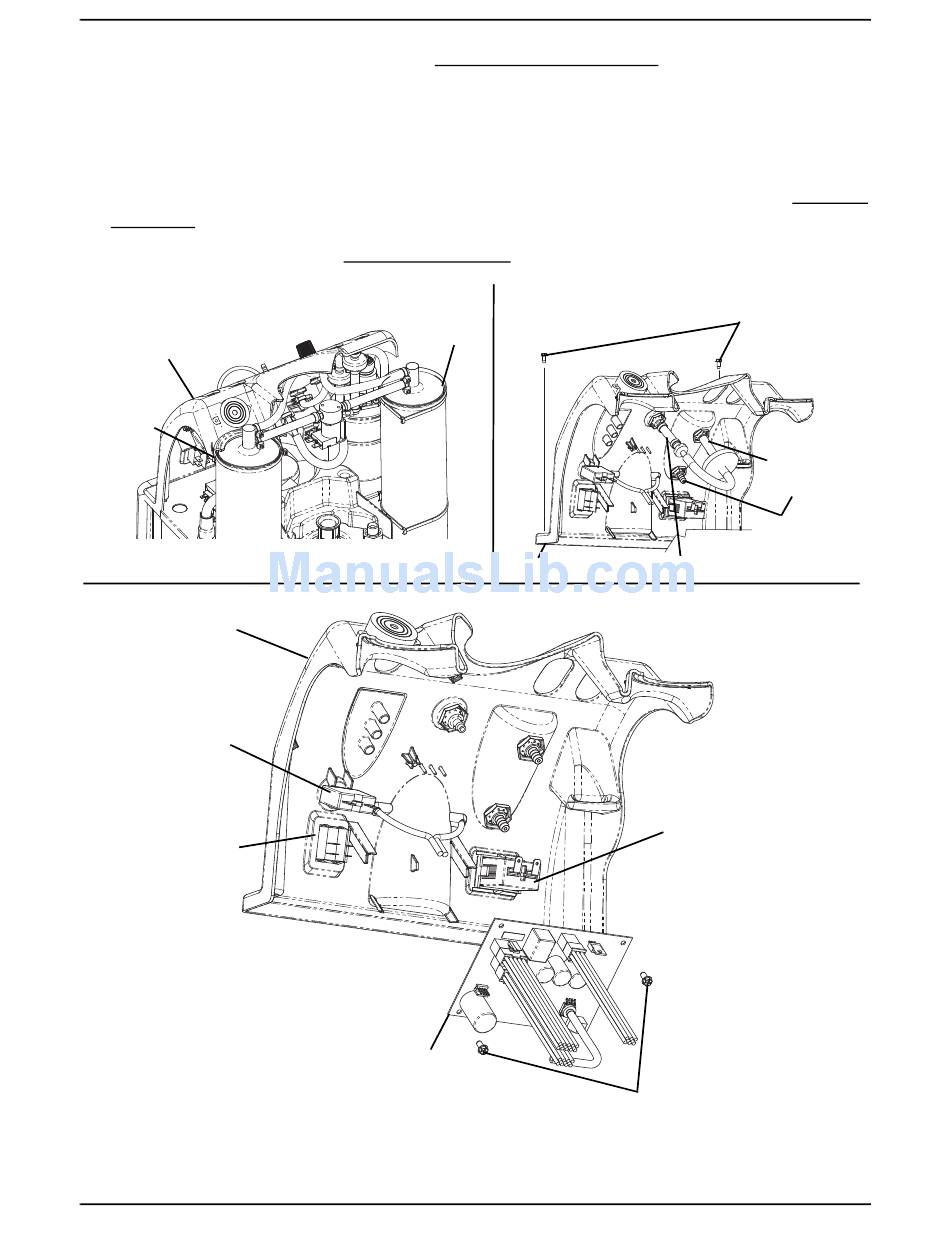

FIGURE 13.1 Removing Control Panel
53
SECTION 13—CONTROL PANEL
DETAIL "B"
Control Panel ¼-inch Tubing (STEP 7)
Hour Meter
(STEP 9)
Mounting
Screws
Mounting Screws
(STEP 5)
¼-inch
Tubing
(STEP 6)
Perfecto ™
2
