This manual MUST be given to the user of the product.
BEFORE using this product, read this manual and save for future reference.

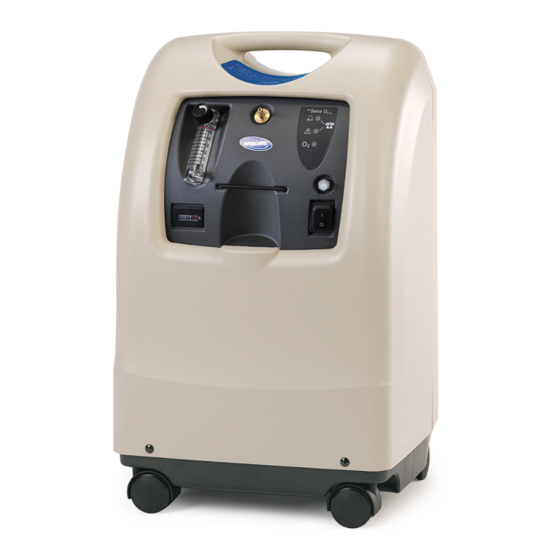

Invacare® Perfecto
IRC5PO2AW, IRC5PO2VAW
en HomeFill® System Compatible Oxygen
Concentrators with SensO
User Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
cs
HomeFill® systém kompatibilní
koncentrátory kyslíku s SensO
Návod k obsluze . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
fr
Système HomeFill® compatibles
concentrateurs d'oxygène avec SensO
Manuel d'utilisation . . . . . . . . . . . . . . . . . . . . . . . . . . 67
de HomeFill® systemfähig
Sauerstoffkonzentratoren mit SensO
Gebrauchsanweisung. . . . . . . . . . . . . . . . . . . . . . . . .101
it
Sistema HomeFill® concentratori di
ossigeno compatibili con SensO
Manuale d'uso. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135
pl
Systemowe HomeFill® Kompatybilne z
SensO
koncentratorów tlenu
2
Instrukcja obsługi . . . . . . . . . . . . . . . . . . . . . . . . . . . .167
TM
Series
2
2
2
2
2
2
Advertisement
Table of Contents
Related Manuals for Invacare Perfecto2 HomeFill IRC5PO2AW
Summary of Contents for Invacare Perfecto2 HomeFill IRC5PO2AW
- Page 1 Invacare® Perfecto Series IRC5PO2AW, IRC5PO2VAW en HomeFill® System Compatible Oxygen Concentrators with SensO User Manual ....... . 3 HomeFill®...
- Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
-
Page 3: Table Of Contents
Contents 6.3.4 SensO Oxygen Purity Indicator ....22 6.3.5 Initial Startup of the Concentrator ....22 6.3.6 Explanation of Oxygen Purity Indicator Lights . -
Page 4: General
Invacare® Perfecto₂™Series Symbols in Documentation 1 General Read manual 1.1 Symbols Signal words are used in this manual and apply to hazards or unsafe No Smoking practices which could result in personal injury or property damage. See the information below for definitions of the signal words. - Page 5 General Indicators Call supplier Symbol Purity Indicator Lights (LED) This product complies with Directive SYSTEM OKAY GREEN Indicator Light 93/42/EEC concerning medical devices. over 85% The launch date of this product is stated in the CE declaration of conformity. between 73% to YELLOW Indicator Light A.
-
Page 6: Intended Use
DANGER! Risk of Injury or Death Your oxygen concentrator is intended for individual use by patients While Invacare strives to produce the best oxygen with respiratory disorders who require supplemental oxygen. The concentrator in the market today, this oxygen device is not intended to sustain or support life. The concentrator is concentrator can fail to produce oxygen due to power intended for use within a home or institutional environment. -
Page 7: Description
Refer to typical product parameters. Service information will be available upon request to qualified technical personnel only. 1.4 Contraindications Invacare is not aware of any contraindications for the Invacare Perfecto Concentrator Series. 1195656-A... -
Page 8: Safety
Invacare® Perfecto₂™Series 2 Safety Phthalate label is located on the base. 2.1 Label Locations Serial number label is located on the resonator intake assembly. Specification Label is located on the back of the concentrator at the base. EU Representative label is located on the base. -
Page 9: General Guidelines
In case of damage, or if the product is not – Keep the oxygen tubing, cord, and concentrator out working correctly, contact a technician or Invacare from under such items as blankets, bed coverings, for repair. chair cushions, clothing, and away from heated or hot –... - Page 10 – Close supervision is necessary when the nasal cannula accessories. Accessories designed by other is used by or near children and/or disabled persons. manufacturers have not been tested by Invacare and are not recommended for use with Invacare products. WARNING! –...
- Page 11 Risk of Injury or Damage this manual. To prevent injury or damage from cord misuse: – Users should contact your dealer or Invacare for – DO NOT move or relocate concentrator by pulling service. on the cord.
-
Page 12: Radio Frequency Interference
Invacare® Perfecto₂™Series 2.3 Radio Frequency Interference WARNING! Risk of Injury or Damage To reduce the risk of injury or product damage from interference with wireless equipment: – Keep concentrator at least 9.8 ft (3.0 m) away from wireless communication equipment such as wireless home network devices, mobile phones, cordless phones and base stations, walkie-talkies, etc. -
Page 13: Components
Components 3 Components Oxygen Outlet Flowmeter 3.1 Component Identification Elapsed Time Meter Oxygen Purity Indicator Lights/Fault and Power Indicator Lights Circuit Breaker Power Switch 1195656-A... - Page 14 Refer to the HomeFill user manual for connection and operating instructions. When not in use, the plug provided with the concentrator should be inserted into the outlet fitting. For more information about the HomeFill, contact your Invacare dealer. 1195656-A...
-
Page 15: Accessories
The following optional accessories and replacement parts (listed below) are also available: • Standard Adult Nasal Cannula, 2.1 m (7 feet) - M3120 • Standard Humidifier - Invacare Part #1155719 • PreciseRX™ Pediatric Humidifier/Flowmeter Accessory - IRCPF16AW • HomeFill home oxygen compressor - IOH200AW •... -
Page 16: Setup
Invacare® Perfecto₂™Series 5 Setup Check for any obvious damage to the carton or its contents. If damage is evident, notify the carrier, or your local dealer. Remove all loose packing from the carton. 5.1 Unpacking Carefully remove all the components from the carton. -
Page 17: Usage
Usage 6.2 Select a Location 6 Usage WARNING! 6.1 Introduction Risk of Injury or Damage To avoid injury or damage from airborne pollutants Your oxygen concentrator is intended for individual use indoors. and/or fumes and for optimal performance: It is an electronically operated device that separates oxygen from –... -
Page 18: Setting Up The Concentrator
Invacare® Perfecto₂™Series 6.3.1 Setting Up the Humidifier You may select a room in your house where using your oxygen concentrator would be most convenient. Your concentrator can be WARNING! easily rolled from room to room on its casters. Risk of Injury or Damage... - Page 19 Usage WARNING! Risk of Injury or Damage Failure to properly install the humidifier bottle or other accessories to the concentrator will impact the flow of oxygen. – To check for proper operation of the oxygen concentrator and accessories, place the end of the nasal cannula under the surface of a half-full cup of water and look for the bubbles.
- Page 20 Invacare® Perfecto₂™Series Replace the filter access door and install the air scoop F onto the filter access door by inserting the six tabs G on the air scoop into the six slots D on the sides of the filter access door.
-
Page 21: Turning The Concentrator On
Usage 6.3.2 Turning the Concentrator On Select the location for the humidifier bottle/adapter assembly: • When placing the humidifier bottle in the compartment on the concentrator, attach the humidifier bottle/adapter tube I to the oxygen outlet connector J on the concentrator. •... -
Page 22: Flowrate
Invacare® Perfecto₂™Series 6.3.3 Flowrate Turn the flowrate knob A to the setting prescribed by your physician or therapist. WARNING! To properly read the flowmeter B, locate the Risk of Injury prescribed flowrate line on the flowmeter. Next, turn To avoid injury from excess oxygen or a deficit of the flow knob until the ball Crises to the line. -
Page 23: Explanation Of Oxygen Purity Indicator Lights
Usage be operating normally and will control the indicator lights depending Light Symbol Explanation on oxygen concentration values. GREEN light Normal Operation 6.3.6 Explanation of Oxygen Purity Indicator Lights Immediately call supplier. You may continue to use the concentrator unless YELLOW light instructed otherwise by your supplier. -
Page 24: Maintenance
– DO NOT clean the cabinet or filter with alcohol DANGER! and alcohol based products (isopropyl alcohol), Risk of Injury or Damage concentrated chlorine-based products (ethylene Invacare oxygen concentrators are specifically designed chloride), and oil-based products (Pine-Sol , Lestoil ® ®... -
Page 25: Cleaning The Cabinet Filter
Maintenance 7.2 Cleaning the Cabinet Filter Remove the filter and clean as needed. Environmental conditions that may require more CAUTION! frequent inspection and cleaning of the filter include, but Risk of damage are not limited to: high dust, air pollutants, etc. To avoid damage from clogging: –... -
Page 26: Humidifier Cleaning And Thermic Disinfection
Invacare® Perfecto₂™Series 7.3 Humidifier Cleaning and Thermic Dispose of and replace all patient side accessories not suitable Disinfection for multiple patient use, including but not limited to: Clean and disinfect the oxygen humidifier daily to reduce • Nasal Cannula and Tubing limestone deposits and eliminate possible bacterial •... -
Page 27: Preventive Maintenance Checklist
Maintenance 7.5 Preventive Maintenance Checklist Model No: Serial No: ON EACH INSPECTION Record Date of Service Record Elapsed Hours on Hour Meter Clean Cabinet Filter(s) Check Prescribed L/min. Flow Rate DURING PREVENTIVE MAINTENANCE SCHEDULE, OR BETWEEN PATIENTS UNITS WITH SensO —... -
Page 28: After Use
(e.g. WEEE and RoHS directives). We only use REACH compliant materials and components. 8.2 Wear and Tear Invacare reserves the right to ask for any item back that has an alleged defect in workmanship. See Warranty that shipped with the product for specific warranty information. -
Page 29: Troubleshooting
Troubleshooting 9 Troubleshooting 9.1 Troubleshooting SYMPTOM PROBABLE CAUSE SOLUTION Alarm: Main Power Loss: Short Beeps, long pause Power cord not plugged in. Insert plug into outlet. No power at outlet. Inspect house circuit breakers or fuses. If problem Concentrator not operating, Tripped circuit breaker. - Page 30 Invacare® Perfecto₂™Series SYMPTOM PROBABLE CAUSE SOLUTION Alarm: System Failure: YELLOW or RED light Low oxygen purity.* Clean or Replace filters. Illuminated. Kinked or blocked tubing, cannula or humidifier.* Inspect for kinks or blockages. Correct, clean or Flowmeter set at 0.5 L/min*.
-
Page 31: Technical Data
Maximum Outlet Pressure: 34.5 kPa ± 3.45 kPa (5 psi ± 0.5 psi) Low Flow Alarm: 0.5 to 5 L/min (maximum). For flowrates less than 1 L/min, we recommend the use of the Invacare Pediatric Flowmeter Accessory (IRCPF16AW). Potential Obstruction Alert: 0 L/min to 0.5 L/min... - Page 32 Invacare® Perfecto₂™Series Change in maximum recommended 0.7 L/min flow when back pressure of 7kPa is applied: Filters: Cabinet, Outlet HEPA and Compressor Inlet Safety System: Current overload or line surge shutdown High temperature compressor shutdown High Pressure Alarm w/compressor shutdown...
- Page 33 Technical data Standards and Regulatory Listing: IEC/EN60601-1, A1, A2 IEC/EN60601-1-2 IEC/EN61000-3-2 IEC/EN61000-3-3, ISO8359 MDD 93/42/EEC, Annex I and IX CE marked model IRC5PO2AW/IRC5PO2VAW Electrical: No extension cords Placement: No closer than 30,5 cm (12 in) from any wall, furniture, draperies, or furniture to assure sufficient air flow Avoid deep pile carpets and heaters, radiators or hot air registers Floor location only...
- Page 34 Notes...
