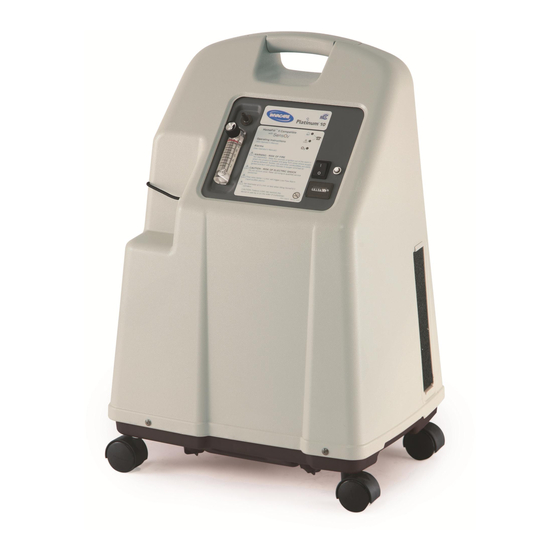

Invacare Platinum IRC5LXAW Operator's Manual

Oxygen concentrators standard, with/senso2 and homefill

Hide thumbs Also See for Platinum IRC5LXAW:

User manual (248 pages)

Service manual (100 pages)

User manual (192 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the Platinum IRC5LXAW and is the answer not in the manual?

Questions and answers

Summary of Contents for Invacare Platinum IRC5LXAW

Page 1 Model IRC5LXO2AW Model IRC5LXO2AWQ Model IRC9LXO2AWQ Dealer: This manual must be given to the end user. User: Before using this concentrator, read this manual and save for future reference. For more information regarding Invacare products, parts, and services, please visit www.invacare.com...
Page 2 ACCESSORIES WARNING Invacare products are specifically designed and manufactured for use in conjunction with Invacare accessories. Accessories designed by other manufacturers have not been tested by Invacare and are not recommended for use with Invacare products. NOTE: Updated versions of this manual are available on www.invacare.com. Platinum Part No 1134866 ™...
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS SPECIAL NOTES ..........5 RECYCLING INFORMATION ......6 SECTION 1—GENERAL GUIDELINES .....7 Maintenance..................9 Radio Frequency Interference............9 To Reduce The Risk Of Burns, Electrocution, Fire Or Injury To Persons ....................9 Oxygen Concentration ..............10 SECTION 2—FEATURES ........11 SECTION 3—SHIPPING AND HANDLING ....12 Unpacking....................
Page 4 TABLE OF CONTENTS Routine Maintenance................ 27 SECTION 7—TROUBLESHOOTING GUIDE ....31 LIMITED WARRANTY ........33 Platinum Part No 1134866 ™...
Page 5: Special Notes
SPECIAL NOTES SPECIAL NOTES Signal words are used in this manual and apply to hazards or unsafe practices which could result in personal injury or property damage. Refer to the following table for definitions of the signal words. SIGNAL WORD MEANING Danger indicates an imminently hazardous situation which, if not avoided, will result in death or serious DANGER injury. Warning indicates a potentially hazardous situation which, if not avoided, could result in death or WARNING serious injury.
Page 6: Recycling Information
RECYCLING INFORMATION RECYCLING INFORMATION This product has been supplied from an environmentally aware manufacturer that complies with the Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/CE. This product may contain substances that could be harmful to the environment if disposed of in places (landfills) that are not appropriate according to legislation. The ʹcrossed out wheelie binʹ symbol is placed on this product to encourage you to recycle wherever possible. Please be environmentally responsible and recycle this product through your recycling facility at its end of life. Platinum™ Part No 1134866...
Page 7: Section 1-General Guidelines
SECTION 1—GENERAL GUIDELINES SECTION 1—GENERAL GUIDELINES WARNING SECTION 1 - GENERAL GUIDELINES contains important information for the safe operation and use of this product. In order to ensure the safe installation, assembly and operation of the Platinum concentrator these instructions MUST be followed. CAUTION “Caution: Federal law restricts this device to sale or rental by or on order of a physician, or any other practitioner licensed by the law of the governmental agency in which he/she practices to use or order the use of this device.” DANGER Risk of electric shock. DO NOT disassemble. Refer servicing to qualified service personnel. Part No 1134866 Platinum™...
Page 8 SECTION 1—GENERAL GUIDELINES WARNINGS The use of oxygen therapy requires that special care be taken to reduce the risk of fire. Any materials that will burn in air, and some that will not, are easily ignited and burn rapidly in high concentrations of oxygen. For safety concerns, it is necessary that all sources of ignition be kept away from the product and preferably out of the room in which it is being used. NO SMOKING signs should be prominently displayed. A spontaneous and violent ignition may occur if oil, grease or greasy substances come in contact with oxygen under pressure. These substances MUST be kept away from the oxygen concentrator, tubing and connections, and all other oxygen equipment. DO NOT use any lubricants unless expressly recommended by Invacare. For optimum performance, Invacare recommends that each concentrator be on and running for a minimum of 30 minutes at a time. Shorter periods of operation may reduce maximum product life. If the concentrator has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water, call Qualified Service Personnel for examination and repair. Keep the oxygen tubing, cord, and unit away from heated or hot surfaces, including space heaters, blankets, stoves and similar electrical appliances. DO NOT move or relocate concentrator by pulling on the cord. NEVER drop or insert any object into any opening. NEVER block the air openings of the product or place it on a soft surface, such as a bed or couch, where the air opening may be blocked. Keep the openings free from lint, hair and the like. Platinum™ Part No 1134866...
Page 9: Maintenance
SECTION 1—GENERAL GUIDELINES Fill humidifier with water to the level shown by the manufacturer. DO NOT overfill. Keep unit at least 7.5 cm (3 in) away from walls, draperies, furniture, and the like. Invacare recommends that Crushproof oxygen tubing (supplied by Invacare) be used with this product and NOT exceed 15.2 m (50 ft) in length. Recommended use for Platinum 9 is up to 15.2 m (50 ft) in length of high flow tubing. Maintenance The Invacare Oxygen Concentrator was specifically designed to minimize routine preventive maintenance at intervals of once per year. Only professionals of the healthcare field or persons fully conversant with this process such as authorized or factory trained personnel should perform preventive maintenance or performance adjustments on the oxygen concentrator. Radio Frequency Interference Most electronic equipment is influenced by Radio Frequency Interference (RFI). Caution should be exercised with regard to the use of portable communications equipment in the area around such equipment. To Reduce The Risk Of Burns, Electrocution, Fire Or Injury To Persons Avoid using while bathing. If continuous usage is required by the physician’s prescription: The concentrator must be located in another room at least ...
Page 10: Oxygen Concentration
SECTION 1—GENERAL GUIDELINES DO NOT reach for product that has fallen into water. Unplug IMMEDIATELY. This device is to be used only in accordance with the prescription of a physician and this Owners Manual. If at any time the patient or attendant conclude that the patient is receiving an insufficient amount of oxygen, the supplier and/or physician should be contacted IMMEDIATELY. No adjustments should be made to the flowrate unless prescribed by a physician. Close supervision is necessary when this product is used near children or physically‐challenged individuals. Use this product for only intended use as described in this manual. DO NOT connect the concentrator in parallel or series with other oxygen concentrators or oxygen therapy devices. Use of some administration accessories or certain humidifiers not specified for use with oxygen concentrator may impair the performance. In certain circumstances oxygen therapy can be hazardous. Invacare recommends that you seek medical advice before using this machine. This equipment is to be used as an oxygen supplement and is not considered life supporting or life sustaining. Avoid creation of any spark near medical oxygen equipment. This includes sparks from static electricity created by any type of friction. Oxygen Concentration Take care not to set the flow above RED ring. An oxygen flow greater than 5 L/min. (IRC5LXO2AW, IRC5LXAW, IRC5LXO2AWQ) and 9 L/min. (IRC9LXO2AWQ) will decrease the oxygen concentration. Platinum™ Part No 1134866...
Page 11: Section 2-Features
(Hour Meter) Cabinet Filter (one of two shown) *NOTE: This outlet fitting is to be used only for filling oxygen cylinders with the HomeFill home oxygen compressor. The outlet fitting does not affect concentrator performance. Refer to the HomeFill ownerʹs manual, part number 1145804, for connection and operating instructions. When not in use, the plug provided with the concentrator should be inserted into the outlet fitting. For more information about the HomeFill, contact Invacare. Power Cord Outlet Fitting* ACCESSORIES (NOT SHOWN): HomeFill home oxygen compressor Contact your local Invacare representative for available accessory information. TOP VIEW Part No 1134866 Platinum™...
Page 12: Section 3-Shipping And Handling
SECTION 3—SHIPPING AND HANDLING SECTION 3—SHIPPING AND HANDLING NOTE: For this procedure, refer to FIGURE 3.1 on page 13. Before you install and operate the concentrator, please refer to Platinum Series Ownerʹs Manual. The Platinum concentrator should ALWAYS be kept in the upright position to prevent cabinet damage while being transported. The shipping container has been designed to assure maximum protection of the concentrator. If the concentrator is to be reshipped by common carrier, it should be packed in a new carton. Additional cartons are available from Invacare. The air compressor suspension system has been engineered to withstand severe motion and orientation. Unpacking 1. Check for any obvious damage to the carton or its contents. If damage is evident, notify the carrier, or Invacare. 2. Remove all loose packing from the carton. 3. Carefully remove all the components from the carton. NOTE: Retain carton and packing materials for storage of the Platinum. Inspection 1. Examine exterior of the oxygen concentrator for nicks, dents, scratches or other damages. Inspect all components. Storage 1. Store the repackaged oxygen concentrator in a dry area. 2. DO NOT place other objects on top of the repackaged ...
Page 13 SECTION 3—SHIPPING AND HANDLING FIGURE 3.1 Unpacking Part No 1134866 Platinum™...
Page 14: Section 4-Typical Product Parameters
SECTION 4—TYPICAL PRODUCT PARAMETERS SECTION 4—TYPICAL PRODUCT PARAMETERS Regulatory EN/IEC 60601-1 Listing: Alternating Current Type BF equipment Unit running Unit not running Attention - Consider Accompanying Documents DO NOT smoke Class II, Double Insulation Electrical Requirements: 230 VAC ± 10% (253 VAC/207 VAC), 50 Hz Rated Current Input: 1.4 A (IRC5LXO2AWQ) 2.0 A (IRC5LXAW, IRC5LXO2AW)
Page 15 SECTION 4—TYPICAL PRODUCT PARAMETERS *Oxygen Output IRC5LXAW, IRC5LXO2AW and Concentration Levels: IRC5LXO2AWQ All 5LXO2AWQ/5LXAW/ 93% minimum at 1 to 3 L/min. 5LXO2AW/9LXO2AWQ 91% minimum at 4 L/min. models 87% minimum at 5 L/min. (maximum * (Stated concentration levels recommended flow) achieved after initial warm-up IRC9LXO2AWQ period (approximately 30...
Page 16 SECTION 4—TYPICAL PRODUCT PARAMETERS Change in maximum 0.7 L/min. recommended flow when back pressure of 7k Pa is applied: Filters: Cabinet (2), Outlet HEPA and Compressor Inlet. Safety System: Current overload or line surge shutdown. High temperature compressor shutdown. High Pressure Alarm w/compressor shutdown.
Page 17 SECTION 4—TYPICAL PRODUCT PARAMETERS Regulatory Listing: IRC5LXAW/IRC5LXO2AW/ IRC5LXO2AWQ/IRC9LXO2AWQ ETL tested as complying with: EN55011 EN61000-3-2 EN61000-3-3 IEC 60601-1, A1, A2 IEC 60601-1-2 IRC5LXO2AW, IRC5LXO2AWQ, IRC9LXO2AWQ Models Only ISO8359 CE marked models: IRC5LXO2AW, IRC5LXO2AWQ, IRC9LXO2AWQ Electrical: No extension cords. Placement: No closer than 7.5 cm (3 inches) from any wall, furniture, draperies, or similar surfaces.
Page 18: Indicator Lights
SECTION 4—TYPICAL PRODUCT PARAMETERS SENSO INDICATORS LABEL STATUS INDICATOR LIGHTS SYMBOL (LED) SYSTEM OKAY GREEN Indicator Light over 85% (± 2%) Between 73% (± 3%) YELLOW Indicator light A. YELLOW Solid to 85% (±2%) B. YELLOW Flashing Sensor Failure Call a qualified technician. SYSTEM FAILURE RED Indicator Light Below 73% (±3%)
Page 19: Section 5-Operating Instructions
SECTION 5—OPERATING INSTRUCTIONS SECTION 5—OPERATING INSTRUCTIONS Introduction Your oxygen concentrator is intended for individual use in the home. It is an electronically operated device that separates oxygen from room air. It provides high concentration of oxygen directly to you through a nasal cannula. Clinical studies have documented that oxygen concentrators are therapeutically equivalent to other types of oxygen delivery systems. Your provider will show you how to use your oxygen concentrator. He/She should be contacted with any questions or problems regarding your oxygen concentrator. This owner’s manual will tell you about your concentrator and will serve as a reference as you use your concentrator. Select a Location You may select a room in your house where using your oxygen concentrator would be most convenient. Your concentrator can be easily rolled from room to room on its casters. Your oxygen concentrator will perform best when operated under the following conditions. Usage in environments other than those described may result in the need for increased equipment maintenance. The air intake of the unit should be located in a well ventilated area to avoid airborne pollutants and/or fumes. Part No 1134866 Platinum™...
Page 20: Recommended Guidelines For Optimum Performance
SECTION 5—OPERATING INSTRUCTIONS Recommended Guidelines for Optimum Performance Temperature: (10°C - 35°C) 50°F - 95°F Electrical: No extension cords. Placement: No closer than 7.5 cm (3 in) from the wall, furniture, draperies, or similar surfaces. Tubing and Cannula: IRC5LXAW, IRC5LXO2AW, IRC5LXO2AWQ 2.1 m (7 ft) cannula with a maximum 15.2 m (50 ft) of Crush-Proof Tubing (DO NOT...
Page 21: Connect Humidifier (If So Prescribed)
SECTION 5—OPERATING INSTRUCTIONS Connect Humidifier (If So Prescribed) NOTE: For this procedure, refer to FIGURE 5.1,FIGURE 5.2, FIGURE 5.3 on page 22 and FIGURE 5.4 on page 23. 1. Fill humidifier with distilled water to the level indicated by the manufacturer. (Please contact Invacare for recommendations). WARNING DO NOT overfill humidifier. Replace the humidifier cap and securely tighten. DO NOT reverse the oxygen input and output connections. Water from the humidifier bottle will travel through the cannula back to the patient.
Page 22 SECTION 5—OPERATING INSTRUCTIONS 3. Remove the filter access door located on the side of the concentrator. Insert a flathead screwdriver in the plate groove on the top edge of the filter access door and gently pry the filter access door open. Refer to Detail “A” in FIGURE 5.3. 4. The humidifier adapter is next to the inlet filter. Pull up and remove the humidifier bottle adapter. Refer to Detail “B” in FIGURE 5.3. 5. Attach it to the humidifier by turning the wing nut on the humidifier bottle counterclockwise until it is securely fastened. Refer to Detail “C” in FIGURE 5.3. DETAIL “A” Plate Groove (Insert Flat Head Screwdriver Here) Filter Access Door DETAIL “B” Humidifier Bottle Adapter DETAIL “C” Filter Access Door Humidifier Bottle Adapter FIGURE 5.3 Attaching the Humidifier Bottle Adapter Platinum™...
Page 23: Power Switch
Tubing Humidifier Outlet FIGURE 5.4 Attaching the Oxygen Tubing WARNING For optimum performance, Invacare recommends that each concentrator be on and running for a minimum of 30 minutes at a time. Shorter periods of operation may reduce maximum product life.
Page 24: Flowrate
SECTION 5—OPERATING INSTRUCTIONS On/Off (I/O) Power Switch FIGURE 5.5 Power Switch Flowrate NOTE: For this procedure, refer to FIGURE 5.6 on page 25. 1. Turn the flowrate knob to the setting prescribed by your physician or therapist. WARNING DO NOT change the L/min. setting on the flowmeter unless a change has been prescribed by your physician or therapist. NOTE: To properly read the flowmeter, locate the prescribed flowrate line on the flowmeter. Next, turn the flow knob until the ball rises to the line. Now, center the ball on the L/min. line ...
Page 25: Senso Oxygen Purity Indicators (Lx O Sensor Model)
SECTION 5—OPERATING INSTRUCTIONS NOTE: The use of some accessories such as the pediatric flowstand and the HomeFill compressor will deactivate the Low Flow Alarm. Flow Knob Ball FIGURE 5.6 Flowrate SensO Oxygen Purity Indicators (LX O Sensor Model) This feature monitors the purity of oxygen generated by the oxygen concentrator. If purity falls below factory preset standards, indicator lights on the control panel will illuminate. Initial Startup of the Concentrator NOTE: Concentrator may be used during the initial start warm‐up time (approximately 30 min.) while waiting for the O purity to reach maximum. When the unit is turned on, the GREEN light will come on (SYSTEM OK/O greater than 85%). After five minutes, the oxygen sensor will be operating normally and will control the indicator lights depending on oxygen concentration values. Explanation of Oxygen Purity Indicator Lights NOTE: For this procedure, refer to FIGURE 5.7.
Page 26: Indicators (Lx Model)
SECTION 5—OPERATING INSTRUCTIONS OXYGEN PURITY Auto Shut Down Use Backup Call Supplier Below Normal YELLOW Normal GREEN FIGURE 5.7 SensO Oxygen Purity Indicators (LX O Sensor Model) GREEN light (O ) ‐ Normal Operation. YELLOW light ( ) ‐ Call supplier IMMEDIATELY. You may continue to use the concentrator unless instructed otherwise by your supplier. Be certain that backup oxygen is nearby. RED light ( )‐ Total unit shutdown. Switch IMMEDIATELY to backup oxygen supply. Call supplier IMMEDIATELY (FIGURE 5.7). GREEN light ‐ with YELLOW light flashing ‐ Call supplier IMMEDIATELY. Oxygen sensor malfunctioning; you may continue to use the concentrator (FIGURE 5.7). Indicators (LX Model) NOTE: For this procedure, refer to FIGURE 5.8.
Page 27: Main Power Loss Alarm System
SECTION 5—OPERATING INSTRUCTIONS Auto Shut Down Use Backup Call Supplier Normal GREEN FIGURE 5.8 Indicators (LX Model) Main Power Loss Alarm System The alarm system contains no battery ‐ and is thereby maintenance free. The alarm system is powered by a capacitor that is continuously charged and ready to trigger the alarm in the event of main power loss. Elapsed Time Meter (Hour Meter) The hour meter displays the cumulative number of hours the unit has operated. Part No 1134866 Platinum™...
Page 28: Section 6-Maintenance
SECTION 6—MAINTENANCE SECTION 6—MAINTENANCE NOTE: The Invacare concentrators are specifically designed to minimize routine preventive maintenance. In places with high dust or soot levels, maintenance may need to be performed more often. Only authorized or factory‐trained personnel should perform preventive maintenance on the concentrator. Power should be disconnected before beginning preventive maintenance on the Invacare concentrator. NOTE: At a minimum, preventive maintenance MUST be performed according to the maintenance record guidelines. Refer to Preventive Maintenance Record on page 30. Routine Maintenance NOTE: The following routine maintenance should be performed more frequently. See recommended intervals in each section and preventive maintenance record. Cleaning the Cabinet Filter NOTE: For this procedure, refer to FIGURE 6.1 on page 29. CAUTION DO NOT operate the concentrator without the filters installed. NOTE: There are two cabinet filters. One filter located on each side of the cabinet. 1. Remove each filter and clean at least once a week ...
Page 29 SECTION 6—MAINTENANCE 3. Dry the filters thoroughly before reinstallation. Cabinet Filter (located on both sides of concentrator) FIGURE 6.1 Cleaning the Cabinet Filter Cabinet WARNING Unplug the concentrator when cleaning. To avoid electrical shock, DO NOT remove cabinet. 1. Clean the cabinet with a mild household cleaner and non‐abrasive cloth or sponge. Humidifier NOTE: To clean the oxygen humidifier, follow the instructions provided by the manufacturer. If none are provided, follow these steps: 1.
Page 30 SECTION 6—MAINTENANCE MODEL NO. I RC SERIAL NO. FIGURE 6.2 Preventive Maintenance Record Platinum™ Part No 1134866...
Page 31: Section 7—Troubleshooting Guide
SECTION 7—TROUBLESHOOTING GUIDE SECTION 7—TROUBLESHOOTING GUIDE SYMPTOM: PROBABLE CAUSE: SOLUTION: Alarm: Main Power Loss: Short beeps, long 1. Power cord NOT 1. Insert plug into outlet. pause plugged in. Concentrator not 2. No power at outlet. 2. Inspect house circuit operating, breakers or fuses.
Page 32 SECTION 7—TROUBLESHOOTING GUIDE SYMPTOM: PROBABLE CAUSE: SOLUTION: YELLOW or RED 1. Low oxygen purity.* 1. Clean or Replace filters. light illuminated. 2. Kinked or blocked 2. Inspect for kinks or tubing, cannula or blockages. Correct, clean or humidifier.* replace item. Once Alarm: corrected, turn power OFF Continuous...
Page 33: Limited Warranty
LIMITED WARRANTY LIMITED WARRANTY Available At: Belgium & Luxemburg: Invacare nv, Autobaan 22, B‐8210 Loppem Tel: (32) (0)50 83 10 10, Fax: (32) (0)50 83 10 11 belgium@invacare.com Danmark: Invacare A/S, Sdr. Ringvej 37, DK‐2605 Brøndby Tel: (45) (0)36 90 00 00, Fax: (45) (0)36 90 00 01 denmark@invacare.com Deutschland: Invacare Aquatec GmbH, Alemannenstraße 10, D‐88316 Isny Tel: (49) (0)75 62 7 00 0, Fax: (49) (0)75 62 7 00 66 info@invacare‐aquatec.com European Distributor Organisation: Invacare, Kleiststraße 49, D‐32457 Porta Westfalica Tel: (49) (0)57 31 754 540, Fax: (49) (0)57 31 754 541 edo@invacare.com España: Invacare SA, c/Areny s/n, Polígon Industrial de Celrà, E‐17460 Celrà (Girona) Tel: (34) (0)972 49 32 00, Fax: (34) (0)972 49 32 20 contactsp@invacare.com France: Invacare Poirier SAS, Route de St Roch, F‐37230 Fondettes Tel: (33) (0)2 47 62 64 66, Fax: (33) (0)2 47 42 12 24 contactfr@invacare.com Ireland: Invacare Ireland Ltd, Unit 5 Seatown Business Campus, Seatown Road, Swords, County Dublin ‐ Ireland Tel: (353) 1 810 7084, fax: (353) 1 810 7085 ireland@invacare.com Part No 1134866 Platinum™...
Page 34 LIMITED WARRANTY Italia: Invacare Mecc San s.r.l., Via dei Pini 62, I‐36016 Thiene (VI) Tel: (39) 0445 38 00 59, Fax: (39) 0445 38 00 34 italia@invacare.com Nederland: Invacare BV, Celsiusstraat 46, NL‐6716 BZ Ede Tel: (31) (0)318 695 757, Fax: (31) (0)318 695 758 nederland@invacare.com csede@invacare.com Norge: Invacare AS, Grensesvingen 9, Postboks 6230, Etterstad, N‐0603 Oslo Tel: (47) (0)22 57 95 00, Fax: (47) (0)22 57 95 01 norway@invacare.com island@invacare.com Österreich: Mobitec Mobilitätshilfen GmbH, Herzog Odilostrasse 101, A‐5310 Mondsee Tel.: (43) 6232 5535 0, Fax.: (43) 6232 5535 4 office@mobitec‐austria.com, austria@invacare.com Portugal: Invacare Lda, Rua Estrada Velha, 949, P‐4465‐784 Leca do Balio Tel: (351) (0)225 1059 46/47, Fax: (351) (0)225 1057 39 portugal@invacare.com Sverige & Suomi: Invacare AB, Fagerstagatan 9, S‐163 91 Spånga Tel: (46) (0)8 761 70 90, Fax: (46) (0)8 761 81 08 sweden@invacare.com finland@invacare.com Platinum™ Part No 1134866...
Page 35 LIMITED WARRANTY Switzerland: Mobitec Rehab AG, Benkenstrasse 260, CH‐4108 Witterswil Tel.: (41) (0)61 487 70 80, Fax.: (41) (0)61 487 70 81 office@mobitec‐rehab.ch switzerland@invacare.com United Kingdom: Invacare Ltd, South Road, Bridgend Industrial Estate, UK‐Bridgend CF31 3PY Tel: (44) (0)1656 664 321, Fax: (44) (0)1656 667 532 UK@invacare.com Part No 1134866 Platinum™...
Page 36 EU Representative identified by ™ and ®. Invacare International Sarl All trademarks are owned by or Route de Cité Ouest 2 licensed to Invacare Corporation or 1196 Gland its subsidiaries unless otherwise Switzerland noted. Tel: +41 22 354 60 10 Fax: +41 22 354 60 11 ©...
