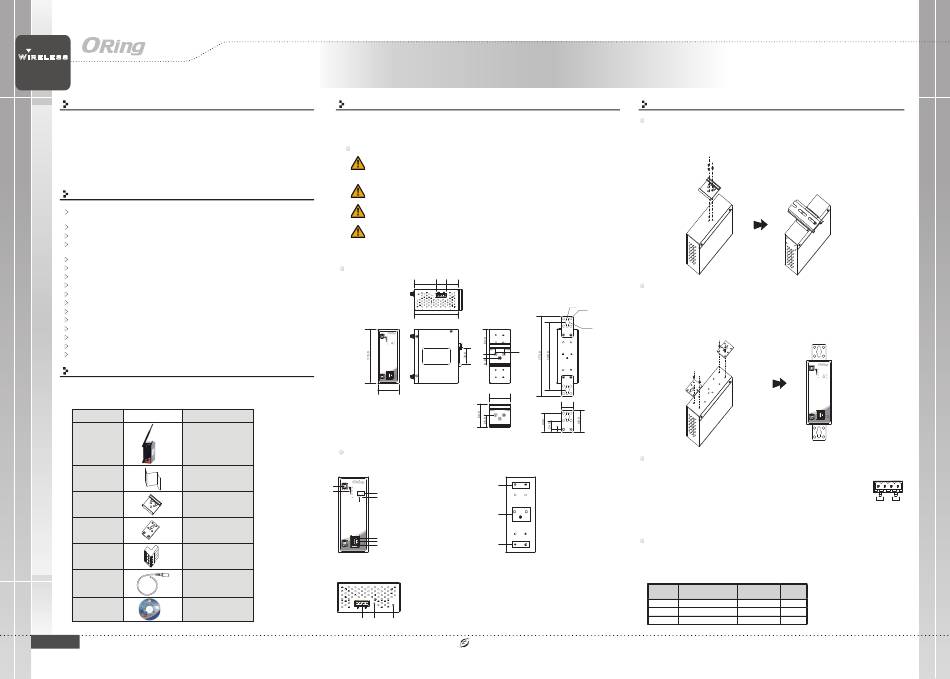

ORiNG IGAP-610H+ Quick Installation Manual

Wireless
ACCESS POINT
Q I
I N D U S T R I A L uick nstallation
Introduction
IGAP-610H+ is a reliable WLAN Access Point with 1 Ethernet Gigabit ports
and IEEE 802.11 a/b/g/n wireless module. It can be configured to operate in
AP/Client/Repeater Mode. You are able to configure
interface via LAN port or WLAN interface. In addition,
provides P.D. feature on Ethernet port which is fully compliant with
IEEE802.3af PoE P.D. specification. Therefore,
best communication solutions for wireless applications on the industrial
network.
Features
High Speed Air Connectivity: Dual Band in IEEE 802.11 a/b/g/n and b/g/n WLAN
interface selectable and support up to 300Mbps link speed
12~48VDC power input on terminal block
1 Gigabit Ethernet ports with 2KV isolation for PoE P.D.
Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK (TKIP,
AES)/802.1X Authentication supported
Support X-Roaming < 100 ms
Support Multiple-SSID to 4 SSID with VLAN
Support MAC Filter
High transmission power (27 dBm Max.)
High data throughput with HT40 2x2 MIMO
Support Long Distance Air Connectivity
Support AP/Client/Repeater
Wireless connecting status monitoring
Secured Management by HTTPS
Event Warning by Syslog, Email, SNMP Trap, and Relay output
Rigid IP-30 housing design
DIN-Rail and Wall-mount enabled
Package Contents
The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative
for assistance.
Contents Pictures
IGAP-610H+
QIG
DIN-rail kit
Wall-Mount Kit
4-pin terminal block
Power cable with
power jack
CD
Q I G
IGAP-610H+
G
uide
Preparation
Before installation, make sure you have all of the package contents available and a PC
with Microsoft Internet Explorer 6.0 or later, for using web-based system management
tools.
IGAP-610H+ by WEB
also
IGAP-610H+
Safety & Warnings
Elevated Operating Ambient: If installed in a closed environment, make sure the
IGAP-610H+ is one of the
operating ambient temperature is compatible with the maximum ambient temperature
(Tma) specified by the manufacturer.
Reduced Air Flow: Make sure the amount of air flow required for safe operation of the
equipment is not compromised during installation.
Mechanical Loading: Make sure the mounting of the equipment is not in a hazardous
condition due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the equipment to
the supply circuit and the effect that overloading of the circuits might have on overcurrent
protection and supply wiring. Appropriate consideration of equipment nameplate ratings
should be used when addressing this concern.
Dimension Unit =mm (Tolerance ±0.5mm)
Number
X 1
Panel Layouts
Front Panel
X 1
WLAN
ANT.1
4 IGAP-610H+
5
1
P1 P2
PoE SYS 2
WLAN
X 1 3
X 2
LNK/ACT
6
ETH1 7
PoE
(P.D.)
8
WLAN 10/100/1000M Speed
ANT.2
X 1
Top Panel
X 1
X 1
1 2
1907-200-G610H+XXX2-FX010
IGAP-610H+
46.7 22.5 25.8
95.0
WLAN
ANT.1
IGAP-610H+
P1 P2
PoE SYS
WLAN
18 0 13 5
. .
LNK/ACT
ETH1
PoE
(P.D.)
WLAN 10/100/1000M Speed
ANT.2
45.0
45.0
5.0
Rear Panel
1. Power LED
1. Din-rail screw holes
2. System LED 2
2. Wall-mount screw holes
3. PoE power status
4. WLAN Antenna
5. LED for wireless signal strength
6. LNK/ACT LED for Giga PoE LAN
1
port
7. Giga PoE LAN port
8. Speed LED for Giga PoE LAN port
2
1. Terminal block
2. Reset button
3. Grounding screw
3
PRINTED ON RECYCLED PAPER
Industrial Wireless LAN Access
Point
Installation
DIN-rail
Step 1 : Slant the device and screw the Din-rail kit onto the back of the device, right in the
middle of the back panel.
Step 2 :Slide the device onto a DIN-rail from the Din-rail kit and make sure the device clicks
into the rail firmly.
Wall-mount
Step 1: Screw the two pieces of wall-mount kits to the top and bottom panels of the
device. A total of eight screws are required, as shown below.
Ø5.0
Ø5.0 Step 2: Use the device, with wall mount plates attached, as a guide to mark the correct
locations of the four screws.
Step 3: Insert a screw head through middle of the keyhole-shaped aperture on the plate,
Ø10.0
and then slide the device downwards. Tighten the screw head for added stability.
25.0
Wiring
Power inputs
The device supports dual redundant power supplies, Power Supply1 (PWR1)
and Power Supply 2 (PWR2). The connections for PWR1, PWR2 are located
on the terminal block.
STEP 1: Insert the negative/positive wires into the V-/V+ terminals,
respectively.
STEP 2: To keep the DC wires from pulling loose, use a small flat-blade
screwdriver to tighten the wire-clamp screws on the front of the terminal block
connector.
Network Connection
The device has three standard Ethernet ports. According to the link type, the device uses
CAT 3,4,5,5e UTP cables to connect to any other network devices (PCs, servers, switches,
routers, or hubs). Please refer to the following table for cable specifications.
Cable Types and Specifications:
Cable Type
10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft)
100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft)
1000BASE-T Cat. 5/Cat. 5e 100-ohm UTP UTP 100 m (328ft)
Version 2.0
WLAN
ANT.1
IGAP-610H+
P1 P2
PoE SYS
WLAN
LNK/ACT
ETH1
PoE
(P.D.)
10/100/1000M Speed
WLAN
ANT.2
V2- V2+ V1- V1+
PWR-2 PWR-1
Max. Length Connector
RJ-45
RJ-45
RJ-45
Quick Installation Guide
