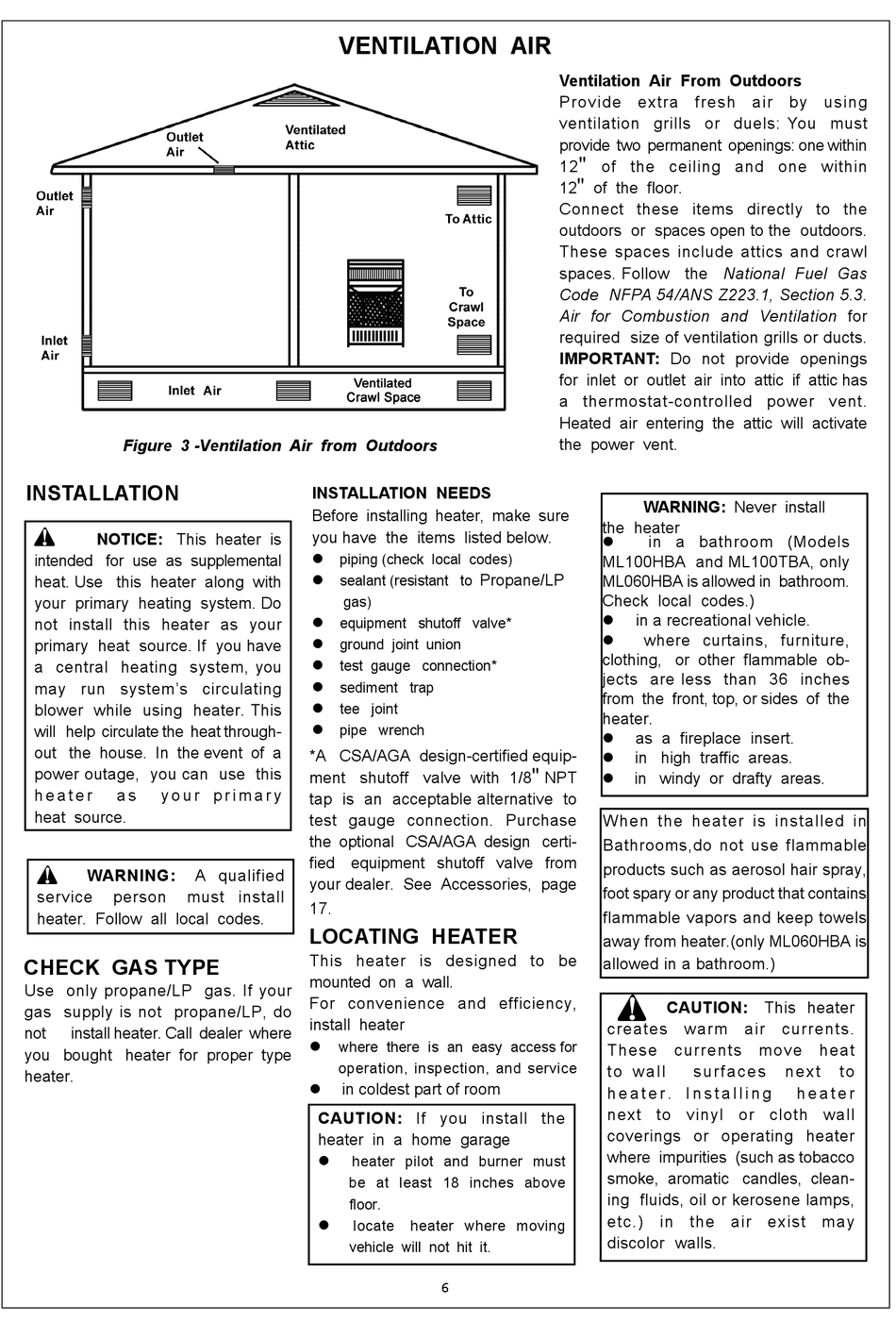

Figure 3 -Ventilation Air from Outdoors

INSTALLATION

NOTICE: This heater is
intended for use as supplemental
heat. Use this heater along with
your primary heating system. Do
not install this heater as your
primary heat source. If you have
a central heating system, you
may run system's circulating
blower while using heater. This
will help circulate the heat through-
out the house. In the event of a
power outage, you can use this
h e a t e r a s y o u r p r i m a r y
heat source.
WARNING:
service person must install
heater. Follow all local codes.
CHECK GAS TYPE
Use only propane/LP gas. If your
gas supply is not propane/LP, do
not install heater. Call dealer where
you bought heater for proper type
heater.

VENTILATION AIR

INSTALLATION NEEDS
Before installing heater, make sure
you have the items listed below.
l
piping (check local codes)
l
sealant (resistant to
gas)
l
equipment shutoff valve*
l
ground joint union
l
test gauge connection*
l
sediment trap
l
tee joint
l
pipe wrench
*A CSA/AGA design-certified equip-
ment shutoff valve with 1/8
tap is an acceptable alternative to
test gauge connection. Purchase
the optional CSA/AGA design certi-
fied equipment shutoff valve from
A qualified
your dealer. See Accessories, page
17.

LOCATING HEATER

This heater is designed to be
mounted on a wall.
For convenience and efficiency,
install heater
l
where there is an easy access for
operation, inspection, and service
l in coldest part of room
CAUTION: If you install the
heater in a home garage
l
heater pilot and burner must
be at least 18 inches above
floor.
l
locate
vehicle will not hit it.
Ventilation Air From Outdoors
Provide extra fresh air by using
ventilation grills or duels: You must
provide two permanent openings: one within
"
12
"
12
Connect these items directly to the
outdoors or spaces open to the outdoors.
These spaces include attics and crawl
spaces. Follow the National Fuel Gas
Code NFPA 54/ANS Z223.1, Section 5.3.
Air for Combustion and Ventilation for
required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings
for inlet or outlet air into attic if attic has
a thermostat-controlled power vent.
Heated air entering the attic will activate
the power vent.
Propane/LP
"
NPT
heater where moving
6
of the ceiling and one within
of the floor.
WARNING: Never install
the heater
l in a bathroom (Models
ML100HBA and ML100TBA, only
ML060HBA is allowed in bathroom.
Check local codes.)
l in a recreational vehicle.
l where curtains, furniture,
clothing, or other flammable ob-
jects are less than 36 inches
from the front, top, or sides of the
heater.
l as a fireplace insert.
l in high traffic areas.
l in windy or drafty areas.
When the heater is installed in
Bathrooms,do not use flammable
products such as aerosol hair spray,
foot spary or any product that contains
flammable vapors and keep towels
away from heater.(only ML060HBA is
allowed in a bathroom.)
CAUTION: This heater
creates warm air
These currents move
t o w a l l s u r f a c e s
h e a t e r . I n s t a l l i n g
next to vinyl or cloth wall
coverings or operating heater
where impurities (such as tobacco
smoke, aromatic candles, clean-
ing fluids, oil or kerosene lamps,
etc.) in the air exist may
discolor walls.
currents.
heat
n e x t t o
h e a t e r
