INSTALLING DAMPER CLAMP AC-
CESSORY FOR VENTED OPERATION
NOTE: When used as a vented heater,
appliance must be installed only in a
solid-fuel burning fireplace with a work-
ing flue constructed of noncombustible
material. You may use this heater as a
vented product. There are three reasons
for operating your
Heateras a vented model:
1.
The fireplace does not meet the
clearances to combustible require-
ments for vent-free operation.
2.
State or local codes do not permit
vent-free operation.
3.
You prefer vented operation.
If reasons number 1 or 2 above apply
to you, you must permanently open
chimney flue damper. You must install
thedamper not clamp accessory (not
provided) This will insure vented opera-
tion (see Figure 10). The damper clamp
will keep damper open. Installation in-
structions are included with not clamp
accessory.
See chart below for the minimum per-
manent flue opening you must provide.
Attach damper not clamp so the mini-
mum permanent at all opening will be
maintained at all times.
Chimney
Minimum Permanent
Height (ft.) Flue Opening (sq. Ins.)
6' to 15'
39 sq inches
15' to 30'
29 sq inches
Area of Various Standard
Round Flues
Diameter (ins.) Area (sq. ins.)
5"
20 sq inches
6"
29 sq inches
7"
39 sq inches
8"
51 sq inches
INSTALLATION

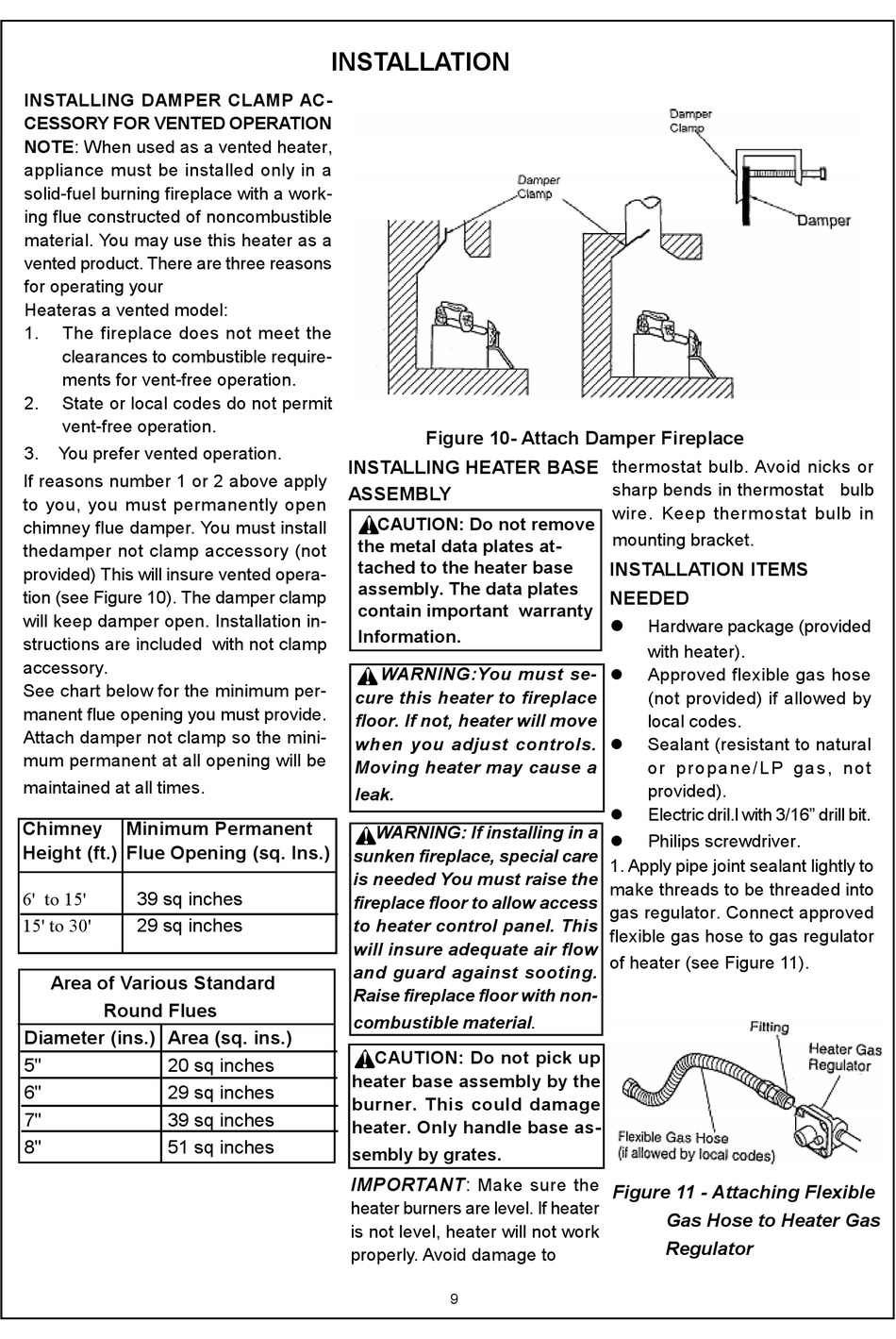

Figure 10- Attach Damper Fireplace
INSTALLING HEATER BASE
ASSEMBLY
CAUTION: Do not remove
the metal data plates at-
tached to the heater base
assembly. The data plates
contain important warranty
Information.
WARNING:You must se-
cure this heater to fireplace
floor. If not, heater will move
when you adjust controls.
Moving heater may cause a
leak.
WARNING: If installing in a
sunken fireplace, special care
is needed You must raise the
fireplace floor to allow access
to heater control panel. This
will insure adequate air flow
and guard against sooting.
Raise fireplace floor with non-
combustible material.
CAUTION: Do not pick up
heater base assembly by the
burner. This could damage
heater. Only handle base as-
sembly by grates.
IMPORTANT: Make sure the
heater burners are level. If heater
is not level, heater will not work
properly. Avoid damage to
9
thermostat bulb. Avoid nicks or
sharp bends in thermostat bulb
wire. Keep thermostat bulb in
mounting bracket.
INSTALLATION ITEMS
NEEDED
l
Hardware package (provided
with heater).
l
Approved flexible gas hose
(not provided) if allowed by
local codes.
l
Sealant (resistant to natural
or propane/LP gas, not
provided).
l
Electric dril.l with 3/16" drill bit.
Philips screwdriver.
l
1. Apply pipe joint sealant lightly to
make threads to be threaded into
gas regulator. Connect approved
flexible gas hose to gas regulator
of heater (see Figure 11).
Figure 11 - Attaching Flexible
Gas Hose to Heater Gas
Regulator
