Installation Instructions

Installation and service must be performed by a qualified technician.
IMPORTANT: Save for local electrical inspector's use. Read and save these instructions for future reference.

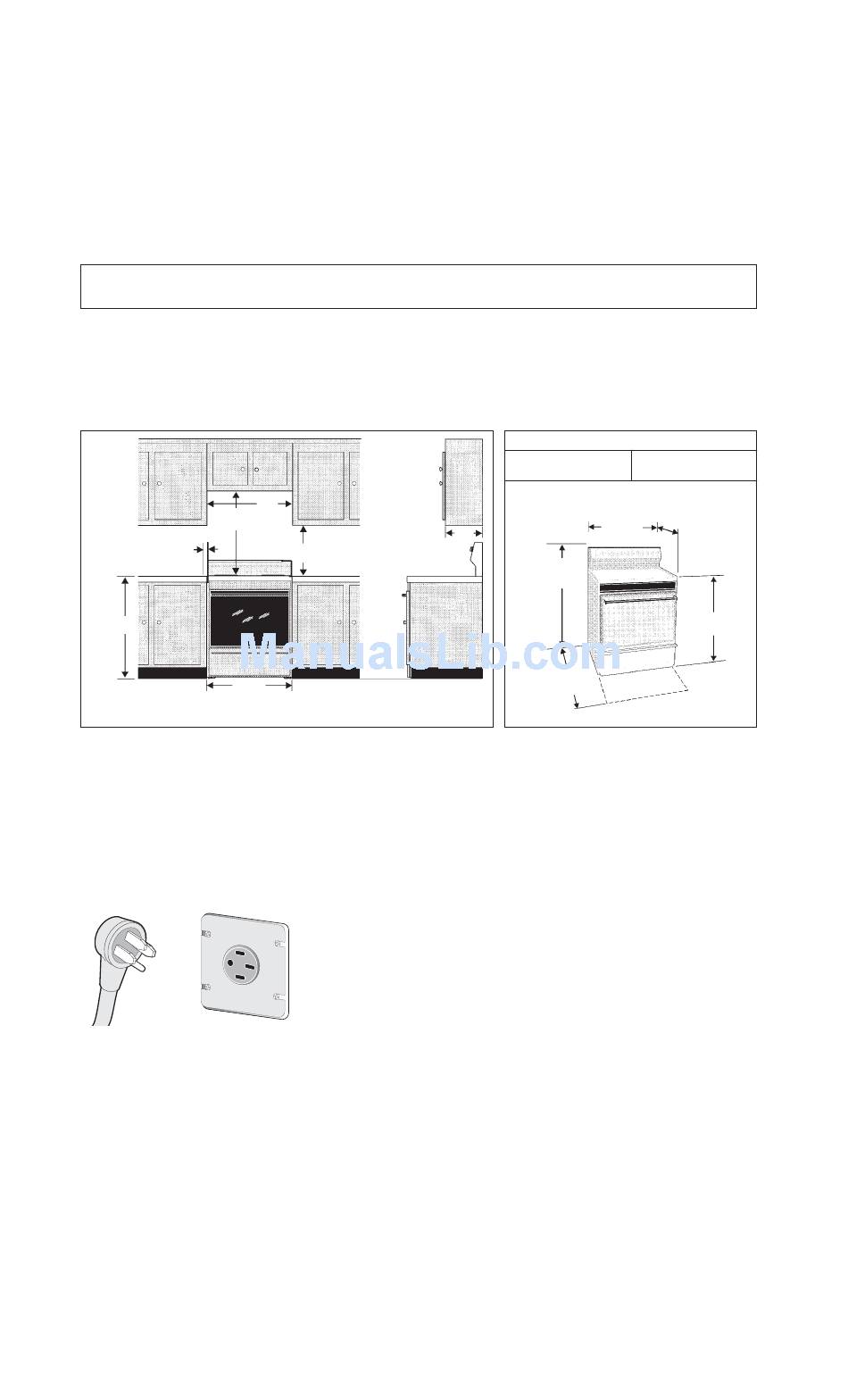

Clearances and Dimensions
A. Provide adequate clearances between the range and adjacent combustible surface (1.3cm (1/2") to the cabinet side
walls and the rear wall).
B. Location—Check location where the range will be installed. Check for proper electrical supply and the stability of
floor.
C. Dimensions that are shown must be used. Given dimensions provide minimum clearance. Contact surface must be
solid and level.
FRONT
VIEW
76.2 cm (30")
Minimum *
Minimum to
1.3 cm
wall on either
(1/2")
side of range.
91.4 cm
(36")
* 76.2 cm (30") minimum clearance between the top of the cooking surface and the bottom of an unprotected wood or
metal cabinet; or 61 cm (24") minimum when bottom of wood or metal cabinet is protected by not less than 0.64 cm (¼")
flame retardant millboard covered with not less than 0.038 cm (0.015") stainless steel, 0.061 cm (0.024") aluminum or
0.051 cm (0.020") copper. 1.3 cm (½") clearance is minimum for the rear and sides of the range. Follow all dimensions
requirements provided above to prevent property damage, potential fire hazard, and incorrect countertop and cabinet
cuts.
To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage space located above
the surface units should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a
range hood that projects horizontally a minimum of 12.7 cm ( 5") beyond the bottom of the cabinets.
Location
Set your new range 1.3 cm (1/2") away from the rear wall and line it up with the kitchen
counters. Make sure there is at least 1.3 cm (1/2") of clearance between each side of the
range and the kitchen counters. Allow 7.6 cm (3") min. clearance between your range and the
refrigerator, if they are side by side.
A
Minimum to
cabinets on
45.7 cm
Maximum depth for
(18")
either side of
cabinets above
range.
range top.
B
Electrical Hook-Up
This appliance must be connected to a grounded 120/240 volt or 120/208 volt, 45
AMP. Range outlet. If no outlet is available, have one installed by a qualified elec-
trician.
SIDE
VIEW
76.2 cm (30")
33 cm
(13")
122 cm (48")
Maximum
114.3 cm (45")
Door Open
6
DIMENSIONS
A
B
78.7 cm (31")
66 cm (26")
A
91.4 ± 0.3 cm
(36 ± 1/8")
