INSTALLATION

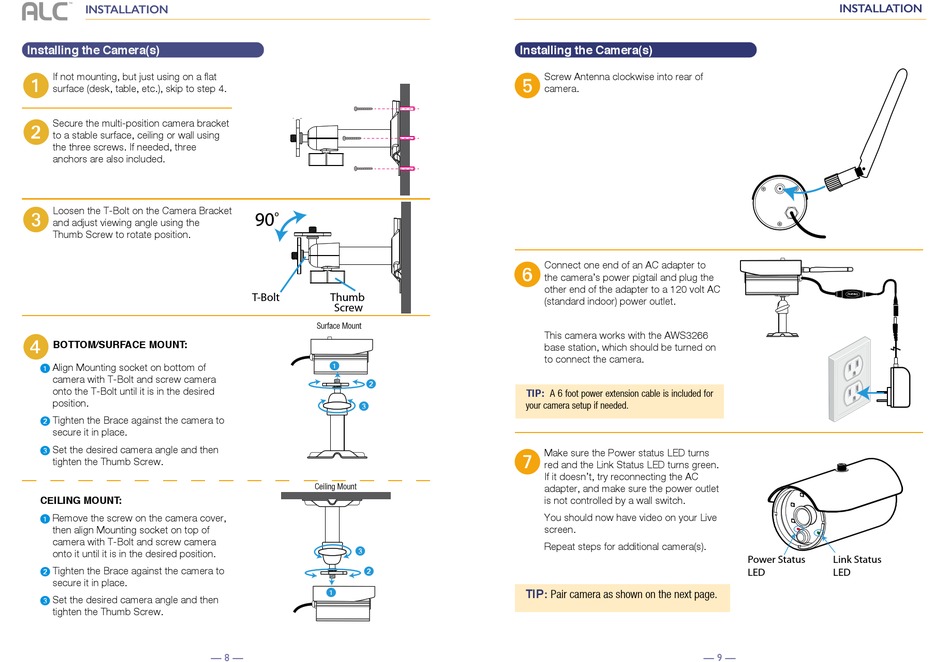

Installing the Camera(s)

If not mounting, but just using on a flat
u
surface (desk, table, etc.), skip to step 4.
Secure the multi-position camera bracket
v
to a stable surface, ceiling or wall using
the three screws. If needed, three
anchors are also included.
Loosen the T-Bolt on the Camera Bracket
w
and adjust viewing angle using the
Thumb Screw to rotate position.
x
BOTTOM/SURFACE MOUNT:
Align Mounting socket on bottom of
u
camera with T-Bolt and screw camera
onto the T-Bolt until it is in the desired
position.
Tighten the Brace against the camera to
v
secure it in place.
Set the desired camera angle and then
w
tighten the Thumb Screw.
CEILING MOUNT:
Remove the screw on the camera cover,
u
then align Mounting socket on top of
camera with T-Bolt and screw camera
onto it until it is in the desired position.
Tighten the Brace against the camera to
v
secure it in place.
Set the desired camera angle and then
w
tighten the Thumb Screw.
T-Bolt Thumb
Screw
u
v
w
w
v
u
— 8 —
Installing the Camera(s)
Screw Antenna clockwise into rear of
y
camera.
T-Bolt Thumb
Screw
Connect one end of an AC adapter to
U
the camera's power pigtail and plug the
other end of the adapter to a 120 volt AC
(standard indoor) power outlet.
This camera works with the AWS3266
base station, which should be turned on
to connect the camera.
TIP:
A 6 foot power extension cable is included for
your camera setup if needed.
Make sure the Power status LED turns
V
red and the Link Status LED turns green.
If it doesn't, try reconnecting the AC
adapter, and make sure the power outlet
is not controlled by a wall switch.
You should now have video on your Live
screen.
Repeat steps for additional camera(s).
TIP:
Pair camera as shown on the next page.
INSTALLATION
Power Status Link Status
LED LED
— 9 —
