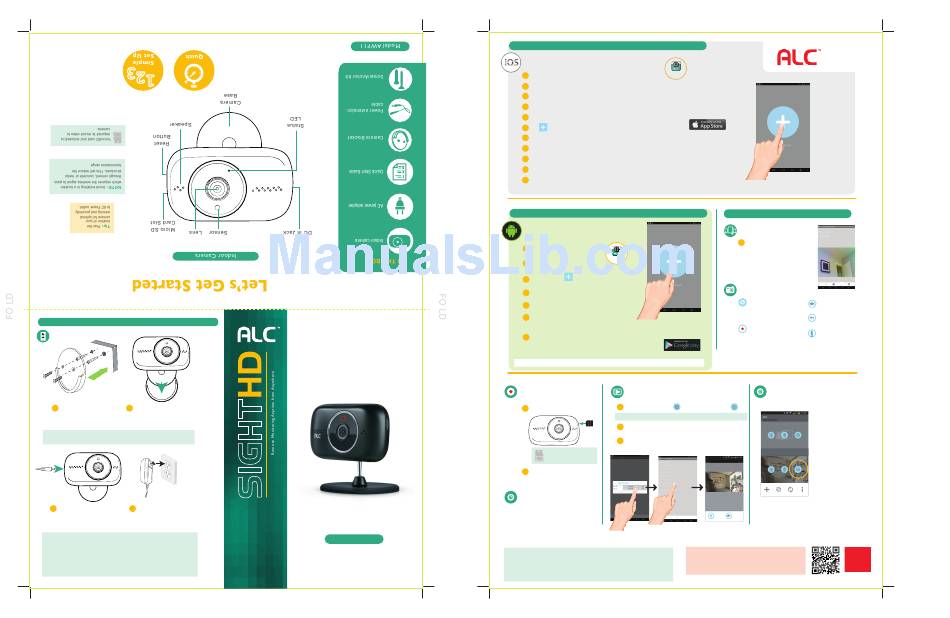

ALC AWF11 Quick Start Manual

CAMERA INSTALLATION + SETUP
CAMERA INSTALLATION
Secure the multi-position Camera Slide the camera into the Camera
1 2
Bracket using the two screws. If Bracket. Rotate the camera to the
needed, two anchors are also desired viewing angle.
included.
NOTE: Avoid pointing a camera directly at any bushes or tree branches or objects
that may naturally move due to winds.
Connect the small end of the AC Plug into electrical outlet when
3 4
adapter to the camera's DC ready to install App (Step 2 in
in Jack. REMOTE VIEWING section).
Recommendations for best system performance:
• Apple: iOS 6.0 or above.
• Android: Android TM
smartphone or tablet (version 2.3x or above).
• Storage: Class 10 microSD memory card (up to 32 GB).
• Bandwidth: 512Kbps or above upload/download speed suggested.
BACK cover
FO LD
720p Indoor
Wi-Fi Camera
Model AWF11
QUICK START GUIDE
Wireless Made Simple.
Front cover
APPLE REMOTE VIEWING APPLE REMOTE VIEWING
APPLE DEVICE SETUP
SightHD
1 From your smart device, DOWNLOAD and INSTALL the free ALC SightHD App.
2 Plug camera into an electrical outlet (allow the camera up to 90 seconds to boot up).
3 On your Apple device, open the Settings App. Tap Wi-Fi and under Choose A Network, select the HD-XXXXXX Network.
4 When asked for a password, enter, "12345678". Tap Join to connect.
FREE APP DOWNLOAD
5 Now Launch the ALC SightHD App and the Setup Wizard will appear.
6 Tap to start the Wizard.
7 Once the screen indicates the camera is connected, tap Live View.
8 Once the camera is found, the screen will show a Live View briefly before moving to a setup screen.
9 At the next screen enter a new password and remember it or write it down. Tap Wi-Fi Setting.
10 Select your home network from the menu, and then enter your home network's Wireless Password. Tap OK.
11 The system will reboot the camera. The reboot will be complete when the App finishes counting down from 90.
Tap still image for live video.
ANDROID REMOTE VIEWING
ANDROID DEVICE SETUP
From your smart device, DOWNLOAD and
1
INSTALL the free ALC SightHD App.
SightHD
2 Plug camera into an electrical outlet (allow
the camera up to 90 seconds to boot up).
Tap Set Up Wizard on screen for direct
3
wireless connection of camera to App.
4 Tap Next.
5 The App will start the connection process. Tap Live View.
6 Smart device will scan and detect camera. Once found, the
Change Password screen will appear. Enter a password and
remember it or write it down for future use. Tap OK.
FREE APP DOWNLOAD
The Setup Wi-Fi Network pop-up box will appear. Select
7
your home network from the menu, and then enter your
home network's Wireless Password. Tap OK. The App will
reboot the camera. Tap image for live video.
NOTE:
Screen shots and icons may vary due to continuous updates to App and software development.
LIVE VIEW RECORDING
PLAYBACK
on microSD CARD*
1 Tap CAMERA SETTING icon and then EVENTS LIST icon.
1 Insert a microSD card as shown.
NOTE:
For Apple devices tap the Search icon to bring up the Events screen.
2 Select the Start and Stop date and time on the Select Event Filter
and tap OK.
Tap the FILE that you want to playback from the list.
3
*microSD card (not included) is
required to record video to
camera.
2 Manually RECORD video from Live
View by tapping Record icon.
Recording will stop after
approximately one minute.
Motion Recording
To set MOTION ACTIVATED RECORDING,
Go to Advanced Settings in App >
SENSITIVITY SETTINGS to select options.
The Advanced Settings will ask for the
admin password; default password is
123456. You can change the default
password within the Advanced Settings.
NOTE: Do not submerge camera in water. STRANGULATION HAZARD: Infants have STRANGLED
in power cords. Keep power cords more than 3 feet away from cribs. When using your equipment,
always follow basic safety precautions to reduce the risk of fire, electric shock and injury to persons.
Illustrations are for reference only. Actual product specifications may vary.
For additional precautions and product information, please see owner's manual at
www.ALCWireless.com/support.
Wireless
Made Simple.
ALCWireless.com
LIVE VIEWING
LIVE VIEW
1 Tap preview PICTURE.
PINCH AND ZOOM: To zoom in or
out, use the simple pinch and
zoom gesture with this app.
FEATURES
Tap to CAPTURE screen
Tap to turn volume ON/OFF in the
images in Live View.
Live View mode.
Images automatically save
to smartphone's camera roll
Tap to RETURN to the
or gallery.
main page.
Tap to RECORD. One-minute
(approx.) recordings save to To speak into your Android
microSD card on the side of or Apple device to the camera's
camera; see diagram page for speaker, tap and hold this icon
location (microSD card not
and speak; the voice will be
included).
heard through the camera's
speaker.
ADVANCED SETTINGS
Tap SETTINGS icon and then
tap ADVANCE to see the
Advanced Feature options:
• Sensitivity Setting
(Motion Recording)
• Email Setting
• SDCard Setting
Camera 2 (Live Video)
Connected
• Recording Setting
Camera 2 (Live Video)
Connected
1280x720
P2P, N=1, 15.00FPS
SCAN
For detailed installation and setup, please refer to the
TO VIEW
Model AWF11 complete User's Guide available on our website:
COMPLETE
www.ALCWireless.com/support
USER'S GUIDE
