INSTALLATION

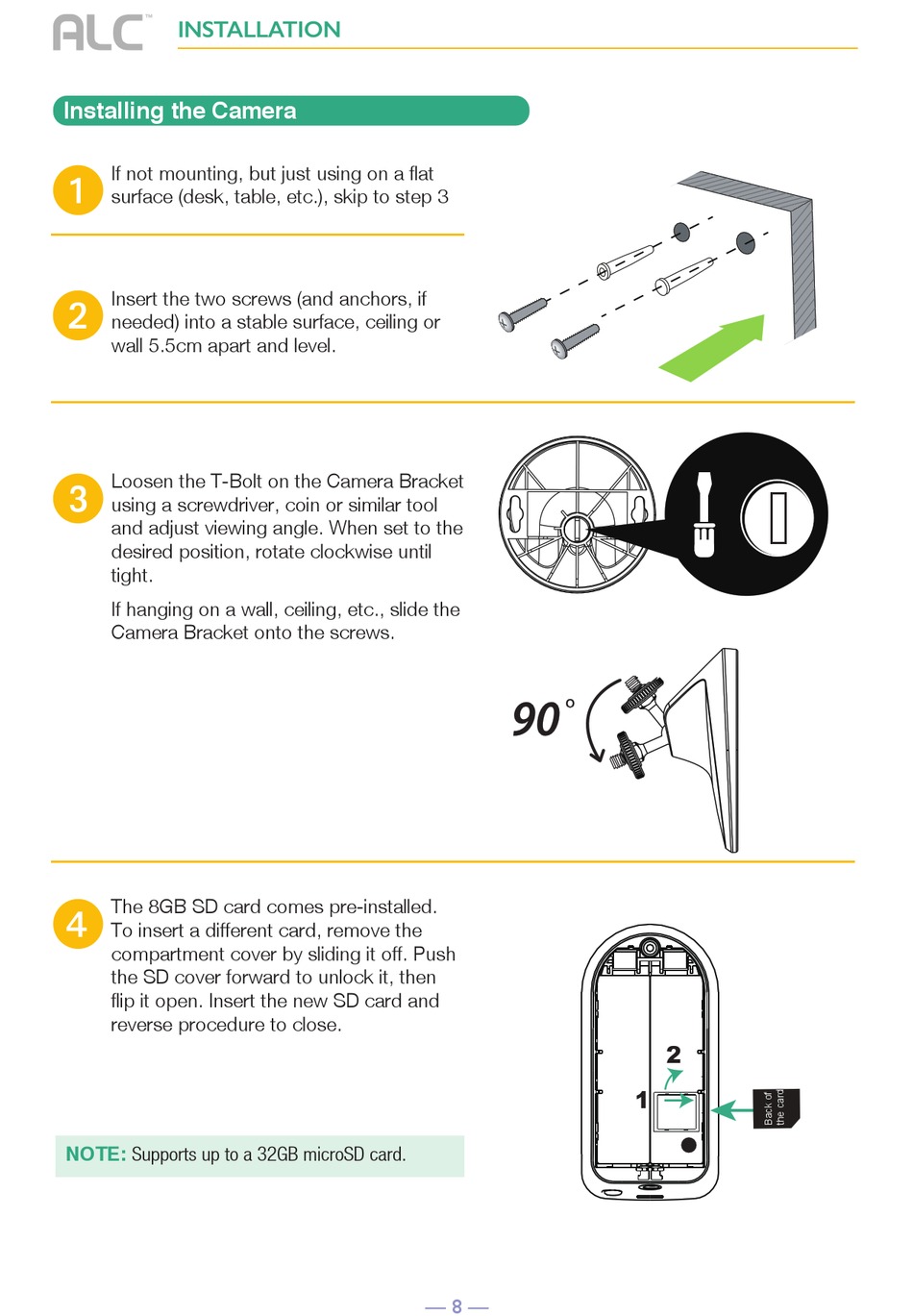

Installing the Camera

If not mounting, but just using on a flat
u
surface (desk, table, etc.), skip to step 3
Insert the two screws (and anchors, if
v
needed) into a stable surface, ceiling or
wall 5.5cm apart and level.
Loosen the T-Bolt on the Camera Bracket
w
using a screwdriver, coin or similar tool
and adjust viewing angle. When set to the
desired position, rotate clockwise until
tight.
If hanging on a wall, ceiling, etc., slide the
Camera Bracket onto the screws.
The 8GB SD card comes pre-installed.
x
To insert a different card, remove the
compartment cover by sliding it off. Push
the SD cover forward to unlock it, then
flip it open. Insert the new SD card and
reverse procedure to close.
NOTE:
Supports up to a 32GB microSD card.
— 8 —
2
1
