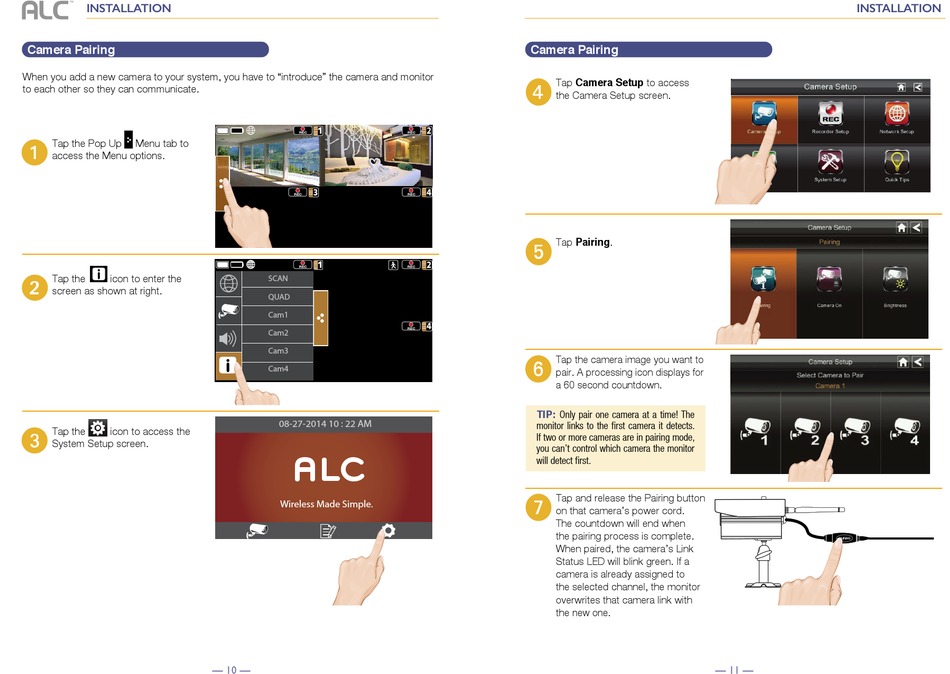

Camera Pairing

When you add a new camera to your system, you have to "introduce" the camera and monitor
to each other so they can communicate.
Tap the Pop Up Menu tab to
u
access the Menu options.
Tap the icon to enter the
v
screen as shown at right.
Tap the icon to access the
w
System Setup screen.
REC
3
REC
Motion
REC
status
SCAN
QUAD
Cam1
Pop up
menu tab
Cam2
Cam3
Cam4
08-27-2014 10 : 22 AM
ALC
Wireless Made Simple.
— 10 —
Camera Pairing
Tap Camera Setup to access
x
the Camera Setup screen.
2
REC
4
REC
Tap Pairing.
y
2
REC
4
REC
Tap the camera image you want to
U
pair. A processing icon displays for
a 60 second countdown.
TIP:
Only pair one camera at a time! The
monitor links to the first camera it detects.
If two or more cameras are in pairing mode,
you can't control which camera the monitor
will detect first.
Tap and release the Pairing button
V
on that camera's power cord.
The countdown will end when
the pairing process is complete.
When paired, the camera's Link
Status LED will blink green. If a
camera is already assigned to
the selected channel, the monitor
overwrites that camera link with
the new one.
