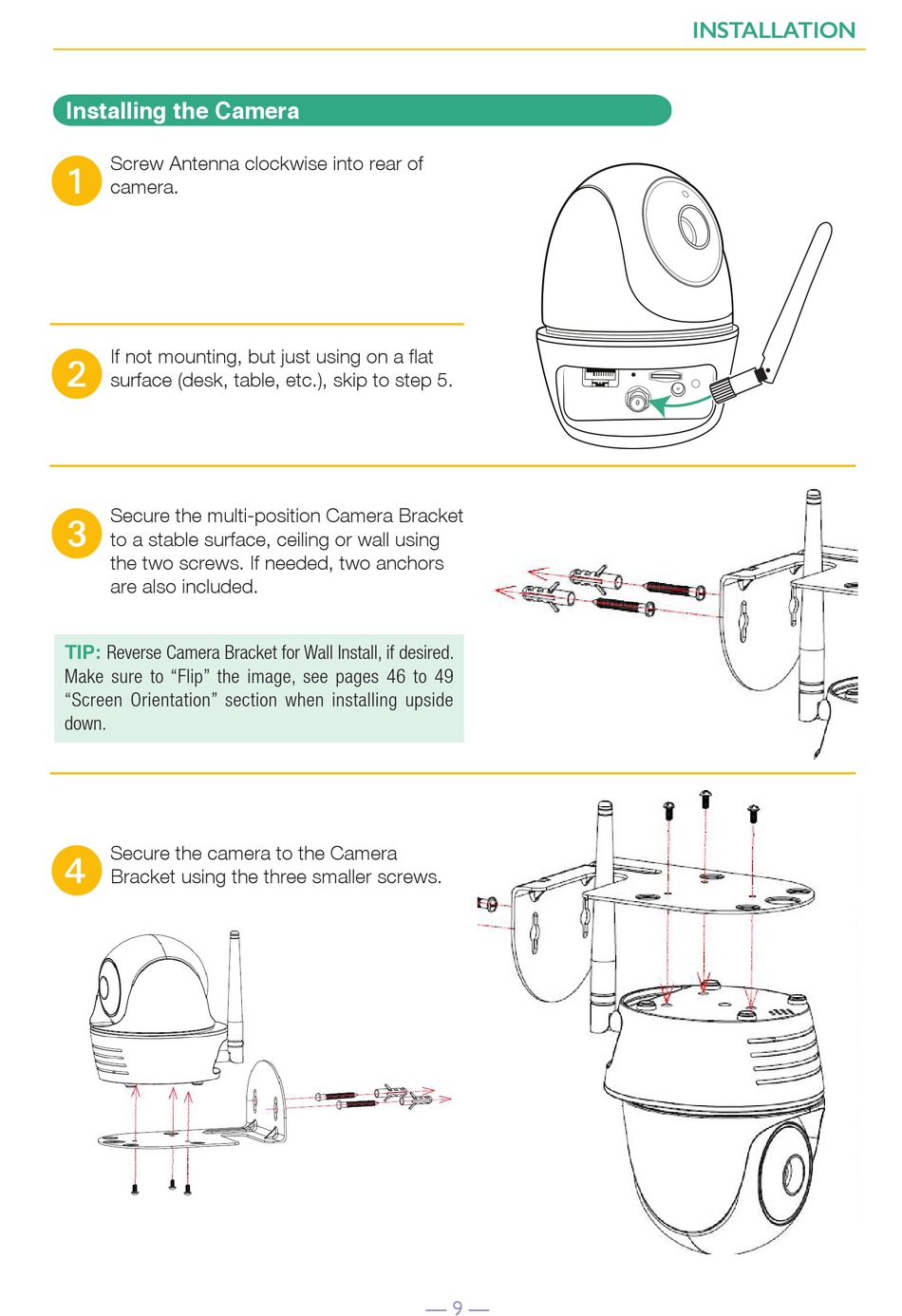

Installing the Camera

Screw Antenna clockwise into rear of
u
camera.
If not mounting, but just using on a flat
v
surface (desk, table, etc.), skip to step 5.
Secure the multi-position Camera Bracket
w
to a stable surface, ceiling or wall using
the two screws. If needed, two anchors
are also included.
TIP:
Reverse Camera Bracket for Wall Install, if desired.
Make sure to "Flip" the image, see pages 46 to 49
"Screen Orientation" section when installing upside
down.
Secure the camera to the Camera
x
Bracket using the three smaller screws.
— 9 —
