INSTALLATION

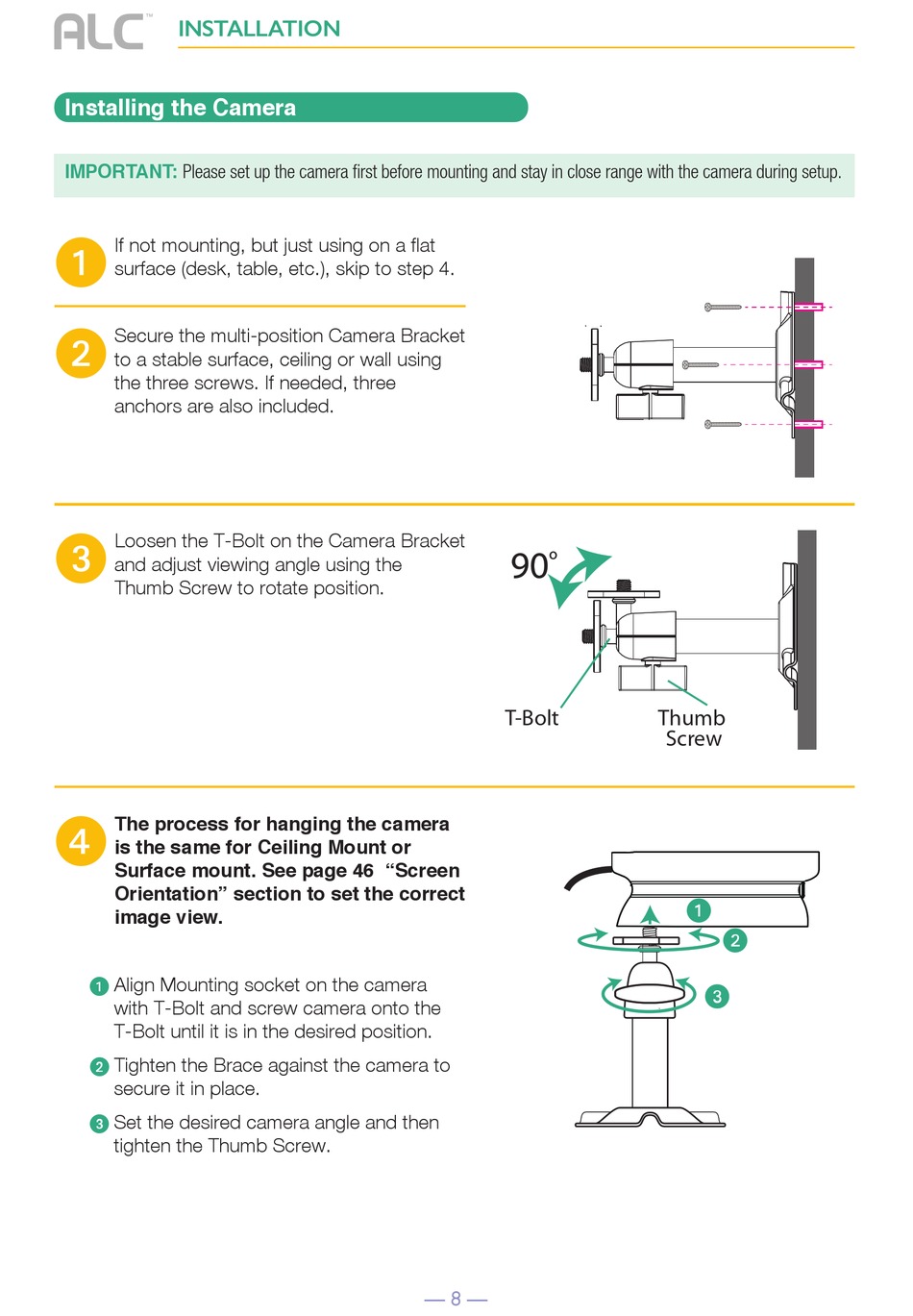

Installing the Camera

IMPORTANT:
Please set up the camera first before mounting and stay in close range with the camera during setup.
If not mounting, but just using on a flat
u
surface (desk, table, etc.), skip to step 4.
Secure the multi-position Camera Bracket
v
to a stable surface, ceiling or wall using
the three screws. If needed, three
anchors are also included.
Loosen the T-Bolt on the Camera Bracket
w
and adjust viewing angle using the
Thumb Screw to rotate position.
The process for hanging the camera
x
is the same for Ceiling Mount or
Surface mount. See page 46 "Screen
Orientation" section to set the correct
image view.
Align Mounting socket on the camera
u
with T-Bolt and screw camera onto the
T-Bolt until it is in the desired position.
Tighten the Brace against the camera to
v
secure it in place.
Set the desired camera angle and then
w
tighten the Thumb Screw.
T-Bolt
— 8 —
Thumb
Screw
u
v
w
