E T C S o u r c e F o u r L E D Q u i c k G u i d e

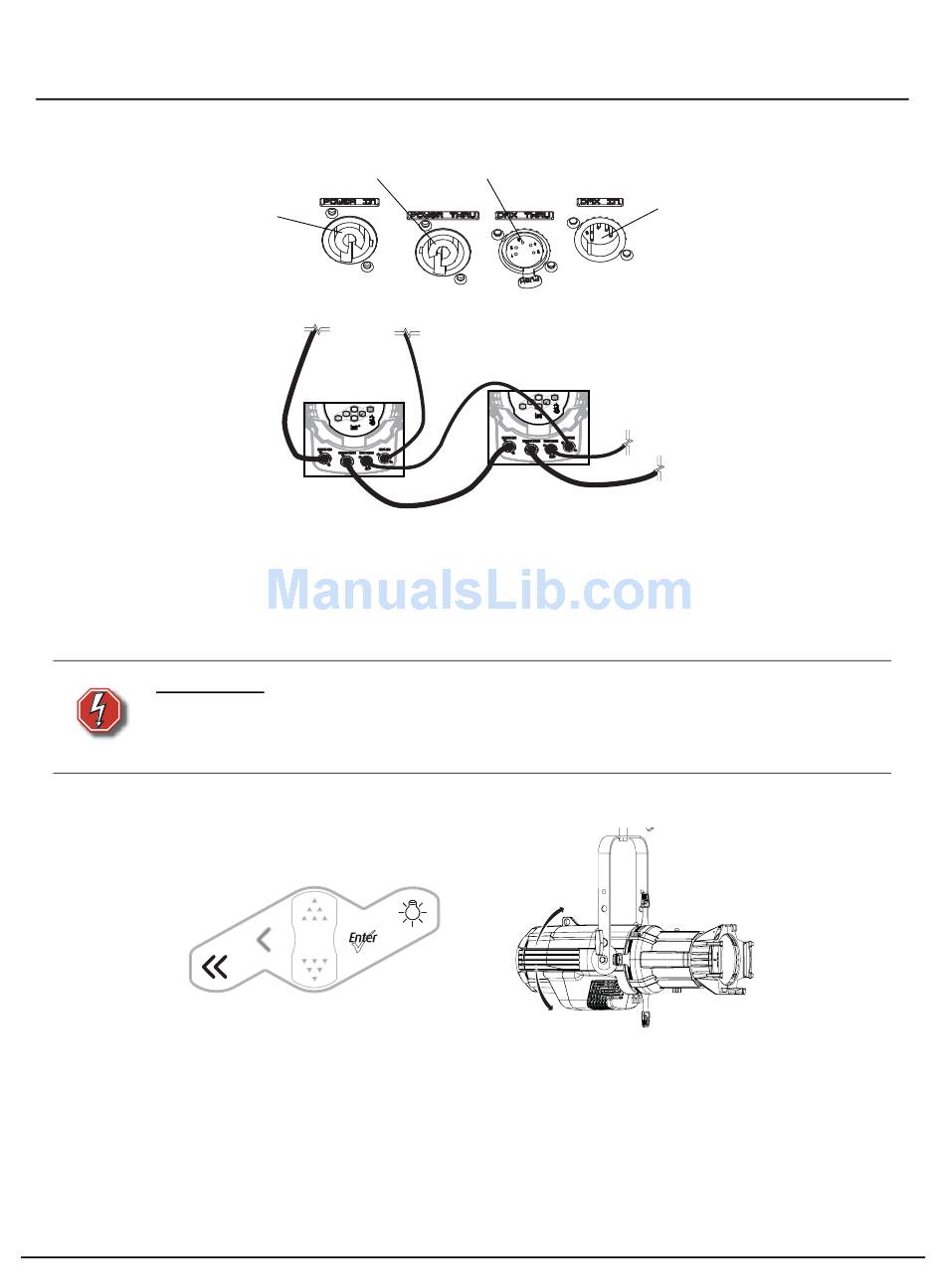

C o n n e c t
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
W A R N I N G :
F o c u s
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
Sou rc e Fo ur LED Pr of i le v 1. 3. 0 Qu ic k Gui de
Power Thru
Power In
Attach power cable to Power In.
Attach 5-pin XLR cable to DMX In (if using external control).
Connect power cable to AC power.
Plug XLR cable (if using) into data source.
Link additional fixtures via Power Thru and DMX Thru connectors.
No more than nine Source Four LED fixtures per circuit (non-dimming, 100
to 240 VAC, 50/60 Hz)
Up to 32 device loads on the DMX daisy-chain.
Disconnect Power and DMX before all cleaning and maintenance.
Supply power and wait for the fixture to boot up.
Press [Light Bulb] to open Presets & Sequences.
Select Focus and press [Enter] to turn on LED array.
Adjust fixture's position.
Once focus is set, press [Enter] to turn off LED array and then [Home] to return to home
screen.
DMX Thru
Page 3 of 7
Connect
DMX In
El ect r on ic T he at r e Con tr o ls , I nc.
