Roundup VCT-20 Deluxe Owner's Manual

Vertical contact toaset
Hide thumbs Also See for VCT-20 Deluxe:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual

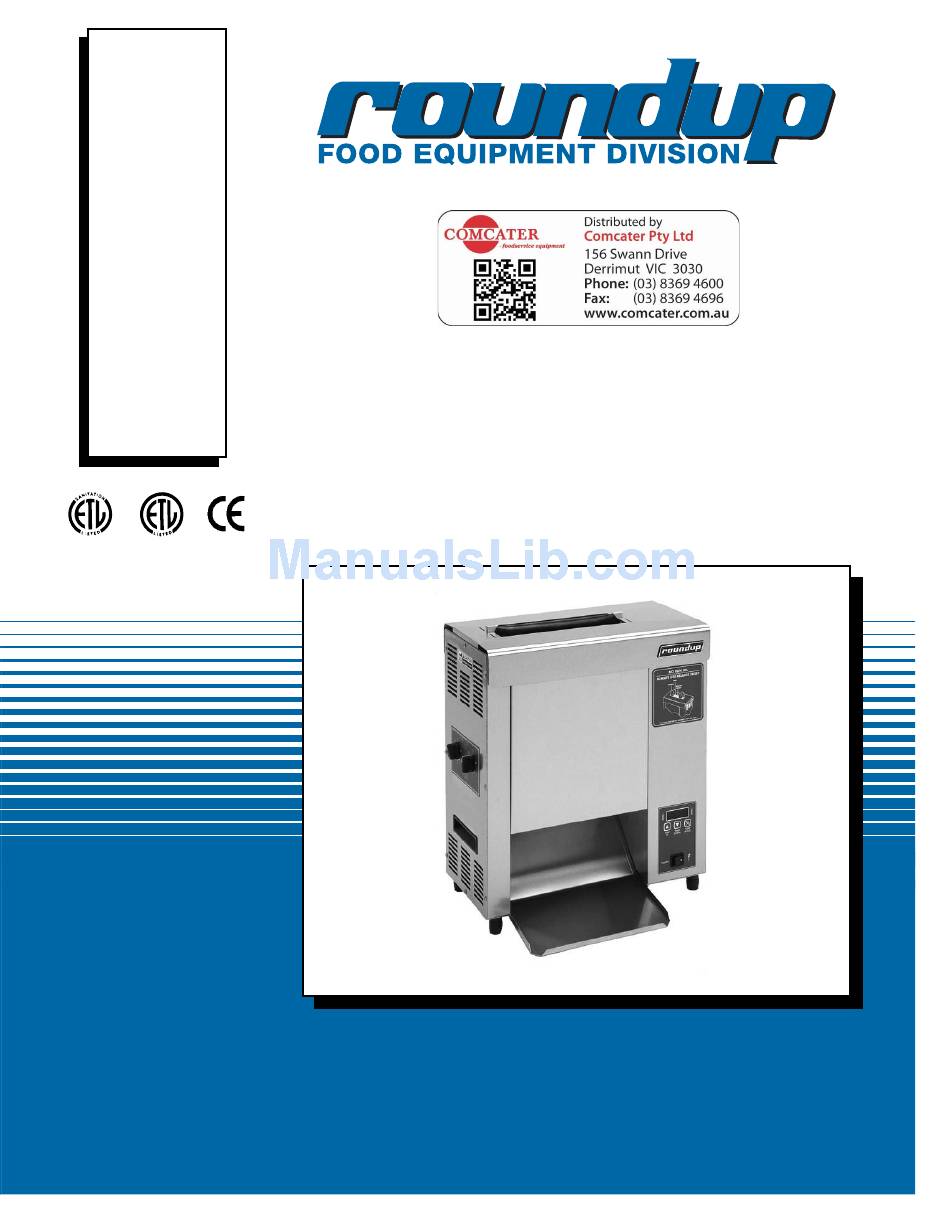

MANUFACTURING
NUMBERS:
9200580
9200584
9200582

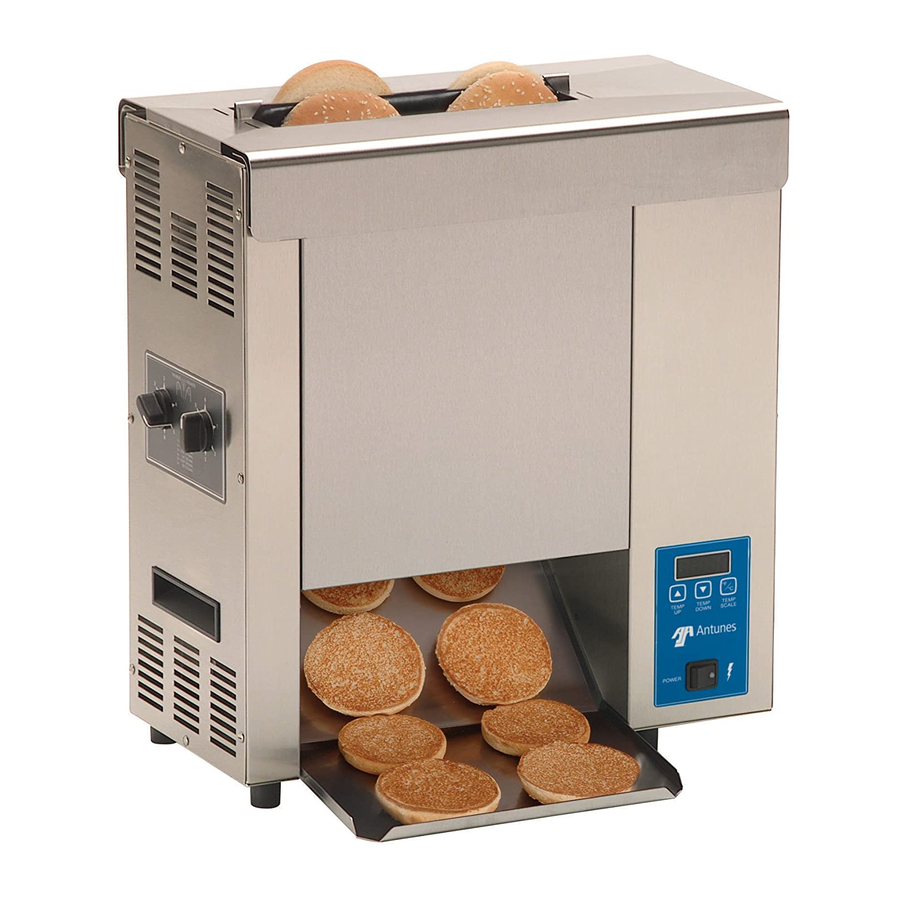

VERTICAL CONTACT
TOASTER
®
Model VCT-20 Deluxe
US
C
P/N 1010747 Rev. C 06/02
Owner
s Manual
'

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCT-20 Deluxe and is the answer not in the manual?

Questions and answers

Related Manuals for Roundup VCT-20 Deluxe

Summary of Contents for Roundup VCT-20 Deluxe

  • Page 1 MANUFACTURING NUMBERS: 9200580 9200584 9200582 VERTICAL CONTACT TOASTER ® Model VCT-20 Deluxe P/N 1010747 Rev. C 06/02 Owner s Manual ’...

  • Page 2: Table Of Contents

    • Installation of electrical service. factured from the finest materials available and is • Normal maintenance as outlined in this manual. assembled to Roundup’s strict quality standards. This unit has been tested at the factory to ensure depend- • Malfunction resulting from improper maintenance.

  • Page 3: Service/Technical Assistance

    Service/Technical Assistance Refer to the service agency directory included with your unit. If you experience any problems with the installation or operation of your unit, contact your local Roundup Authorized Service Agency Authorized Service Agency. Name: Fill in the information below and have it handy when Phone No.:...
  • Page 4 • This appliance shall not be cleaned with a • This equipment should be serviced by qualified water jet. personnel only. Contact the nearest Roundup authorized service facility for adjustment or repair. • If supply cord is damaged, it must be replaced by the manufacturer or its service agent, or a •...

  • Page 5: Specifications

    A.J. Antunes & Co. VERTICAL CONTACT TOASTER SPECIFICATIONS Electrical Specifications at Listed Voltages Electrical Cord & Plug Configurations Letter Description Configuration Voltage Watts Amps Hertz Code* 4000 19.2 50/60 Straight Twist Lock 4480 20.4 50/60 30 Amp, 250 VAC 5322 22.2 50/60 WARNING...

  • Page 6: Installation

    A.J. Antunes & Co. VERTICAL CONTACT TOASTER INSTALLATION 6. Install power cord to the bottom of unit (Figure 1) Unpacking (Mfg. No. 9200580 only). 1. Remove unit and all packing materials from ship- ping carton. Heat Shield 2. Open the included large box. It should contain the following: •...

  • Page 7: Equipment Setup

    A.J. Antunes & Co. VERTICAL CONTACT TOASTER Equipment Setup When placing the toaster into service, pay attention to the following guidelines. Heat Shield Clips • Make sure power to the unit is off and the toaster is at room temperature. Heat Shield •...

  • Page 8: Operation

    Hi-Limit Reset display and the unit is ready to toast buns. If “USE” does not appear in the window after warm-up period of approximately 30 minutes, contact your Roundup authorized service agency. Temperature Controls & 3. Drop buns into toaster (Figure 4). Cut sides of...

  • Page 9: Safety Features

    A.J. Antunes & Co. VERTICAL CONTACT TOASTER TEMPERATURE CONTROL PANEL “Heat On” LED will blink on/off during warm-up and when either platen or auxiliary heaters are calling for heat. NOTE: Setpoint Temperature refers to the desired temperature setting. Pressing the TEMP UP key will display the current plat- SP - P en heater temperature providing the platen temperature is over 440°F (227°C).

  • Page 10: Fault Messages

    After the toaster has cooled down, the unit must be POWER turned back on. If this condition repeats, contact your Roundup authorized service agency. FAULT MESSAGES (continued) Figure 10. “CHEC” Fault Message P/N 1010747 Rev C 06/02...

  • Page 11: Maintenance

    A.J. Antunes & Co. VERTICAL CONTACT TOASTER When this occurs, the temperature display will flash “PO” will flash when “CHEC” (Figure 10). To restart the unit, ambient incoming power drops below temperature must drop to 140°F (60°C) and the 190 Volts. Toaster shuts unit must be turned off, then back on.

  • Page 12: Replacing Belt Wraps

    A.J. Antunes & Co. VERTICAL CONTACT TOASTER Replacing Belt Wraps Interlock Switch 1. Turn rocker switch (power on/off) to OFF, unplug the power cord and allow the unit to cool down before proceeding. Conveyor 2. Remove the heat shield, Open the front conveyor Cover Assy.

  • Page 13: Stainless Steel Conveyor Belts

    A.J. Antunes & Co. VERTICAL CONTACT TOASTER Stainless Steel Conveyor Belts Rotation Upper Support Rod WARNING Turn the unit off, disconnect the power source and allow the unit to cool down before performing any service or maintenance on the unit. SERVICING CONVEYOR BELTS After a period of time, the conveyor links will wear and Large Link...

  • Page 14: Troubleshooting

    A.J. Antunes & Co. VERTICAL CONTACT TOASTER TROUBLESHOOTING WARNING To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equip- ment should be performed by qualified service personnel. The unit should be unplugged when servicing, except when electrical tests are required.
  • Page 15 A.J. Antunes & Co. VERTICAL CONTACT TOASTER TROUBLESHOOTING (continued) Problem Possible Cause Corrective Action Buns are sticking (contin- Conveyor Belt not turning, Verify Motor Chain is attached. Contact your ued). Conveyor Chain not turning. maintenance person or Authorized Service Agency. Buns are not toasting prop- Compression settings incorrect.

  • Page 16: Parts Identification

    A.J. Antunes & Co. VERTICAL CONTACT TOASTER PARTS IDENTIFICATION Parts Identification Interlock Switch Auxiliary Heater Auxiliary Heater Auxiliary Thermocouple Transformer Idler Sprocket Drive Chain Drive Sprocket Drive Sprocket PLATEN AUXILIARY Auxiliary Relay MADE IN USA MADE IN USA Platen Relay Model 240D45 Model 240D45 Solid State Relay...

  • Page 17: Replacement Parts

    A.J. Antunes & Co. VERTICAL CONTACT TOASTER REPLACEMENT PARTS Item Part No. Description Qty. Item Part No. Description Qty. 0011266 Conveyor Belt 7000165 Auxiliary Thermocouple Kit 0800204 1/2” Pitch Link, Small 7000200 Platen (240 VOLT) 0800121 3/4” Pitch Link, Large 2100252 Teflon Tape 2150117...
  • Page 18 A.J. Antunes & Co. VERTICAL CONTACT TOASTER P/N 1010747 Rev C 06/02...
  • Page 19 A.J. Antunes & Co. VERTICAL CONTACT TOASTER REPLACEMENT PARTS 25 amp Switchboard above relays Part Number: ANSP-4070106 P/N 1010747 Rev C 06/02...
  • Page 20 A.J. Antunes & Co. VERTICAL CONTACT TOASTER 30, 94 31, 95 P/N 1010747 Rev C 06/02...

  • Page 21: Wiring Diagrams

    A.J. Antunes & Co. VERTICAL CONTACT TOASTER WIRING DIAGRAM Pictorial Wiring Diagram WIRING DIAGRAM POWER 14 GA. AWM-105°C 14 GA. TFE-200°C 16 GA. AWM-105°C TEMP. * 16 GA. TFE-200°C CONTROL 22 GA. AWM-105°C TERMINAL # 18 GA. AWM-105°C BLOCK CAPACITOR WHT * T3 J2A INTERLOCK SWITCH...

  • Page 22: Warranty

    50 miles from the nearest authorized service agency is not covered under this warranty. 2. Roundup reserves the right to make changes in design or add any improvements on any product. The right is always reserved to modify equipment because of factors beyond our control and government regulations. Changes to update equip- ment do not constitute a warranty charge.
