Black Horse Model SEA Fury-EP Instruction Manual Book

Hide thumbs Also See for SEA Fury-EP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
SPECIFICATION
     Wingspan :
     Length
     Weight
Parts listing required (not included).
     Radio
     Servo
     Motor
     Battery
     Speed control : 40A
     Propeller : 10 x 5
Instruction Manual book
1,050mm
:
950 mm
:
1.05-1.15kg
: 04 channels.
: 04 mini servos.
: KMS 2814/06
: 3 Cells-Li-Poly-11.1V 2.250mAh
ITEM CODE:BH 126
41.34 in.
37.4 in.
2.31 - 2.53 Lbs.
Made in Vietnam.

Advertisement

Table of Contents
loading

Related Manuals for Black Horse Model SEA Fury-EP

Summary of Contents for Black Horse Model SEA Fury-EP

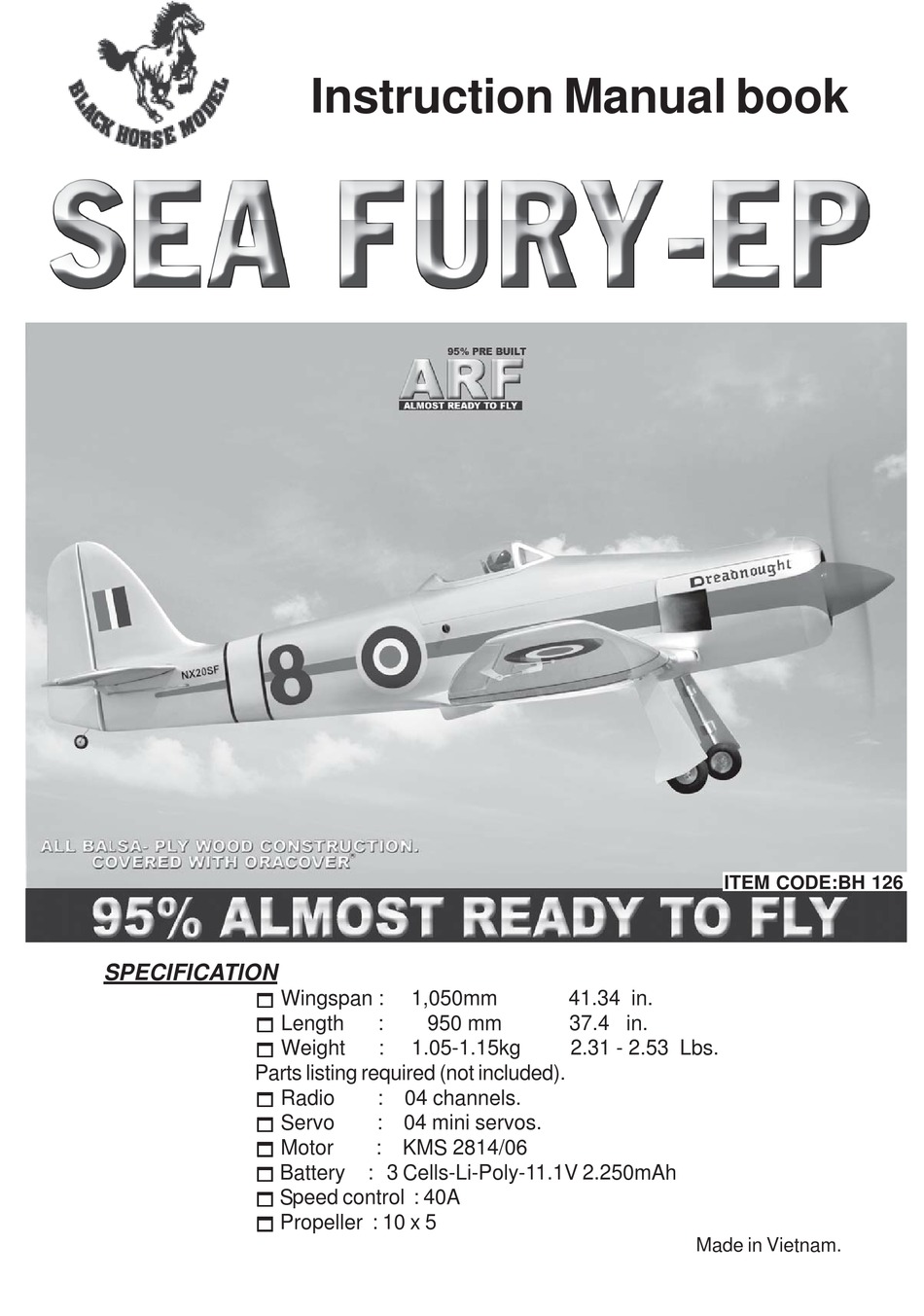

  • Page 1 Instruction Manual book ITEM CODE:BH 126 SPECIFICATION      Wingspan : 1,050mm 41.34 in.      Length 950 mm 37.4 in.      Weight 1.05-1.15kg 2.31 - 2.53 Lbs. Parts listing required (not included). ...

  • Page 2: Parts List

    SEA FURY - EP Instruction Manual Item code: BH126 This instruction manual is designed to help you build a great flying aeroplane. Please read this SEA FURY- EP manual thoroughly before starting assembly of your . Use the parts listing below to identify all parts.

  • Page 3: Safety Precaution

    SEA FURY - EP Instruction Manual Item code: BH126 Caution: this model is not a toy! If you are a beginner to this type of powered model, please ask an experienced model flyer for help and support. If you attempt to operate the model without knowing what you are doing you could easily injure yourself or somebody else.
  • Page 4 SEA FURY - EP Instruction Manual Item code: BH126 REPLACEMENT LARGE PARTS D. Rudder. A. Fuselage. E. Aluminium wing dihedral brace. B. Wing panel(B1& B2). F. Decal sheet. C . Horizontal stabilizer(C1&C2). REPLACEMENT SMALL PARTS 1.Landing gear. 2. Wheels 3.Door mounting wheel 4.

  • Page 5: Installing The Aileron Servos

    SEA FURY - EP Instruction Manual Item code: BH126 I. AILERON. Assemble then apply drops of thin C/A to center of hinge,on both sides. 1.INSTALLING THE AILERON SERVOS.   1) Install the rubber grommets and brass eyelets onto the aileron servos. Bottom side Top side Aileron.
  • Page 6 SEA FURY - EP Instruction Manual Item code: BH126 Servo tray. 2x10mm.  3) Using the thread as a guide and using masking tape, tape the servo lead to the end Secure. of the thread: carefully pull the thread out. When you have pulled the servo lead out, re- move the masking tape and the servo lead from the thread.

  • Page 7: Installing The Aileron Linkages

    SEA FURY - EP Instruction Manual Item code: BH126 Bottom side Repeat the procedure for the other wing half. MAIN GEAR INSTALATION. PARTS REQUIRED Aileron control horn INSTALLING THE AILERON p l a s t i c 2 x 10mm LINKAGES.
  • Page 8 SEA FURY - EP Instruction Manual Item code: BH126 A+B Epoxy PLUS glue 2 x10mm Secure Secure.
  • Page 9 SEA FURY - EP Instruction Manual Item code: BH126 P l a s t i c strap Silicon. P l a s t i c strap C/A glue. Bottom side. C/A glue. Repeat the procedure for the other wing half.

  • Page 10: Installing The Spinner

    SEA FURY - EP Instruction Manual Item code: BH126 INSTALLING ELECTRIC MOTOR. See pictures below: Front view. 3x 15mm Secure. INSTALLING THE SPINNER. Install the spinner backplate, propeller and spinner cone. The spinner cone is held in place using two 3mm x 12mm wood screws. Front view.

  • Page 11: Horizontal Stabilizer Installation

    SEA FURY - EP Instruction Manual Item code: BH126 Secure. Servo elevator HORIZONTAL STABILIZER INSTALLATION. Horizontal stabilize installation .  See picture below. Secure. SERVO ELEVATOR AND RUDDER  1. Install the rubber grommets and brass collets into the elevator servo. Test fit the servo into the servo tray.
  • Page 12 SEA FURY - EP Instruction Manual Item code: BH126 Epoxy glue. Push Epoxy glue. C/A glue. Bottom side.

  • Page 13: Elevator Control Horn Installa- Tion

    SEA FURY - EP Instruction Manual Item code: BH126 Top side. A+ B Epoxy Plus glue. Bottom side ELEVATOR CONTROL HORN INSTALLA- TION. Elevator control horn install as same as the way of aileron control horn. Please see pic- tures below. Control horn of Elevator.

  • Page 14: Elevator Pushrod Installation

    SEA FURY - EP Instruction Manual Item code: BH126 Elevator pushrod ELEVATOR PUSHROD INSTALLATION. VERTICAL STABILIZER INSTALLATION.  Elevator pushrod install as same as the way of aileron pushrod. See picture below. Rudder servo install as same as method of elevator servo.

  • Page 15: Rudder Control Horn Installa- Tion

    SEA FURY - EP Instruction Manual Item code: BH126 Top side. Cut the covering away from the slot. Temporary pin to Bottom side. Elevator pushrod keep hinge centered. RUDDER CONTROL HORN INSTALLA- Assemble then apply drops of thin TION. C/A to center of hinge,on both sides. Rudder control horn install as same as the way of aileron control horn.

  • Page 16: Rudder Pushrod Installation

    SEA FURY - EP Instruction Manual Item code: BH126 Rudder pushrod Rudder Elevator pushrod Control horn. Plastic parts of pushrod. RUDDER PUSHROD INSTALLATION.  Rudder pushrod install as same as the way of aileron pushrod. Cut. Rudder C/A glue pushrod.

  • Page 17: Wing Attachment

    SEA FURY - EP Instruction Manual Item code: BH126 *** Test fit the aluminium tube dihedral brace into each wing haft. The brace should slide in Bottom side. easily. If not, use 220 grit sand around the edges and ends of the brace until it fits prop- E l e v a t o r erly.
  • Page 18 SEA FURY - EP Instruction Manual Item code: BH126  3. Insert two wing panels as pictures Installing the fuselage top hatch as same as below. picture below. Left side Insert and secure Top side Plastic parts for bottom fuselage. 3 x 10mm Secure.
  • Page 19 SEA FURY - EP Instruction Manual Item code: BH126 Accurately mark the balance point on the top of the wing on both sides of the fuselage. The balance point is located 80mm back from the leading edge. This is the balance point at which your model should balance for your first flights.

  • Page 20: Control Throws

    SEA FURY - EP Instruction Manual Item code: BH126 CONTROL THROWS.       1) We highly recommend setting up a plane using the control throws listed.       2) The control throws should be meas- ured at the widest point of each control sur- face.
