Black Horse Model Sea Futy Instruction Manual Book

Black Horse Model Sea Futy Instruction Manual Book

Arf
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SPECIFICATION
     Wingspan :
     Length
     Weight
Parts listing required (not included).
     Radio
     Servo :
     Engine :
Instruction Manual book
1,671 mm
:
1,620 mm
:
4.8 kg
:
08 channels.
8 Servos + 2 servos Retract (HITEC HS-75BB)
20-22 CC Gas
65.79 in.
63.78 in.
10.56 Lbs.
Made in Vietnam.
ITEM CODE:BH113.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sea Futy and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model Sea Futy

Summary of Contents for Black Horse Model Sea Futy

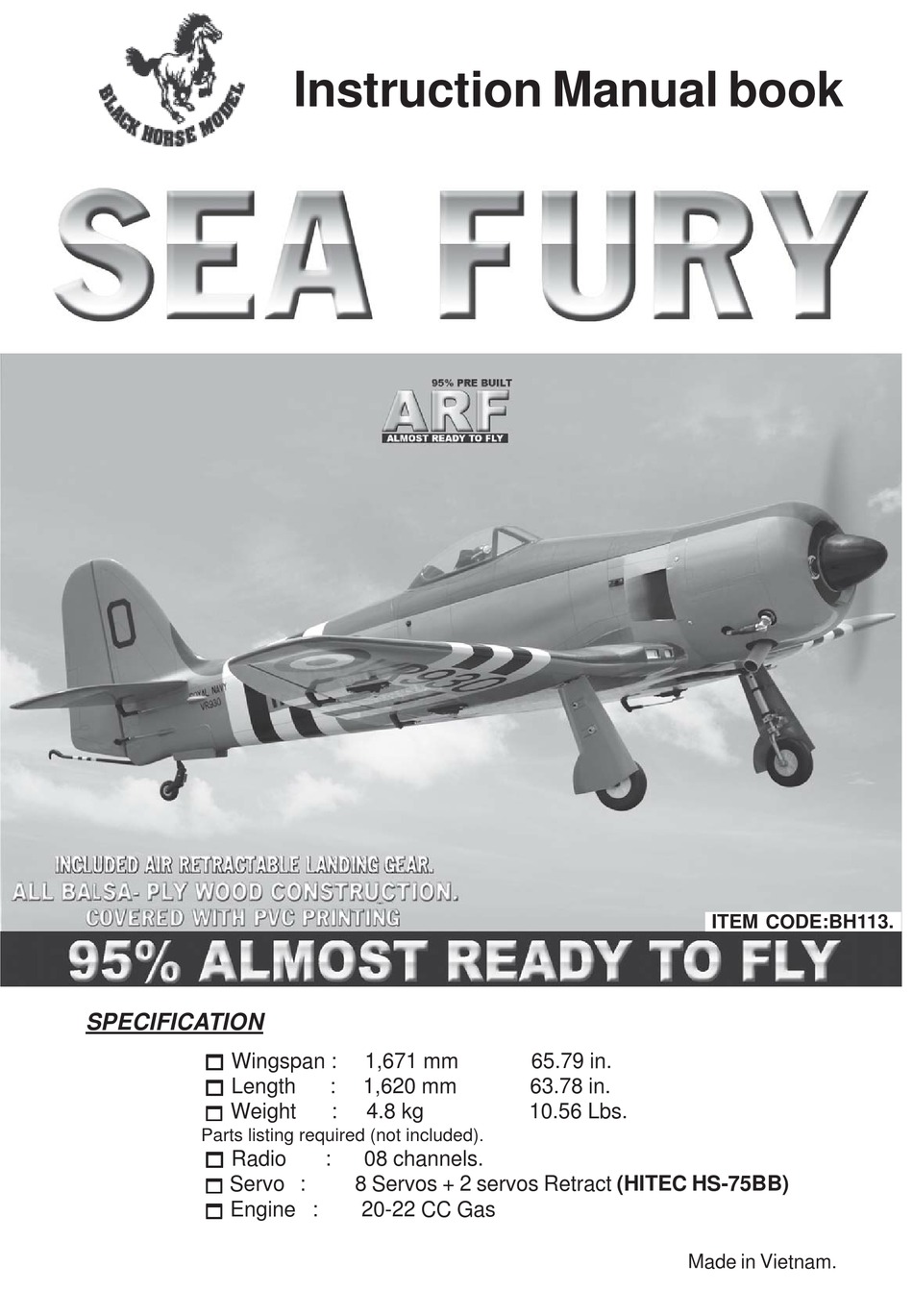

  • Page 1 Instruction Manual book ITEM CODE:BH113. SPECIFICATION      Wingspan : 1,671 mm 65.79 in.      Length 1,620 mm 63.78 in.      Weight 4.8 kg 10.56 Lbs. Parts listing required (not included). ...
  • Page 2 SEA FURY - Item code:BH113 INSTRUCTION MANUAL. This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your SEA FURY. Use the parts listing below to identify all parts. WARNING.

  • Page 3: Safety Precaution

    SEA FURY - Item code:BH113 INSTRUCTION MANUAL. Caution: this model is not a toy! If you are a beginner to this type of powered model, please ask an experienced model flyer for help and support. If you attempt to operate the model without knowing what you are doing you could easily injure yourself or somebody else.

  • Page 4: Installing The Aileron Servos

    SEA FURY - Item code:BH113 INSTRUCTION MANUAL. REPLACEMENT SMALL PARTS 1.Retract main gear. 2. Door mounting wheel. Bottom side 3. Spinner. 5. Plastic for tail gear. 6. Wheels. 7. Fuel tank. 8. Tail gear set. 9. Connectors. 10. Tie wrap. Flap I.
  • Page 5 SEA FURY - Item code:BH113 INSTRUCTION MANUAL. Temporary pin to keep hinge centered.  3) Drill 1,6mm pilot holes through the block Assemble then apply drops of thin of wood for each of the four mounting screws C/A to center of hinge,on both sides. provided with the servo.

  • Page 6: Installing The Aileron Linkages

    SEA FURY - Item code:BH113 INSTRUCTION MANUAL. 2.INSTALLING THE AILERON CONTROL HORN. Aileron control horn  2. Attach the clevis to the outer hole in the control horn. Install a silicone tube on the clevis.  3. Plug the aileron servo into the receiver and center the servo.

  • Page 7: Installing The Flap Servos

    SEA FURY - Item code:BH113 INSTRUCTION MANUAL. II. FLAP. 1. INSTALLING THE FLAP SERVOS Cut. Flap 2.INSTALLING THE FLAP CONTROL. Flap Install control horn as same as picture below as same as the way of aileron. Control horn of Flap. A+B Epoxy PLUS glue Repeat the procedure for the other wing...
  • Page 8 SEA FURY - Item code:BH113 INSTRUCTION MANUAL. Control horn of the flap INSTALLING THE FLAP LINKAGES. Installing the aileron linkages as pictures below. 100 mm Bottom side. bend Repeat the procedure for the other wing half. INSTALLING AIR RETRACTABLE LANDING GEAR. 3 x 15mm.
  • Page 9 SEA FURY - Item code:BH113 INSTRUCTION MANUAL. Mark point. 3x15mm Secure. Secure.
  • Page 10 SEA FURY - Item code:BH113 INSTRUCTION MANUAL. 5 x 35mm. Secure M3 Lock nut 3 x 16 mm Secure...
  • Page 11 SEA FURY - Item code:BH113 INSTRUCTION MANUAL. Secure M3 Lock nut. Lock. Drill a hole 3.5mm diameter Drill a hole Lock. 3.5mm diameter...
  • Page 12 SEA FURY - Item code:BH113 INSTRUCTION MANUAL. Connector. Connector. Secure.

  • Page 13: Installing The Engine Mount

    SEA FURY - Item code:BH113 INSTRUCTION MANUAL. INSTALLING THE ENGINE. See pictures below: Bottom side Repeat the procedure for the other wing half. INSTALLING THE ENGINE MOUNT. See pictures below: 60mm 5x80mm Front view Drill a hole 6mm diameter...
  • Page 14 SEA FURY - Item code:BH113 INSTRUCTION MANUAL. INSTALLING THE THROTTLE - PUSHROD.  1. Install one adjustable metal connector Secure. through the third hole out from the center of one servo arm, enlarge the hole in the servo arm using a 2mm drill bit to accommodate the servo connector.

  • Page 15: Installing The Stopper Assembly

    SEA FURY - Item code:BH113 INSTRUCTION MANUAL. When the stopper assembly is installed in the tank, the top of the vent tube should rest just below the top surface of the tank. It should not touch the top of the tank. Secure.
  • Page 16 SEA FURY - Item code:BH113 INSTRUCTION MANUAL.  7) Using a modeling knife, cut 3 lengths of fuel line 150mm long. Connect 2 lines to the 2 vent tubes and 1 line to the fuel pickup tube in the stopper. ...
  • Page 17 SEA FURY - Item code:BH113 INSTRUCTION MANUAL. Cut. Trim and cut.  2. While keeping the back edge of the cowl flush with the marks, align the front of COWLING. the cowl with the crankshaft of the engine. The front of the cowl should be positioned so the ...

  • Page 18: Elevator Installation

    SEA FURY - Item code:BH113 INSTRUCTION MANUAL. Secure Front view. ELEVATOR INSTALLATION. INSTALLING THE SPINNER. SERVO INSTALLATION.  1. Install the rubber grommets and brass Install the spinner backplate, propeller and collets into the elevator servo. Test fit the servo spinner cone.

  • Page 19: Horizontal Stabilizer

    SEA FURY - Item code:BH113 INSTRUCTION MANUAL. Bottom side. ELEVATOR CONTROL HORN INSTALLA- TION. Elevator control horn install as same as the way of aileron control horn. Please see pic- tures below. HORIZONTAL STABILIZER. Control horn of elevator. See pictures below: Top side Cut the covering away from the slot.
  • Page 20 SEA FURY - Item code:BH113 INSTRUCTION MANUAL. 9 mm 277 mm C/A glue.
  • Page 21 SEA FURY - Item code:BH113 INSTRUCTION MANUAL. Bottom side ELEVATOR PUSHROD HORN INSTALLATION. bend 90 degree  Elevator pushrod install as same as the way of aileron pushrod. M2 lock Cut. Elevator pushrod Bottom side. Elevator pushrod. Elevator pushrod...

  • Page 22: Rudder Servo Installation

    SEA FURY - Item code:BH113 INSTRUCTION MANUAL. Snap keeper. Snap keeper. RUDDER SERVO INSTALLATION. Rudder servo install as same as method of elevator servo. See picture below: Rudder Rudder servo control horn. R u d d e r servo Bottom side. RUDDER CONTROL HORN INSTALLATION.

  • Page 23: Mounting The Tail Wheel Bracket

    SEA FURY - Item code:BH113 INSTRUCTION MANUAL. Assemble then apply drops of thin C/A to center of hinge,on both sides. R u d d e r pushrod. MOUNTING THE TAIL WHEEL BRACKET.      1. Set the tail wheel assembly in place Rudder on the plywood plate.
  • Page 24 SEA FURY - Item code:BH113 INSTRUCTION MANUAL.      3. Secure the tail wheel bracket in place Plastic part for tail gear using four 3mm x 15mm screws. Be careful not to overtighten the screws. Secure R e m o v e covering 70mm Tail...
  • Page 25 SEA FURY - Item code:BH113 INSTRUCTION MANUAL. Epoxy glue. Epoxy glue. bend 90 degree C/A glue Rudder pushrod C/A glue...
  • Page 26 SEA FURY - Item code:BH113 INSTRUCTION MANUAL. Snap keeper. Bottom side. Elevator pushrod Elevator Tail gear C/A glue. pushrod pushrod. Rudder pushrod. Plastic parts of elevator pushrod. C/A glue. Cut. Bottom side...

  • Page 27: Installing The Switch

    SEA FURY - Item code:BH113 INSTRUCTION MANUAL. INSTALLING THE SWITCH.       1) Cut out the switch hole using a modeling Tie wrap. knife. Use a 2mm drill bit and drill out the two mounting holes through the fuselage side. ...

  • Page 28: Wing Attachment

    SEA FURY - Item code:BH113 INSTRUCTION MANUAL. See picture wing attach to fuselage. Receiver Wing bolt. WING ATTACHMENT. Locate the aluminium wing dihedral brace. 25mm 600mm *** Test fit the aluminium tube dihedral brace into each wing haft. The brace should slide in easily.
  • Page 29 SEA FURY - Item code:BH113 INSTRUCTION MANUAL. BALANCING.       1) It is critical that your airplane be bal- anced correctly. Improper balance will cause your plane to lose control and crash. THE CENTER OF GRAVITY IS LOCATED 92MM BACK FROM THE LEADING EDGE OF THE WING.

  • Page 30: Control Throws

    SEA FURY - Item code:BH113 INSTRUCTION MANUAL. CONTROL THROWS.       1) We highly recommend setting up a plane using the control throws listed.       2) The control throws should be meas- ured at the widest point of each control sur- face.
