Black Horse Model sea fury-ep Instruction Manual

95% almost ready to fly
Hide thumbs Also See for sea fury-ep:
Table of Contents

Advertisement

Quick Links

Download this manual

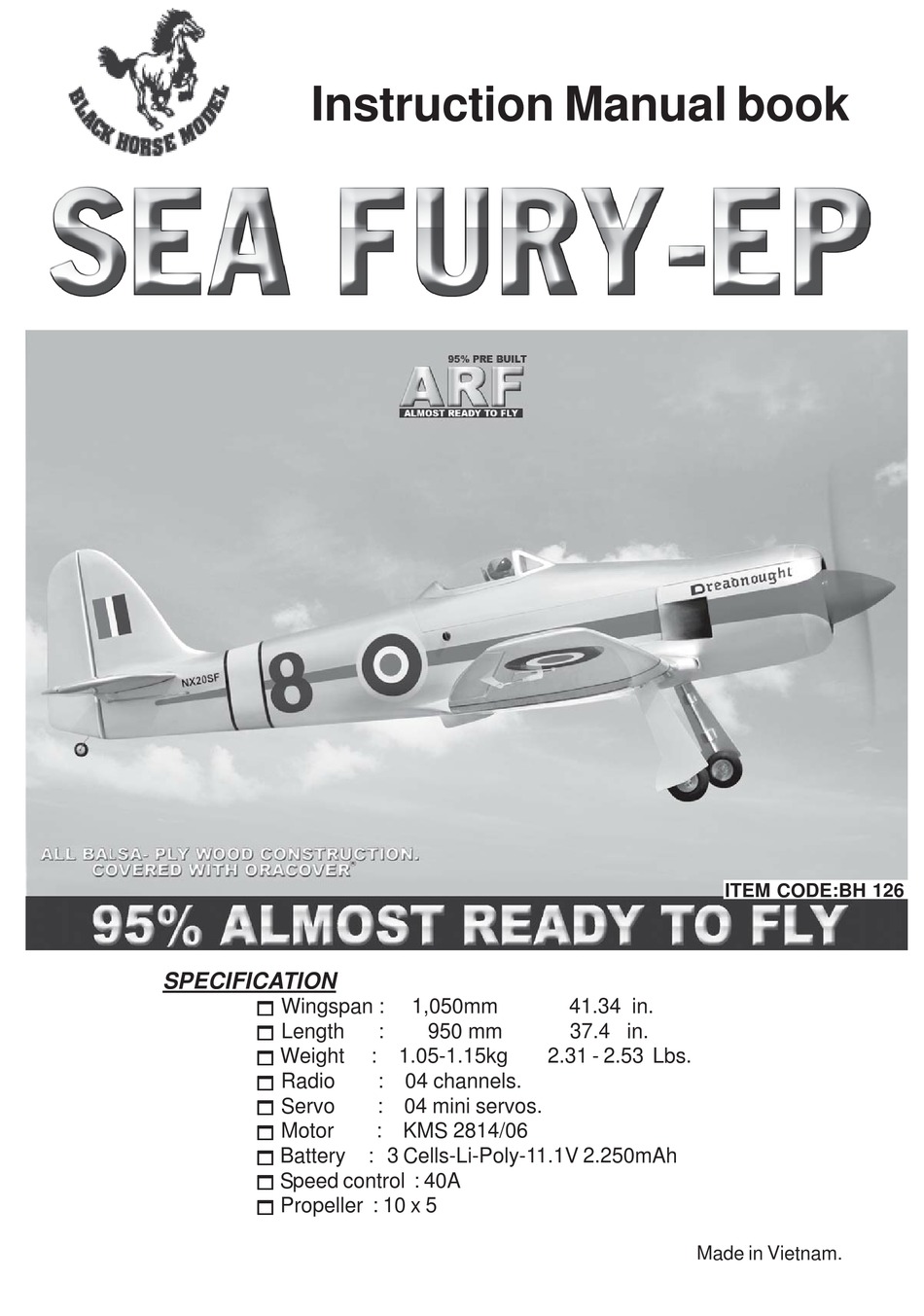

Instruction Manual book
SPECIFICATION
     Wingspan :
     Length
     Weight
     Radio
     Servo
     Motor
     Battery
     Speed control : 40A
     Propeller : 10 x 5
1,050mm
:
950 mm
:
1.05-1.15kg
: 04 channels.
: 04 mini servos.
: KMS 2814/06
: 3 Cells-Li-Poly-11.1V 2.250mAh
41.34 in.
37.4 in.
2.31 - 2.53 Lbs.
Made in Vietnam.
ITEM CODE:BH 126

Advertisement

Table of Contents
loading

Related Manuals for Black Horse Model sea fury-ep

Summary of Contents for Black Horse Model sea fury-ep

  • Page 1 Instruction Manual book ITEM CODE:BH 126 SPECIFICATION      Wingspan : 1,050mm 41.34 in.      Length 950 mm 37.4 in.      Weight 1.05-1.15kg 2.31 - 2.53 Lbs.      Radio : 04 channels.
  • Page 2 SEA FURY - EP Instruction Manual Item code: BH126 This instruction manual is designed to help you build a great flying aeroplane. Please read this SEA FURY- EP manual thoroughly before starting assembly of your . Use the parts listing below to identify all parts.

  • Page 3: Safety Precaution

    SEA FURY - EP Instruction Manual Item code: BH126 Caution: this model is not a toy! If you are a beginner to this type of powered model, please ask an experienced model flyer for help and support. If you attempt to operate the model without knowing what you are doing you could easily injure yourself or somebody else.
  • Page 4 SEA FURY - EP Instruction Manual Item code: BH126 REPLACEMENT LARGE PARTS A. Fuselage. D. Rudder. E. Aluminium wing dihedral brace. B. Wing panel. F. Decal sheet. C . Horizontal stabilizer. REPLACEMENT SMALL PARTS 1.Landing gear. 2. Wheels 3.Door mounting wheel 4.

  • Page 5: Installing The Aileron Servos

    SEA FURY - EP Instruction Manual Item code: BH126 I. AILERON. 1.INSTALLING THE AILERON SERVOS.   1) Install the rubber grommets and brass eyelets onto the aileron servos. C/A glue. Top side C/A glue. Bottom side C/A glue. Bottom side Aileron Aileron.
  • Page 6 SEA FURY - EP Instruction Manual Item code: BH126  2) Using a modeling knife, remove the cov- ering at possition show below. Secure Servo tray. Servo tray. Electric wire. Remove covering thread Servo tray. 2x10mm.  3) Using the thread as a guide and using masking tape, tape the servo lead to the end Secure.

  • Page 7: Installing The Aileron Linkages

    SEA FURY - EP Instruction Manual Item code: BH126 INSTALLING THE AILERON CONTROL HORN. Aileron control horn Aileron control horn INSTALLING THE AILERON LINKAGES. Installing the aileron linkages as pictures below. 40mm A+B Epoxy PLUS glue A+B Epoxy PLUS glue Bottom side Repeat the procedure for the other wing half.
  • Page 8 SEA FURY - EP Instruction Manual Item code: BH126 MAIN GEAR INSTALATION. PARTS REQUIRED p l a s t i c 2 x 10mm strap 2 x10mm Remove covering Secure.
  • Page 9 SEA FURY - EP Instruction Manual Item code: BH126 P l a s t i c strap C/A glue. Secure C/A glue. P l a s t i c strap...
  • Page 10 SEA FURY - EP Instruction Manual Item code: BH126 3x 15mm Secure. Silicon. Front view. Bottom side. INSTALLING THE BATTERY. See pictures below: Repeat the procedure for the other wing half. INSTALLING ELECTRIC MOTOR. See pictures below: Front view.

  • Page 11: Installing The Spinner

    SEA FURY - EP Instruction Manual Item code: BH126 Secure. INSTALLING THE SPINNER. Install the spinner backplate, propeller and spinner cone. The spinner cone is held in place using two 3mm x 12mm wood screws. SERVO ELEVATOR AND RUDDER  1.

  • Page 12: Horizontal Stabilizer Installation

    SEA FURY - EP Instruction Manual Item code: BH126 HORIZONTAL STABILIZER INSTALLATION. Horizontal stabilize installation .  See picture below. Push Carbon tube. 96 mm Epoxy glue. 75 mm...
  • Page 13 SEA FURY - EP Instruction Manual Item code: BH126 C/A glue. C/A glue. C/A glue. Epoxy glue. C/A glue. C/A glue. A+ B Epoxy Plus glue. Bottom side.

  • Page 14: Elevator Control Horn Installa- Tion

    SEA FURY - EP Instruction Manual Item code: BH126 Bottom side C/A glue. C/A glue. ELEVATOR CONTROL HORN INSTALLA- TION. Elevator control horn install as same as the way of aileron control horn. Please see pic- tures below. Control horn of Elevator. C/A glue.

  • Page 15: Elevator Pushrod Installation

    SEA FURY - EP Instruction Manual Item code: BH126 VERTICAL STABILIZER INSTALLATION. ELEVATOR PUSHROD INSTALLATION. See picture below.  Elevator pushrod install as same as the way Rudder servo install as same as method of of aileron pushrod. elevator servo. See picture below: Rudder servo.

  • Page 16: Rudder Pushrod Installation

    SEA FURY - EP Instruction Manual Item code: BH126 A+B Epoxy PLUS glue. C/A glue. C/A glue. Top side. Rudder Control horn. RUDDER PUSHROD INSTALLATION. Bottom side. Elevator pushrod  Rudder pushrod install as same as the way of aileron pushrod. RUDDER CONTROL HORN INSTALLA- TION.
  • Page 17 SEA FURY - EP Instruction Manual Item code: BH126 Rudder C/A glue pushrod. Bottom side. E l e v a t o r Rudder pushrod pushrod. INSTALLING THE RECEIVER AND BATTERY.       1. Plug the servo leads and the switch lead into the receiver.

  • Page 18: Wing Attachment

    SEA FURY - EP Instruction Manual Item code: BH126 WING ATTACHMENT. Left side Locate the aluminium wing dihedral brace. Aluminium tube. 9 mm 307 mm *** Test fit the aluminium tube dihedral brace into each wing haft. The brace should slide in easily.
  • Page 19 SEA FURY - EP Instruction Manual Item code: BH126 Installing the fuselage top hatch as same as picture below. C/A glue Insert and secure Bottom side Top side Plastic parts for bottom fuselage. Top side BALANCING.       1) It is critical that your airplane be bal- anced correctly.

  • Page 20: Control Throws

    SEA FURY - EP Instruction Manual Item code: BH126 Accurately mark the balance point on the top CONTROL THROWS. of the wing on both sides of the fuselage. The       1) We highly recommend setting up a balance point is located 80mm back from plane using the control throws listed.
