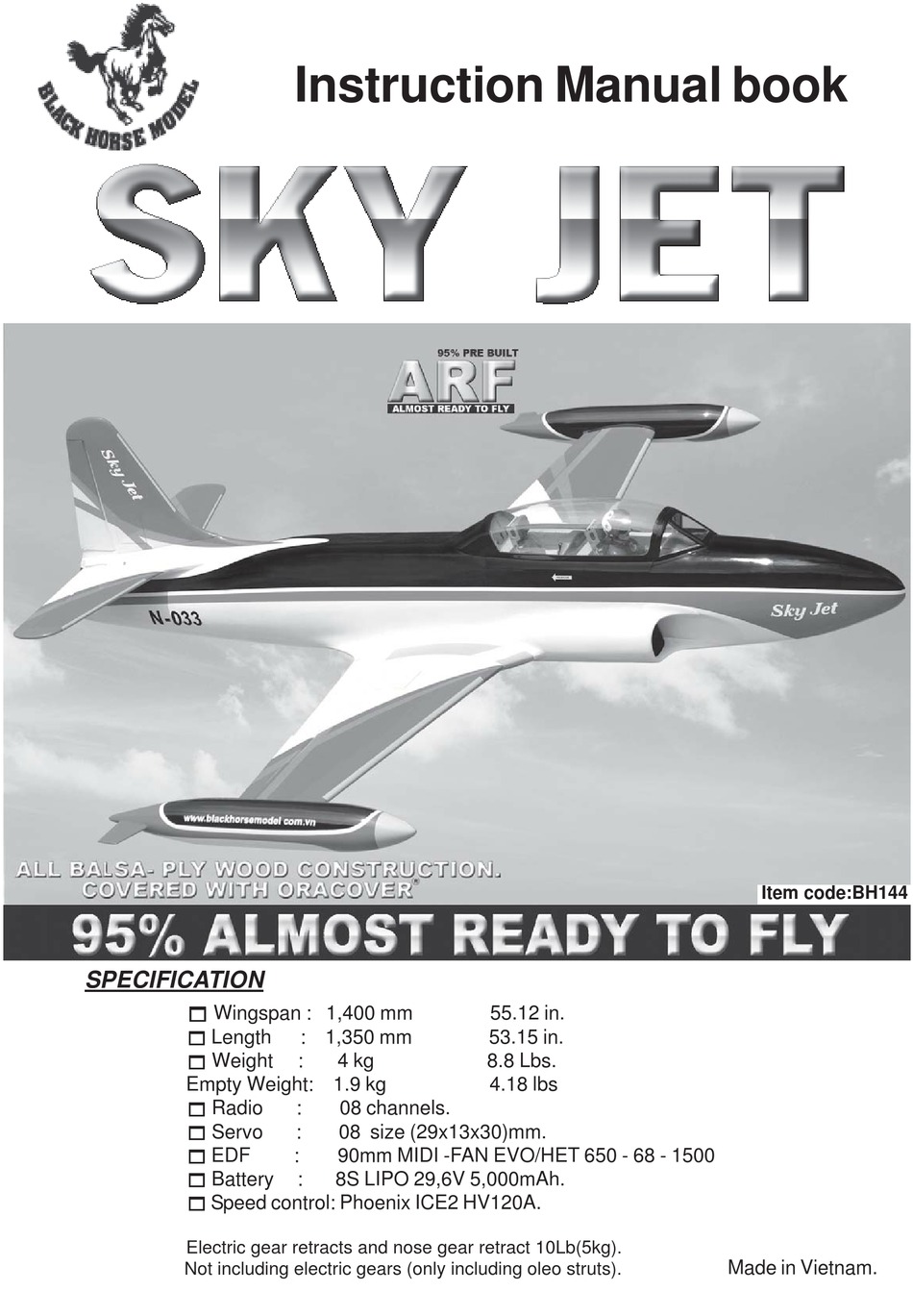

SPECIFICATION
    
Wingspan : 1,400 mm
     Length
     Weight
Empty Weight: 1.9 kg
     Radio
     Servo
     EDF
     Battery
     Speed control: Phoenix ICE2 HV120A.
Electric gear retracts and nose gear retract 10Lb(5kg).
Not including electric gears (only including oleo struts).
Instruction Manual book
: 1,350 mm
:
4 kg
:
08 channels.
:
08 size (29x13x30)mm.
:
90mm MIDI -FAN EVO/HET 650 - 68 - 1500
:
8S LIPO 29,6V 5,000mAh.
55.12 in.
53.15 in.
8.8 Lbs.
4.18 lbs
Item code:BH144
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BH144 Sky Jet and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model BH144 Sky Jet

Summary of Contents for Black Horse Model BH144 Sky Jet

  • Page 1 Instruction Manual book Item code:BH144 SPECIFICATION      Wingspan : 1,400 mm 55.12 in.      Length : 1,350 mm 53.15 in.      Weight 4 kg 8.8 Lbs. Empty Weight: 1.9 kg 4.18 lbs ...

  • Page 2: Parts List

    SKY JET - Item code: BH144 . INSTRUCTION MANUAL This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your SKY JET. Use the parts listing below to identify all parts.

  • Page 3: Safety Precaution

    SKY JET - Item code: BH144 . INSTRUCTION MANUAL Caution: this model is not a toy! If you are a beginner to this type of powered model, please ask an experienced model flyer for help and support. If you attempt to operate the model without knowing what you are doing you could easily injure yourself or somebody else.
  • Page 4 SKY JET - Item code: BH144 . INSTRUCTION MANUAL REPLACEMENT LARGE PARTS A. Fuselage. E.Vertical stabilizer G. Decal sheet B. Wing panels. (B1,B2) F1. Carbon tube wing C.Plastic bomb top wing. (C1,C2) F2.Carbon tube horizontal stabilizer. D.Horizontal stabilizer.(D1,D2) REPLACEMENT SMALL PARTS 1.Oleo struts retracts 2.Oleo strut retract nose gear.

  • Page 5: Installing The Aileron Servos

    SKY JET - Item code: BH144 . INSTRUCTION MANUAL I. AILERON. Bottom side 1.INSTALLING THE AILERON SERVOS.   1) Install the rubber grommets and brass eyelets onto the aileron servos.  2. Using a modeling knife, remove the cov- ering servo tray.

  • Page 6: Installing The Aileron Linkages

    SKY JET - Item code: BH144 . INSTRUCTION MANUAL Electric wire A+B Epoxy Thread PLUS glue 2x10mm. Control horn the aileron. Secure Repeat the procedure for the other wing half. INSTALLING THE AILERON LINKAGES. Repeat the procedure for the other wing Installing the aileron linkages as pictures half.

  • Page 7: Installing The Flap Servos

    SKY JET - Item code: BH144 . INSTRUCTION MANUAL Secure. 2.INSTALLING THE FLAP CONTROL HORN. Flap control horn Repeat the procedure for the other wing half. II. FLAP SERVO. 1.INSTALLING THE FLAP SERVOS. A+B Epoxy PLUS glue Flap control 2x10mm. horn.
  • Page 8 SKY JET - Item code: BH144 . INSTRUCTION MANUAL 3. INSTALLING THE FLAP Only including oleo struts. LINKAGES. Installing the flap linkages as pictures 3x15mm below. M2 lock nut 40 mm Electric retract (not included) Bottom side. Flap Aileron. Repeat the procedure for the other wing half.
  • Page 9 SKY JET - Item code: BH144 . INSTRUCTION MANUAL 4x12mm 3x15mm Secure. Drill a hole 2.5mm Secure. Plastic bomb top wing. (C1,C2)
  • Page 10 SKY JET - Item code: BH144 . INSTRUCTION MANUAL Bottom side. Bottom side. C/A glue Top side. Top side. Repeat the procedure for the other gear. INSTALLING ELECTRIC EDF-90MM. (Not included) See pictures below:...

  • Page 11: Horizontal Stabilizer Installation

    SKY JET - Item code: BH144 . INSTRUCTION MANUAL Drill a hole HORIZONTAL STABILIZER ELEVATOR SERVOS INSTALLATION.  1. Install the rubber grommets and brass collets into the elevator servo. Test fit the servo into the servo tray.  2. Mount the servo to the tray using the mounting screws provided with your radio system.
  • Page 12 SKY JET - Item code: BH144 . INSTRUCTION MANUAL Cut the covering away from the slot. Temporary pin to keep hinge centered. Secure. Assemble then apply drops of thin C/A to center of hinge,on both sides. Bottom side. Servo tray. 2x10mm.

  • Page 13: Elevator Pushrod Installation

    SKY JET - Item code: BH144 . INSTRUCTION MANUAL Secure. Elevator control horn. Bottom side. ELEVATOR PUSHROD INSTALLATION.  Elevator pushrod install as same as the way of aileron pushrod. 35 mm ELEVATOR CONTROL HORN INSTALLATION. Elevator control horn install as same as the way of aileron control horn.
  • Page 14 SKY JET - Item code: BH144 . INSTRUCTION MANUAL Bottom side. Cacbon tube Epoxy 146mm glue.

  • Page 15: Vertical Stabilizer Installa- Tion

    SKY JET - Item code: BH144 . INSTRUCTION MANUAL VERTICAL STABILIZER INSTALLA- TION. See picture below: Top side. C/A glue. Cut the covering away from the slot. Temporary pin to Bottom side. keep hinge centered. Assemble then apply drops of thin Top side.

  • Page 16: Rudder Control Horn Installa- Tion

    SKY JET - Item code: BH144 . INSTRUCTION MANUAL Rudder servo install as same as method of 2x10mm. elevator servo. See picture below: Secure. RUDDER CONTROL HORN INSTALLA- TION. Rudder control horn install as same as the way of aileron control horn. Please see pic- tures below.

  • Page 17: Rudder Pushrod Installation

    SKY JET - Item code: BH144 . INSTRUCTION MANUAL Rudder pushrod. Control horn Rudder. RUDDER PUSHROD INSTALLATION.  Rudder pushrod install as same as the way of aileron pushrod. 35mm. Epoxy glue...
  • Page 18 SKY JET - Item code: BH144 . INSTRUCTION MANUAL Only Including Oleo Strut Nose Gear. 3x15mm 2x8mm 3x10mm C/A glue. Top side. Rudder pushrod Top side. S e c u r e 3x10mm. INSTALLING ELECTRIC NOSE GEAR RETRACT. See picture below: ( Electric Not Included.)
  • Page 19 SKY JET - Item code: BH144 . INSTRUCTION MANUAL Secure. S e c u r e 2x8mm. wire cable. wire cable. wire cable. INSTALLING SERVO NOSE GEAR. See picture below: Servo nose gear Servo nose gear 3x15mm.
  • Page 20 SKY JET - Item code: BH144 . INSTRUCTION MANUAL INSTALLING THE ESC-RECEIVER AND BATTERY.       1. Plug the servo leads and the switch lead into the receiver. You may want to plug an aileron extension into the receiver to make plugging in the aileron servo lead easier when you are installing the wing .

  • Page 21: Wing Attachment

    SKY JET - Item code: BH144 . INSTRUCTION MANUAL Receiver Battery of Receiver WING ATTACHMENT. UBEC 1.Locate the carbon tube wing dihedral brace. 12 mm 445mm. Bottom side.  2. Attach the carbon tube into the fuselage.
  • Page 22 SKY JET - Item code: BH144 . INSTRUCTION MANUAL Left wing. Secure Bottom side. See picture wing attach to fuselage.  3.Insert two wing panels as pictures below. Installing the fuselage hatch as same as pic- ture below. Top side.

  • Page 23: Control Throws

    SKY JET - Item code: BH144 . INSTRUCTION MANUAL *If possible, first attempt to balance the model Top side. by changing the position of the receiver bat- tery and receiver. If you are unable to obtain good balance by doing so, then it will be nec- essary to add weight to the nose or tail to achieve proper...

  • Page 24: Pre-Flight Check

    SKY JET - Item code: BH144 . INSTRUCTION MANUAL PRE-FLIGHT CHECK.       1) Completely charge your transmitter and receiver batteries before your first day of fly- ing.       2) Check every bolt and every glue joint in your plane to ensure that everything is tight and well bonded.
