Model 210-001 Corridor Telephone
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains sensitive
business and technical information that is confidential and proprietary to GAI-Tronics. GAI-Tronics
retains all intellectual property and other rights in or to the information contained herein, and such
information may only be used in connection with the operation of your GAI-Tronics product or system.
This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party.
General Information
The Model 210-001 Corridor Telephone offers standard
line-powered telephone operation in a rugged package,
including the following features:
•
Volume control handset with a 29-inch, swivel
armored cord
•
Brushed stainless steel housing
•
Ringer with loudness control
•
Less than 3 ½-inch depth (measured from the
mounting surface)
GAI-Tronics' Model 210-001 Corridor Telephone is
ideally suited for installation in any area requiring the
Americans with Disabilities Act maximum protrusion
depth of 4 inches (corridors, hallways, passageways,
etc.).
The Model 210-001 can be surface-mounted in any
indoor area requiring telephone communications. The
unit's rear mounting plate provides telephone line
access, eliminating visibility of, or access to the cabling.
Additionally, the Corridor Telephone is secured with
tamper-resistant hardware to prevent vandalism.
Installation Guidelines
When installing any GAI-Tronics telephone equipment, please adhere to the following guidelines to
ensure the safety of all personnel:
•
NEVER install telephone wiring during a lightning storm.
•
NEVER install telephone jacks in wet locations unless the jack is specifically designed for wet
locations.
GAI-Tronics Corporation 400 E. Wyomissing Ave. Mohnton, PA 19540 USA
610-777-1374
V
ISIT WWW
G A I - T R O N I C S ® C O R P O R A T I O N
A H U B B E L L C O M P A N Y
800-492-1212
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS

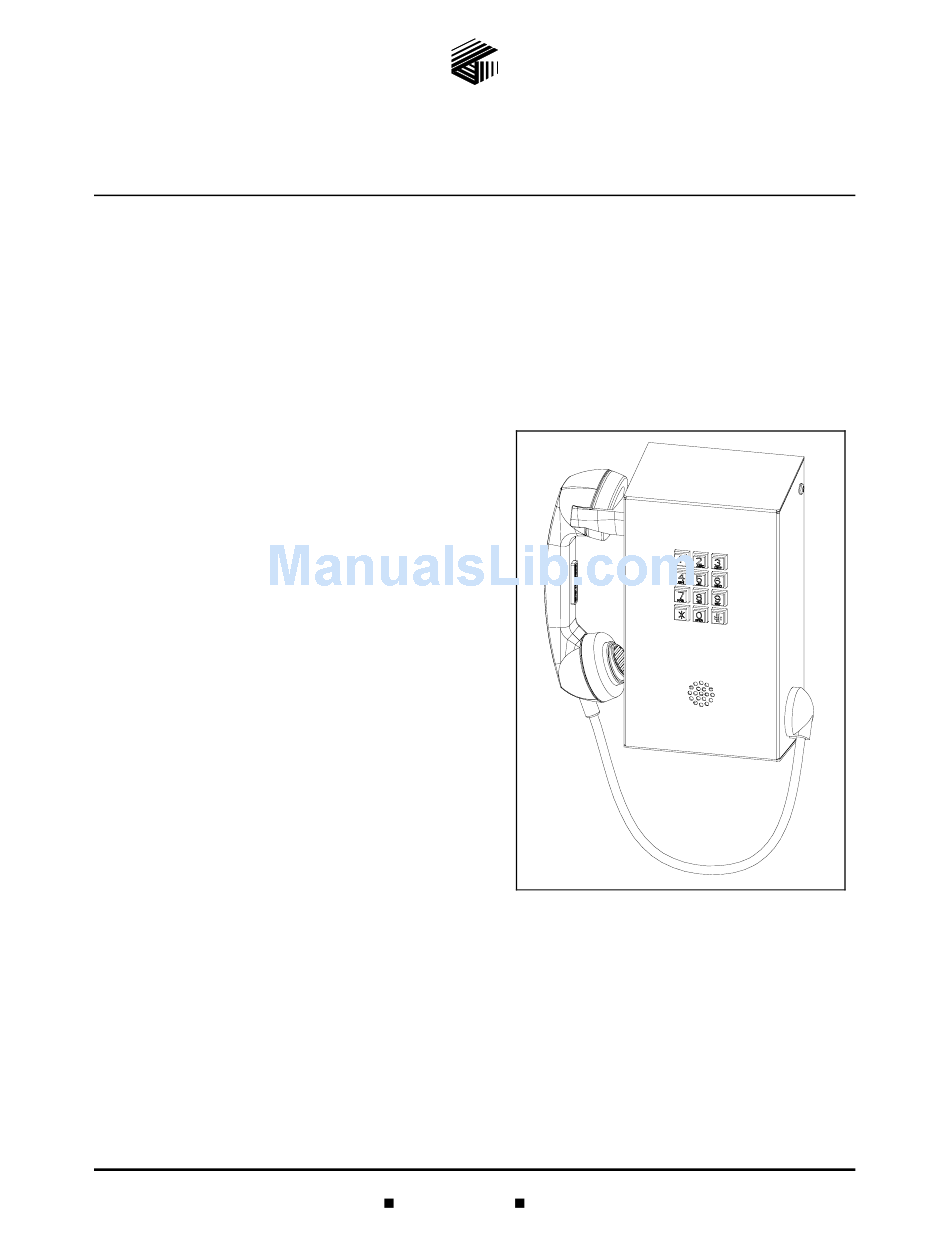

Figure 1. Model 210-001 Corridor Telephone
Fax: 610-796-5954
Pub. 42004-449B
Advertisement
Table of Contents
Related Manuals for GAI-Tronics 210-001
Summary of Contents for GAI-Tronics 210-001
-
Page 1: General Information
GAI-Tronics product or system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party. -
Page 2: Installation
Install UL Listed telephone line suppressor (customer-supplied) on the telephone line. Installation Mounting and Wiring Instructions 1. Use a GAI-Tronics Model 233-001 Security Screwdriver to remove the four tamper-resistant cover panel screws. 2. Remove the front cover assembly to expose the four mounting holes on the mounting panel. These holes accept #10-32 screws (customer provided). - Page 3 (if utilized). 6. Replace the front cover assembly and tighten the four front cover screws. 7. Check the telephone operation by calling to and from another telephone. Figure 4. Model 210-001 Outline Drawing f:\standard ioms - current release\42004 instr. manuals\42004-449b.doc 06/11...
-
Page 4: Operation
Pub. 42004-449B Model 210-001 Corridor Telephone Page: 4 of 9 Operation 1. Lift the handset to place a call. 2. The handset receiver volume control, which is located on the handset, can be adjusted to the desired level by pressing the handset pressbar. -
Page 5: Volume Control Jumper Setting
Pub. 42004-449B Model 210-001 Corridor Telephone Page: 5 of 9 Volume Control Jumper Setting The handset receiver volume control is factory set to default to its original setting (0 dB) when the telephone is hung up. To save the volume control setting, jumper J4, which is factory set at positions 2 and 3, must be moved to positions 1 and 2. -
Page 6: Preventive Maintenance
Maintenance Service If your telephone requires service, contact your GAI-Tronics Regional Service Center for a return authorization number (RA#). Equipment should be shipped prepaid to GAI-Tronics with a return authorization number and a purchase order number. If the equipment is under warranty, repairs will be made without charge. -
Page 7: Specifications
Pub. 42004-449B Model 210-001 Corridor Telephone Page: 7 of 9 Specifications Electrical Frequency response........................300–3,000 Hz Inter-digit pause ..........................100 ms Minimum loop current ........................20 mA Signaling tone (DTMF)....................100 ms tone duration Supervisory dc current ..............Minimum 20 mA dc; maximum 60 mA dc Supervisory dc voltage................ - Page 8 Pub. 42004-449B Model 210-001 Corridor Telephone Page: 8 of 9 User Instructions (USA) This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 9 Pub. 42004-449B Model 210-001 Corridor Telephone Page: 9 of 9 Replacement Parts & Accessories Part No. Description 10118-101 Handset assembly, 29-inch Armored Cord 51035-005A Replacement Keypad 61504-048 Keypad Cable Assembly 13707-013 Replacement Ringer with Volume Control 12542-002 Security Screws (pack of 15)
-
Page 10: Warranty
Warranty Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document.
