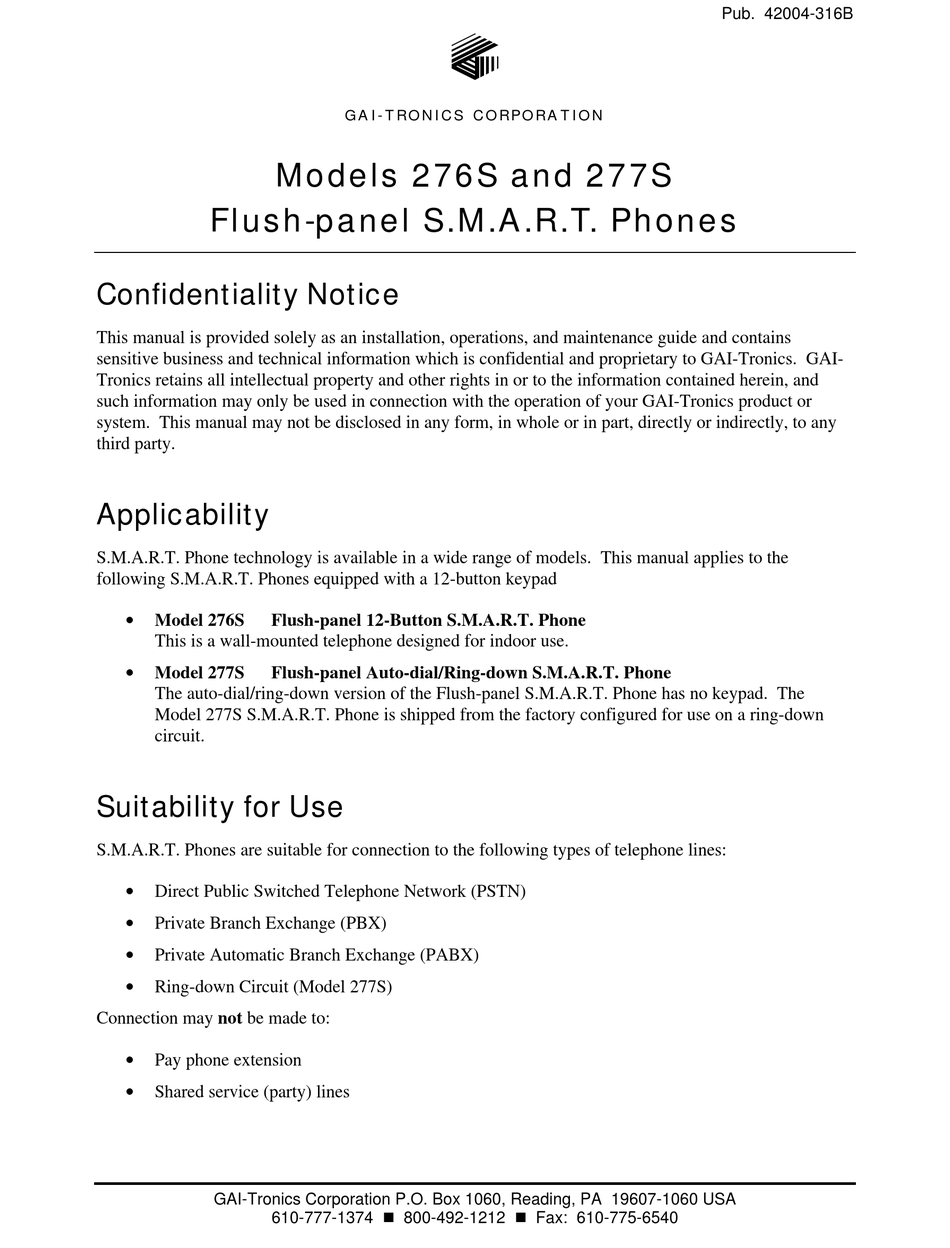

Models 276S and 277S
Flush-panel S.M.A.R.T. Phones
Confidentiality Notice
This manual is provided solely as an installation, operations, and maintenance guide and contains
sensitive business and technical information which is confidential and proprietary to GAI-Tronics. GAI-
Tronics retains all intellectual property and other rights in or to the information contained herein, and
such information may only be used in connection with the operation of your GAI-Tronics product or
system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any
third party.
Applicability
S.M.A.R.T. Phone technology is available in a wide range of models. This manual applies to the
following S.M.A.R.T. Phones equipped with a 12-button keypad
•
Model 276S Flush-panel 12-Button S.M.A.R.T. Phone
This is a wall-mounted telephone designed for indoor use.
•
Model 277S Flush-panel Auto-dial/Ring-down S.M.A.R.T. Phone
The auto-dial/ring-down version of the Flush-panel S.M.A.R.T. Phone has no keypad. The
Model 277S S.M.A.R.T. Phone is shipped from the factory configured for use on a ring-down
circuit.
Suitability for Use
S.M.A.R.T. Phones are suitable for connection to the following types of telephone lines:
•
Direct Public Switched Telephone Network (PSTN)
•
Private Branch Exchange (PBX)
•
Private Automatic Branch Exchange (PABX)
•
Ring-down Circuit (Model 277S)
Connection may not be made to:
•
Pay phone extension
•
Shared service (party) lines
