Confidentiality Notice .....................................................................................................................1
General Information .......................................................................................................................1
Installation Guidelines ....................................................................................................................1
User Instructions (USA) ......................................................................................................................... 3
User Instructions (Canada) CP-01, Issue 8, Part I: Section 14.1 ....................................................... 3
CP-01, Issue 8, Part I: Section 14.2 ...................................................................................................... 3
Installation ......................................................................................................................................4
Safety Guidelines ..................................................................................................................................... 4
Security Hardware .................................................................................................................................. 4
Conduit Installation Details (applicable to Models 341-001 & 351-001)............................................ 4
Model 226-002 ......................................................................................................................................... 6
Model 341-001 ......................................................................................................................................... 8
Model 351-001 ....................................................................................................................................... 10
Operation .......................................................................................................................................12
Volume Control Jumper Setting .......................................................................................................... 12
Specifications ................................................................................................................................12
Replacement Parts & Accessories ....................................................................................................... 14
GAI-TRONICS 3030 KUTZTOWN RD. READING, PA 19605 USA
610-777-1374 800-492-1212 Fax: 610-796-5954
V
ISIT WWW
G A I - T R O N I C S ®
A H U B B E L L C O M P A N Y
T
C
A B L E O F
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
O N T E N T S
Pub. 42004-339F
Advertisement
Table of Contents
Related Manuals for GAI-Tronics 226-002
Summary of Contents for GAI-Tronics 226-002
-
Page 1: Table Of Contents
Operation ............................12 Volume Control Jumper Setting ......................12 Specifications ..........................12 Replacement Parts & Accessories ....................... 14 GAI-TRONICS 3030 KUTZTOWN RD. READING, PA 19605 USA 610-777-1374 800-492-1212 Fax: 610-796-5954 ISIT WWW TRONICS COM FOR PRODUCT LITERATURE AND MANUALS... -
Page 2: Model 226-002, 341-001, And 351-001
GAI-Tronics product or system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party. - Page 3 ODEL NDUSTRIAL ELEPHONES GAI-Tronics recommends the following precautionary steps to protect the unit during installation: 1. Install this unit using appropriate Div. 2 wiring methods. 2. To ensure that the unit is vandal-resistant, run the subscriber line inside conduit. 3. Use the conduit entry located on the bottom of the enclosure to prevent any condensation forming inside the conduit from dripping into the unit.
-
Page 4: User Instructions (Usa)
Pub. 42004-339F 3 of 14 226-002, 341-001, 351-001 D . 2 I ODEL NDUSTRIAL ELEPHONES User Instructions (USA) This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 5: Installation
Do not install jacks in wet locations unless the jack is specifically designed for wet locations. Security Hardware The Model 226-002 is vandal-resistant, with the front panel attached to its enclosure with security screws. A GAI-Tronics Model 233-001 Security Screwdriver or Torx T-25 security head tip (sold separately) is recommended for installing the security screws. - Page 6 Pub. 42004-339F 5 of 14 226-002, 341-001, 351-001 D . 2 I ODEL NDUSTRIAL ELEPHONES Figure 1. Bottom entry conduit installation details (RECOMMENDED for non-metallic enclosures) Figure 2. Top entry conduit installation details (NOT RECOMMENDED) e:\standard ioms - current release\42004 instr. manuals\42004-339f.doc...
-
Page 7: Model 226-002
NDUSTRIAL ELEPHONES Model 226-002 Mounting and wiring of the Model 226-002 must be in accordance with Div. 2 installation standard practices. 1. Use a GAI-Tronics Model 233-001 Screwdriver to loosen the eight front panel security screws. 2. Remove the front panel assembly to expose the eight mounting holes. These holes accept 3/8-inch diameter bolts. - Page 8 5. Replace the front panel assembly and tighten the eight front panel screws. 6. Check the telephone operation by calling to and from another telephone. Figure 4. Model 226-002 Mounting Details e:\standard ioms - current release\42004 instr. manuals\42004-339f.doc 07/14...
-
Page 9: Model 341-001
. 42004-339F 8 of 14 226-002, 341-001, 351-001 D . 2 I ODEL NDUSTRIAL ELEPHONES Model 341-001 Mounting and wiring of the Model 341-001 must be in accordance with Div. 2 installation standard practices. 1. Remove the four front panel screws using a standard Phillips screwdriver, and remove the front panel assembly and set aside. - Page 10 Pub. 42004-339F 9 of 14 226-002, 341-001, 351-001 D . 2 I ODEL NDUSTRIAL ELEPHONES Figure 7. Model 341-001 Mounting Diagram e:\standard ioms - current release\42004 instr. manuals\42004-339f.doc 07/14...
-
Page 11: Model 351-001

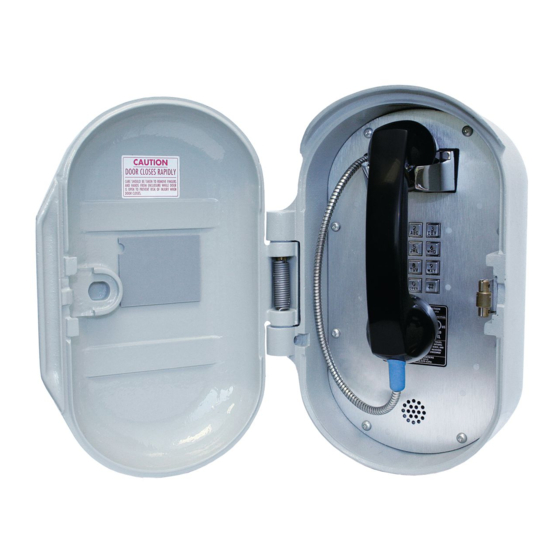

. 42004-339F 10 of 14 226-002, 341-001, 351-001 D . 2 I ODEL NDUSTRIAL ELEPHONES Model 351-001 Mounting and wiring of the Model 351-001 must be in accordance with Div. 2 installation standard practices. 1. Open the front door of the enclosure. Locate the four outermost screws. - Page 12 Pub. 42004-339F 11 of 14 226-002, 341-001, 351-001 D . 2 I ODEL NDUSTRIAL ELEPHONES 9. Close the front half of the enclosure, and secure it by replacing the four outermost screws. 10. Check for proper telephone operation by calling to and from another telephone.
-
Page 13: Operation
. 42004-339F 12 of 14 226-002, 341-001, 351-001 D . 2 I ODEL NDUSTRIAL ELEPHONES Operation 1. Lift the handset to place a call. 2. The handset receiver volume control, which is located on the handset, can be adjusted to the desired level by pressing the handset pressbar. - Page 14 351-001 D . 2 I ODEL NDUSTRIAL ELEPHONES Model 226-002 - Mechanical Enclosure ......................Thick-walled cast aluminum Finish ........................Gray polyurethane enamel Handset/cord ............... “G” style with armored cord and volume switch Dial Pad, Braille ....................... Chrome-plated zinc Front panel ..................0.125-inch brushed anodized aluminum Hookswitch ..............
-
Page 15: Replacement Parts & Accessories
. 42004-339F 14 of 14 226-002, 341-001, 351-001 D . 2 I ODEL NDUSTRIAL ELEPHONES Replacement Parts & Accessories Part No. Description 226-002 341-001 351-001 Replacement Parts ® 10111-101 Handset Assembly with 6-foot Hytel Coiled Cord, Volume Control, and Noise-Canceling... - Page 16 Warranty Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document.
