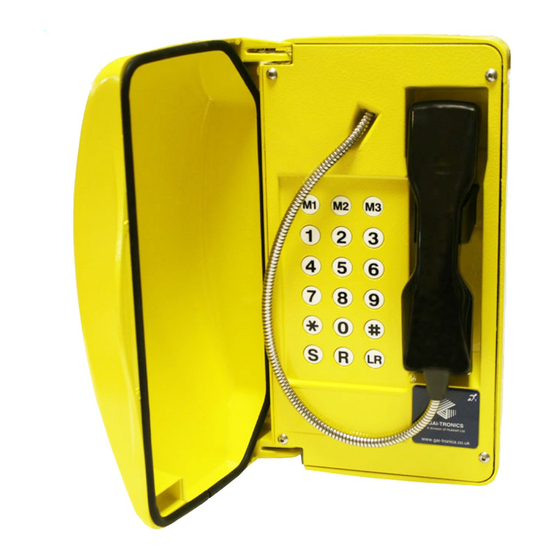

- Page 1 Installation and User Guide Titan GSM / GSM-R Telephone GAI-TRONICS Doc. No. 502-20-0151-001 Iss 2 Dec 2013 (CN38232-001)
-
Page 2: Table Of Contents
Sending Commands via USB port ..........21 5.3. List of Commands (for use with SMS and USB) ......22 Troubleshooting ..................27 6.1. Phone not responding to 1234stat0 request via SMS: ....27 6.2. ERROR light is permanently ON ..........27 Titan GSM... - Page 3 FUNCTION and ERROR lights flashing Short/Slow ....28 Maintenance ..................... 28 7.1. Diagnostic check ................ 28 7.2. Batteries ..................29 7.3. Cleaning ..................29 Aftercare ....................29 Technical Specifications ................30 Recycling information ................32 CE Declaration ..................33 Titan GSM...
-
Page 4: Safety And Care Information
RF energy or if you have any questions. Switch off your phone in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy. Titan GSM... -
Page 5: Product Description
Radio transmission equipment ▲ While GAI-Tronics GSM products are designed to conform to international standards regarding the acceptance of radio frequency interference, certain installation locations may interfere with their proper operation. We recommend that GAI-Tronics GSM equipment is not installed in close... - Page 6 GSM-R network exclusive to railway operators, but are identical to GSM versions in all other respects. In this manual, GSM-R is treated as a variant of the GSM product. All features described as relating to “Titan GSM” are available on GSM-R versions, including the ability to roam onto GSM networks if permitted by the SIM.
-
Page 7: Operation / Testing
(15 and 18 button versions only) Lift the handset, press LR to redial the last dialled number. 3.4. Secrecy (Mute) (15 and 18 button versions only) During a call, press and hold the S button to mute the microphone. Titan GSM... -
Page 8: Installation
Tronics if installation service is required. DC power adapter • The DC power adapter supplied as standard with the Titan GSM telephone is for in-building use only. Where the Titan GSM telephone is installed outside, the DC power adapter must be either installed in- building or correctly installed within an IP65 enclosure if located outside (enclosure not supplied). -
Page 9: Installation Overview
Re-fit the faceplate ensuring a weatherproof seal Programming or parameter changes can be made remotely, using SMS (see section 5) Test the operation of the telephone (section 3). Installation is now complete. Titan GSM... -
Page 10: Mounting Methods And Dimensions
1. Using a suitable tool, punch out 4 holes in the rear enclosure, taking care not to damage or dislodge the plastic bushes. Only four of the eight holes are required - the outer ones are recommended. The inner holes are provided to be compatible with older-style mounting Titan GSM... - Page 11 4. Ensure that all four plastic flanged bushes are in place and the rear enclosure is screwed tightly to the surface to prevent any water ingress through the punched holes. 5. Complete the installation by fitting the SIM, making the appropriate connections (sections 4.5 & 4.6) and re-fitting the face plate. Titan GSM...
- Page 12 4.4.2 Pole mounting Kit No 100-02-0208-001 This accessory is for mounting GAI-Tronics telephones on to the side of round poles of 100mm to 200mm diameter, or on to square or rectangular section uprights of 100mm to 150mm across the mounting surface.
- Page 13 1.5kg. 4. Route the cables to within the recess, fit the SIM and make connections to the telephone as shown in sections 4.5 & 4.6. Titan GSM...
-
Page 14: Fitting The Sim
PCB. Carefully insert a SIM card into the holder: Ensure the battery cable is plugged into its socket as shown below. Replace the rear cover taking care not to trap any cables under the side Titan GSM... -
Page 15: Internal Connections
The batteries are secured in recesses in the rear cover, with their terminals protruding inside it. The telephone is shipped from the factory with the battery cable disconnected (under the rear cover). The batteries are linked and fused as shown below. Titan GSM... -
Page 16: Connecting The Telephone
Risk of explosion if batteries are replaced by an incorrect type. Dispose of used batteries according to recycling instructions (section 10) 4.8. Connecting the telephone The Titan GSM telephone needs to be connected to an external DC power source and a suitable antenna. DC power input... -
Page 17: Led Indications And Operating States
LED indicators that provide useful status information. Note that, to save power, the LEDs will all go off after 5 minutes of inactivity. Lifting the handset briefly will make them come back on. Titan GSM... - Page 18 On/Off button * Unless the Titan GSM is a version with a full numeric keypad, it is not possible to rectify these faults from the telephone itself. Please ensure that the SIM is not locked (or blocked) prior to use.
-
Page 19: Switch On And Test
Check that a good weatherproof seal exists between the front and rear casings. Make a call to the phone to ensure the sounder operates. Then make an outgoing call from the phone to an external number. This will only Titan GSM... -
Page 20: Switching The Phone Off (Power Down)
For many installations, the steps outlined so far will result in a fully functioning phone. However, the Titan GSM is also highly customisable for many situations. Detailed configuration is made possible by either sending specially formatted SMS messages from another phone or by connecting a computer via the USB port. -
Page 21: Programming, Configuration And Diagnostics
Programming, configuration and diagnostics The Titan GSM has numerous features that can be configured using commands sent to it either via SMS messages from another phone or by a computer connected to the internal USB port. Most commands entered via the USB port are also accepted while the phone is in charge only mode, i.e. -
Page 22: List Of Commands (For Use With Sms And Usb)
Outside operating temperature limits. Charge only. Insufficient power to operate in solar charge mode. Error condition, communication failure with wireless module. Phone is initialising. Checking SIM present. No SIM installed. Checking SIM lock. Waiting for SIM PIN. Waiting for SIM PUK. Titan GSM... - Page 23 => 1 to 9 seconds (default is 4). n => 2 Ring cadence. Four different cadences available, which are useful to differentiate between phones in close proximity: x => 0 to 3 (default is 1) Note: x=0 is silent, no ring. Titan GSM...
- Page 24 => 1 to 20 (default is 20). n => 15 Activate relay for ring indication. One of the relays may be used to activate an external sounder. The relays switch at selected ring cadence. x => 0 No action (default). Titan GSM...
- Page 25 => 1 +3dB. x => 2 +6dB. x => 3 +9dB. x => 4 +12dB. AUTO Shorthand way of combining PNUM10=n and CFG7=1, where n is the phone number. This is used for setting the phone number Titan GSM...
- Page 26 1234auto=07773450543 PVER Returns the prompt version and language (<ver>,<lang>). Note: This feature is an additional option and is set at the time of manufacture. It must be specified at the time of ordering. Returns the firmware version number. Titan GSM...
-
Page 27: Troubleshooting
NOTE: This assembly is a safety component and MUST ONLY be replaced with the correct in line fuse assembly from GAI-Tronics. 6.2. ERROR light is permanently ON Check the SIM card has been installed and has been installed correctly, •... -
Page 28: Function And Error Lights Flashing Long/Fast
Very good signal None condition Maintenance Titan GSM requires very little maintenance in normal use, but please take note of the following to ensure that the telephone is kept in good working order: 7.1. Diagnostic check Perform a regular status check by sending an SMS:... -
Page 29: Batteries
7.2. Batteries The batteries fitted to Titan GSM are long-life, high performance batteries with an expected service life of 10 years under normal use. They must only be replaced by the correct type, ordered from GAI-Tronics, and must always be replaced as a pair. -
Page 30: Technical Specifications
Tested to ETS 300-381 Monitored faults Hookswitch • and sensors Handset integrity loop • Power break • Acoustic path test • Stuck button • Battery condition • Supply voltage • Ambient temperature • Monitoring Remote interrogation by SMS • method Titan GSM... - Page 31 3GPP TS 51.010-1 Mobile Station (MS) conformance Efficiency specification; EN 301 511 Global System for Mobile communications (GSM); Harmonized EN for mobile stations in the GSM 900 and GSM 1800 bands Safety EN60950-1 – Specification for information technology equipment, including electrical business equipment. Titan GSM...
-
Page 32: Recycling Information
Battery Store undamaged and damaged batteries in an impervious inert container and send to smelter for recycling. Must be treated as special waste, therefore contact GAI-Tronics for assistance if required. Titan GSM... -
Page 33: Ce Declaration
11. CE Declaration Titan GSM... - Page 34 Titan GSM...
- Page 35 Titan GSM...
- Page 36 A division of Hubbell Ltd. Brunel Drive Stretton Park Burton on Trent DE13 0BZ England Tel: 01283 500500 Fax: 01283 500400 www.gai-tronics.co.uk The policy of GAI-Tronics is one of continuous improvement, therefore the Company reserves the right to change specifications without notice Titan GSM...
