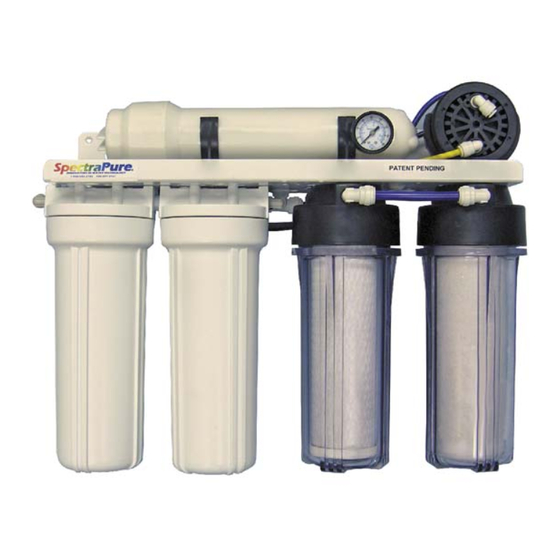

- Page 1 Coffee Lovers System 4-Stage Compact DWS-CLS-3™ 5-Stage Deluxe DWS-CLS-4™ OPERATIONS MANUAL RO Drinking Water System Coffee Lovers DWS-CLS Rev. 10-13-2005...
-
Page 2: Table Of Contents
7. Claims for error in quantity or condition must be made within 10 days of receipt of material. SpectraPure, Inc. will not be responsible for any claimed shortages not reported within 10 days. Returns other than warranty claims may be subject to 20% restocking fee. -
Page 3: Warranty Information
2 year limited warranty. OEM equipment resold by SpectraPure carry the original manufacturer’s warranty. SpectraPure, Inc.® warrants the product to the original owner only to be free of defects in material and workmanship for a period of three years (see exceptions above) from the date of receipt. SpectraPure’s liability under this warranty shall be limited to repairing or replacing at SpectraPure’s option, without charge, F.O.B. -
Page 4: What Is Reverse Osmosis
WHAT DOES THE SYSTEM DO? SpectraPure’s Coffee Lovers System uses household water pressure to reverse a natural physical process called osmosis. Water, under pressure is forced through a semi-permeable membrane where minerals and impurites are screened out and sent down the drain with waste water. -
Page 5: System Description
Permeate Pump - Most ordinary RO drinking water systems needlessly waste huge quantities of water. SpectraPure’s drinking water systems with Permeate Pump provides a solution with the introduction of the non-electric permeate pump. The permeate pump can reduce waste water by 80% compared to conventional RO drinking water systems. -
Page 6: System Specifications
® SpectraPure SYSTEM SPECIFICATIONS SYSTEM SPECIFICATIONS • (Optional) Sediment Pre-filter: 0.5 micron micro-tec sediment pre-filter • Carbon Filter: 0.5 micron carbon block pre-filter • Membrane Type: Thin film composite (TFC) • Membrane Rejection Rate: 98% Average • Membrane Production Rate: Rated GPD at 500 ppm TDS, 60 psi line pressure and 77°F (25°C) water... -
Page 7: Installation
® SpectraPure INSTALLATION INSTALLATION Preparation Prepare area for installation by removing all items from under the sink. Locate and turn off cold water supply and open faucet to relieve any remaining pressure. Look at typical undersink installation diagram in Figure 6. Determine appropriate location for DWS system, bladder tank, feed water connection, drain connection and air gap faucet for your specific application. -
Page 8: Air-Gap Faucet Installation
® SpectraPure INSTALLATION continued AIR-GAP FAUCET INSTALLATION 1. Drill hole for air-gap faucet: Determine the desired location to drill a 7/8” inch hole for the air gap faucet. Make certain ample clearance exists and there are no obstructions in the form of reinforcement ribs, mounting hardware, brackets, etc., that block or restrict access to the bottom of the faucet. - Page 9 ® SpectraPure SpectraPure®Inc. 480.894.5437 Call us toll-free 1.800.685.2783 2167 East Fifth St, Tempe, Arizona 85281...
- Page 10 ® SpectraPure SpectraPure®Inc. 480.894.5437 Call us toll-free 1.800.685.2783 2167 East Fifth St, Tempe, Arizona 85281...
-
Page 11: Installation Instructions For Push Fittings
® SpectraPure INSTALLATION continued INSTRUCTIONS FOR PUSH-TYPE FITTINGS 1. Remove the tubing from its push-fitting as follows: (shown in Figure 7) Firmly depress and hold the push-fitting collette down with your thumbnail. While the push-fitting collar is depressed, pull the tubing straight out of the push- fitting. -
Page 12: Drain Saddle Installation
® SpectraPure INSTALLATION continued DRAIN SADDLE INSTALLATION Refer to Figure 8A and determine the location for the drain saddle assembly and drain hole. It must be located above the “P” trap (“U” shaped bend in drain pipe) preferably on the sink side of the drain pipe. Place the half of the drain saddle with threaded nipple at a pre-determined location. -
Page 13: System Tubing Connections
® SpectraPure INSTALLATION continued SYSTEM TUBING CONNECTIONS 1. Using a length of the 3/8” blue tubing, check to make sure end of tubing is cut square. Insert one end into the 3/8” plastic adapter on the air gap faucet. Push it into the adapter until it bottoms out, then pull down on the tubing to lock it in place. -
Page 14: Measuring Product To Waste Ratio
® SpectraPure SpectraPure®Inc. 480.894.5437 Call us toll-free 1.800.685.2783 2167 East Fifth St, Tempe, Arizona 85281... -
Page 15: Procedure For Measuring Waste To Product Water Ratio
Membrane Warranty. In order to maximize the life of your SpectraPure RO Membrane, you may need to adjust the ratio of the concentrate to purified water. If not enough concentrate is allowed to flow past the membrane during operation, the impurities will precipitate out on the membrane surface, clogging the RO Membrane. -
Page 16: Maintenance
® SpectraPure MAINTENANCE MAINTENANCE For maximum contaminant removal and long membrane life, the sediment and carbon pre-filters should be changed at 6-month intervals. If your water contains a great deal of sediment or chlorine, the pre-filters might have to be changed at more frequent intervals to maintain an adequate production rate. -
Page 17: Post-Filter Replacement
® SpectraPure MAINTENANCE continued Post-filter Replacement Maintenance Regime: At least once in 12 months or whenever odor or bad taste occurs. Materials Needed: Replacement Carbon Post-Flter. Procedure: 1. Turn off feed supply valve and tank shut-off valve. 2. Remove the filter housing from its cap by unscrewing it clockwise as viewed from the top or side. -
Page 18: Sanitizing Dws System
® SpectraPure MAINTENANCE continued SANITIZING THE DRINKING WATER SYSTEMS Sanitizing is recommended at least once every year or if water smells (or tastes) bad even after a post carbon filter replacement. A convenient time for sanitization is during a filter change-out. IT IS IMPORTANT THAT YOU HAVE CLEAN HANDS WHILE HANDLING INNER PARTS OF THE SYSTEM. -
Page 19: Troubleshooting Guide
® SpectraPure TROUBLESHOOTING Problem Cause Corrective Action Low production rate. plugged pre-fi lters. Replace pre-fi lters. low water temperature. Use higher GPD membrane. low water pressure (< iii. Use booster pump OR use 40 psi). higher GPD membrane. high TDS content (<... - Page 20 ® SpectraPure TROUBLESHOOTING continued Problem Cause Corrective Action Red light on push to test TDS build-up in the Drain tank completely and re- button monitor comes on bladder tank. test TDS. - When RO water stored in tank is being tested.
- Page 21 ® SpectraPure TROUBLESHOOTING continued Problem Cause Corrective Action Leak under the faucet Purchase a faucet repair kit. handle. Leak around the base of the Displaced O-rings. Pull the faucet spout out. Seat spout. O-rings in place. Worn O-rings. Replace O-rings (Purchase a faucet repair kit).
- Page 22 ® SpectraPure TROUBLESHOOTING continued CALCULATING EXPECTED GPD/LPD FROM THE MEMBRANE Membranes produce the rated gallons per day (GPD) at 60 psi (4.1 bars) operating pressure, 77°F (25°C) operating temperature and 500 ppm total dissolved solids. Membrane output gallons per day (GPD) depends on operating pressure, water temperature and the ppm TDS in the feed water.
-
Page 23: Testing Membrane Quality
ALL RIGHTS RESERVED No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written permission of SpectraPure Inc. SpectraPure®Inc. -
Page 24: Replacement Parts
® SpectraPure REPLACEMENT PARTS MEMBRANE: 90 GPD Membrane (MEM-S-0090). PRE-FILTER (4-Stage): 5.0 Micron Carbon Block Filter (CF-5-10). PRE-FILTER (5-Stage): 0.5 Micron Sediment Filter (SF-MT-0.5-10). PRE-FILTER (5-Stage): 0.5 Micron Carbon Block Filter (CF-0.5-10). POST-FILTERS (4 & 5-Stage): 0.5 Micron Carbon Block Filter (CF-0.5-10).
