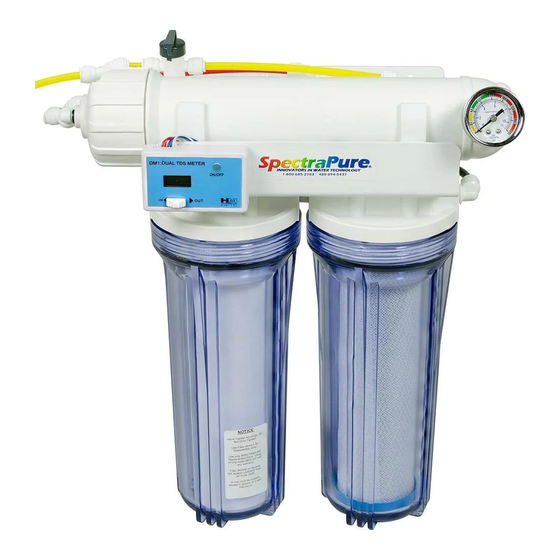

The CSP™ RO System
Reverse Osmosis Water Purification System
(Single and Dual Membrane Models)
INSTALLATION AND OPERATING MANUAL
WARNING
Please read carefully before proceeding with installation. Failure to
follow any attached instructions or operating parameter may lead to
the product's failure and possible damage to property.
REV v4 08 -24 -2015
Advertisement
Table of Contents
Related Manuals for SpectraPure CSP Series
Summary of Contents for SpectraPure CSP Series
- Page 1 The CSP™ RO System Reverse Osmosis Water Purification System (Single and Dual Membrane Models) INSTALLATION AND OPERATING MANUAL WARNING Please read carefully before proceeding with installation. Failure to follow any attached instructions or operating parameter may lead to the product’s failure and possible damage to property. REV v4 08 -24 -2015...
-
Page 2: Table Of Contents
ALL RIGHTS RESERVED No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written permission of SpectraPure Inc. SpectraPure Inc. -
Page 3: Terms And Conditions
10 days. Returns other than warranty claims may be subject to 20% restocking fee. SpectraPure, Inc. cannot be held liable for damage or loss to a shipment by a freight carrier. Check shipment for damage before acceptance or note on freight bill subject to inspection for concealed damage. -
Page 4: System Specifications
SpectraPure ® SYSTEM SPECIFICATIONS: Sediment Prefilter 0.5 micron MicroTec™ sediment prefilter (SF- MT-0.5-10) 0.5 micron carbon block prefilter (CF-0.5 -10) Carbon Filter RO Membrane Type Thin-Film Composite (TFC) Rejection Rate Greater than 96% average Input Water Pressure 60 psi (4.15 bar) line pressure* Input Water Temp 77°F (25°C) -
Page 5: System Description
(Green Tubing for 2:1 Flow Restrictor) Membrane Feed Push Fitting Blue Purified Black Tubing to Water Tubing Membrane Feed (Good Water) Top View SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... - Page 6 SpectraPure ® SINGLE MEMBRANE SYSTEM-FIGURE B DUAL MEMBRANE SYSTEM- FIGURE C SpectraPure Inc. ® 480.894.5437 Call us toll-free 1.800.685.2783 2167 East Fifth St, Tempe, Arizona 85281...
-
Page 7: What Is Reverse Osmosis
WHAT DOES THE SYSTEM DO? SpectraPure’s CSP™ RO System uses household water pressure to reverse a natural physical process called osmosis. Water, under pressure, is forced through a semipermeable membrane where minerals and impurities are screened out and sent down the drain with waste water. -
Page 8: System Initialization
CAUTION: Check the system to ensure that all fittings are tight and leak- free before leaving the system unattended. (If anything is leaking, contact SpectraPure for assistance.) NOTE: It is recommended that at least 2 gallons (7.57 liters) of purified water be discarded now before collecting purified water for use. -
Page 9: Working With Push Fittings
O -ring. Turn off the system water supply and reseat the tubing as described above. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 10: Sediment Prefilter Replacement
SpectraPure ® SEDIMENT PREFILTER REPLACEMENT: A Sediment Filter will usually last approx. 4- 6 months, depending on the quality of the tap water and quantity of water being produced. (The life span of the filter is determined by the turbidity, iron content, organics, and total particulate volume in your water source). -
Page 11: Carbon Block Filter Replacement
NOTE: Do not use filter wrench to tighten housings. Over-tightening will damage housings and void your warranty. 7. Turn on system water supply and check for leaks. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 12: Metering And Diagnostics
SpectraPure ® METERING AND DIAGNOSTICS: This SpectraPure purification system has been fully equipped with sufficient instrumentation to make monitoring and troubleshooting an easy process. The provided pressure gauge is used to determine the tap water pressure and to evaluate the condition of the sediment and carbon prefilters. -
Page 13: Ro Membrane Replacement
Fig. E: Inserting the New Membrane Element double O -ring end of membrane product water stem tube (continued on next page) SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... - Page 14 SpectraPure ® 8. Place the black housing O -ring on the housing rim and carefully screw the lid back on to the base. Housing O -Ring Reconnect the black tubing to the membrane feed push fitting. NOTE: If you have a dual-membrane system, perform steps 2 thru 9 on the second membrane now.
-
Page 15: Membrane Output Calculation
71.6 /22 0.912 89.6 /32 1.232 55.4 /13 0.684 73.4 /23 0.941 91.4 /33 1.267 57.2/14 0.707 75.2 /24 0.970 93.2 /34 1.304 SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 16: Membrane Output Calculation
SpectraPure ® Membrane Output Calculation Example What is the expected GPD from a 90 GPD System at 40 psi pressure and 60°F water temperature? PCF = 40 ÷ 60 = 0.666 TCF = 0.754 Expected GPD = 90 × 0.666 × 0.754 = 45.2 GPD ± 20% 45.2 GPD would be the Actual Production Rate... -
Page 17: Troubleshooting Guide
Test Kit** RO product water (Y) greater than for Hardness 90%? **Caution: This test is not to be used on softened water sources. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 18: Choosing A Mounting Location
SpectraPure ® CHOOSING A MOUNTING LOCATION: When considering a location for the installation of the RO System, take the following factors into account: Light Sources 1. Most of the components of this system are plastic and are subject to damage by ultraviolet light from the sun and other sources such as metal halide lighting. -
Page 19: Three Year Limited Warranty
® and workmanship for a period of three years from the date of receipt. SpectraPure’s liability under this warranty shall be limited to repairing or replacing at SpectraPure’s option, without charge, F.O.B. -
Page 20: Replacement Parts And Accessories
BPHF-MO-115 High-Flow (>60GPD) Booster Pump, 115V BPHF-MO-230 High-Flow (>60GPD) Booster Pump, 230V See our Web Site for Liquid Level Controls and other Optional Accessories Warning: SpectraPure does not recommend drinking deionized water. SpectraPure Inc. ® 480.894.5437 Call us toll-free 1.800.685.2783...
