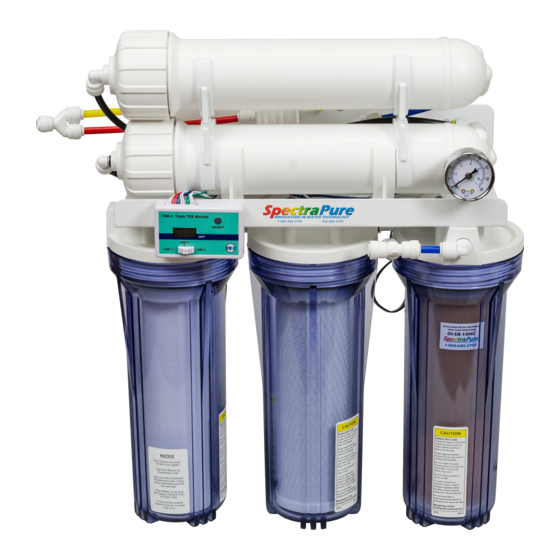

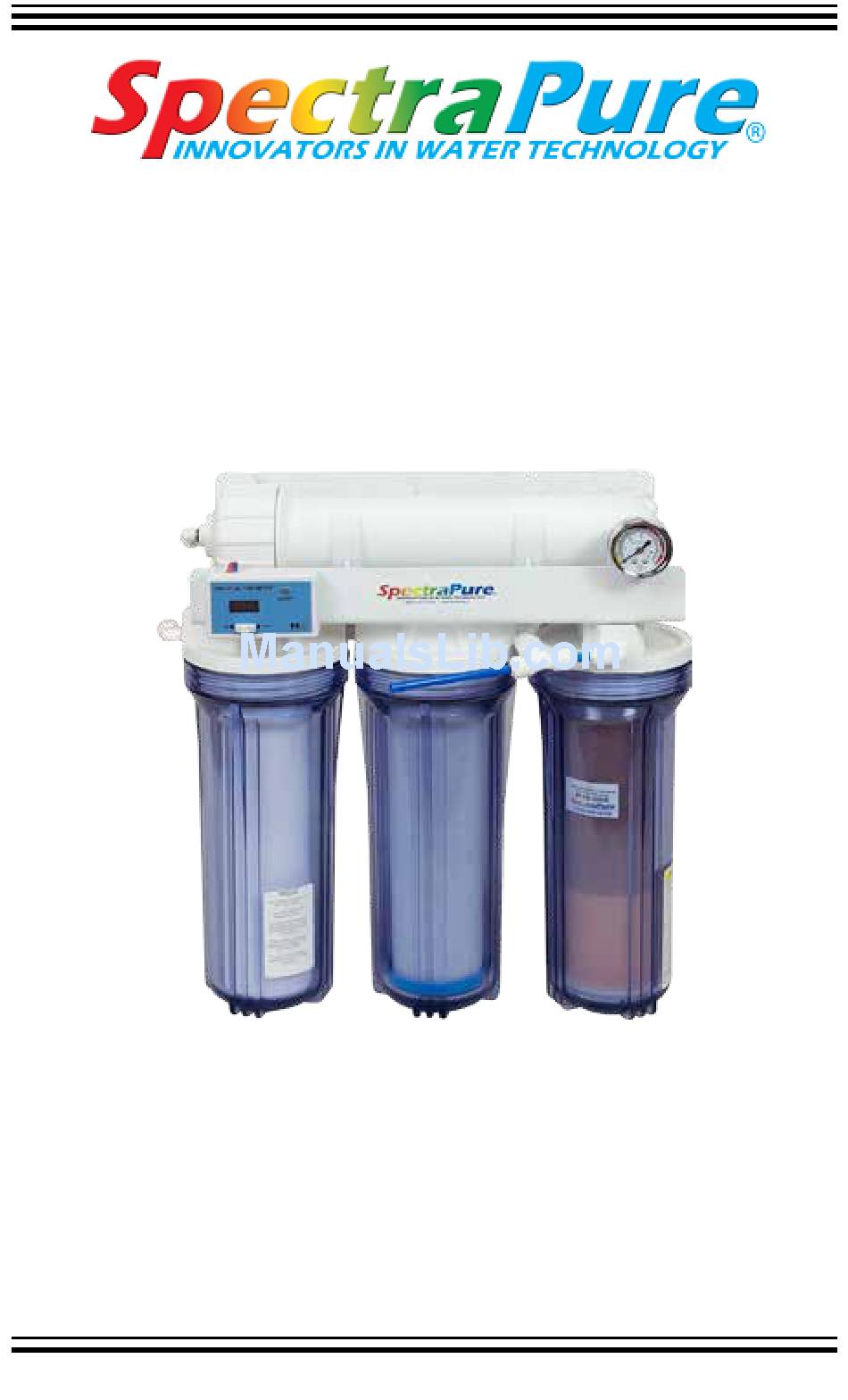

The CSPDI™ RO/DI System
Reverse Osmosis/Ion Exchange Water
Purification System
INSTALLATION AND OPERATING MANUAL
WARNING
Please read carefully before proceeding with installation. Failure
to follow any attached instructions or operating parameter may
lead to the product's failure and possible damage to property.
v4 2015-09-18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SpectraPure CSPDI-180
Summary of Contents for SpectraPure CSPDI-180
- Page 1 The CSPDI™ RO/DI System Reverse Osmosis/Ion Exchange Water Purification System INSTALLATION AND OPERATING MANUAL WARNING Please read carefully before proceeding with installation. Failure to follow any attached instructions or operating parameter may lead to the product’s failure and possible damage to property. v4 2015-09-18...
-
Page 2: Table Of Contents
ALL RIGHTS RESERVED No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written permission of SpectraPure Inc. SpectraPure Inc. -
Page 3: Warranty Information
® and workmanship for a period of three years from the date of receipt. SpectraPure’s liability under this warranty shall be limited to repairing or replacing at SpectraPure’s option, without charge, F.O.B. -
Page 4: System Specifications
940 ml/min 470 ml/min 1880 ml/min Reverse Osmosis Membrane Feed Water Requirements: For the 1 year SpectraPure TFC membrane prorated warranty to be honored, the following conditions must be met: Operating Pressure* 40 – 80 psi (2.75 – 5.5 bar) pH Range 3 –... -
Page 5: System Description
TFC RO Membrane IN Port OUT Port (Tap Water) (Pure Water) Sediment Filter (SF-MT- 0.5 -10) DI Cartridge (DI-SB-10) Carbon Block (CF-0.5 -10) SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... - Page 6 SpectraPure ® Fig. A: Single-Membrane Assembly Top/Rear View Union Connector RO membrane Yellow concentrate (waste) tubing Membrane feed push fitting Red tube with Flow Blue purified Black tubing to Restrictor inside water tubing membrane feed (Good Water) 1/4" BLACK LINE: Tap Water 1/4"...
-
Page 7: Working With Push Fittings
O -ring. Turn off the system water supply and reseat the tubing as described above. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 8: System Installation And Initialization
SpectraPure ® SYSTEM INSTALLATION & INITIALIZATION: 1. Most of the components of this system are plastic and are subject to damage by ultraviolet light from the sun and other sources such as metal halide lighting. 2. Avoid installing this unit in an area where it may be subjected to bright light or direct sunlight, as algae is more likely to thrive inside the clear filter housings when exposed to bright light. -
Page 9: System Installation And Initialization
20. Check the system to ensure that all fittings are tight and leak-free before leaving the system unattended. (If anything is leaking, contact SpectraPure for assistance.) NOTE: It may take several days of normal operation for the membrane to reach its full production rate. -
Page 10: Metering & Diagnostics
SpectraPure ® METERING AND DIAGNOSTICS: This SpectraPure purification system has been fully equipped with sufficient instrumentation to make monitoring and troubleshooting an easy process. The provided pressure gauge is used to determine the tap water pressure and to evaluate the condition of the sediment and carbon prefilters. -
Page 11: Ro Membrane Rejection Diagnostic
5. Rejection = [ ( X - Y) ÷ X ] ×100 = 0.953 ×100 = 95.3 Membrane TDS Rejection = 95.3 %: Rejection rates less than 95% indicate that the membrane should be replaced. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 12: Ro Membrane Output Calculation
SpectraPure ® MEMBRANE OUTPUT CALCULATION: Membrane Output Calculation Membranes produce the rated gallons per day (GPD) at 60 psi (4.1 bars) operating pressure, 77°F (25°C) operating temperature and 250 ppm total dissolved solids. Membrane output gallons per day (GPD) depends on operating pressure, water temperature and the ppm TDS in the feed water. - Page 13 TCF = 0.754 (from Table 1) Expected GPD = 90 × 0.666 × 0.754 = 45.2 GPD ± 15% 45.2 GPD would be the Actual Production Rate SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com...
-
Page 14: Sediment Prefilter Replacement
SpectraPure ® SEDIMENT PREFILTER REPLACEMENT: For maximum contaminant removal and long membrane life, the sediment and carbon prefilters must be changed when a 15-20% drop in pressure is observed OR at least 6 month intervals. If your water contains a great deal of sediment or chlorine, the prefilters may require more frequent changes to maintain adequate production rate and extended membrane life. -
Page 15: Deionization Cartridge Replacement
5. Reinstall the bottom housing onto the cap by rotating it to the right and hand tighten only. NOTE: Do not use filter wrench to tighten housings. Over-tightening will damage housings and void your warranty. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 16: Ro Membrane Replacement
SpectraPure ® RO MEMBRANE REPLACEMENT: 1. Turn off the water supply to the RO system. Place the system where the membrane housing is easily accessible. 2. Remove the black tubing from the membrane feed push fitting by depressing the collar on the fitting with your thumb and pulling the tubing from the push fitting. - Page 17 3. Reinsert flow restrictor and check for leaks. Allow at least 2 gallons of water to run through the system before using water. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com...
-
Page 18: Tips For Long Membrane Life
SpectraPure ® TIPS FOR LONG MEMBRANE LIFE: 1. Replace the 0.5 micron sediment filter once every 6 months. This will prevent mem brane fouling due to silt or sediment depositing on the membrane. 2. Replace the 0.5 micron carbon block filter at least once every 6 months or when chlorine breakthrough occurs. -
Page 19: Troubleshooting Guide
High pH tap water (>9.0). vi. Acidify feed water to the RO membrane to improve its rejection. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 20: Replacement & Optional Parts
115V Booster Pump Kit for 90 and 180 gpd Systems BPHF- MO -230 230V Booster Pump Kit for 90 and 180 gpd Systems Visit our website at www.spectrapure.com for Liquid Level Controllers and other Optional Accessories Warning: SpectraPure does not recommend drinking deionized water.
