Colorful C.945PL User Manual page 8

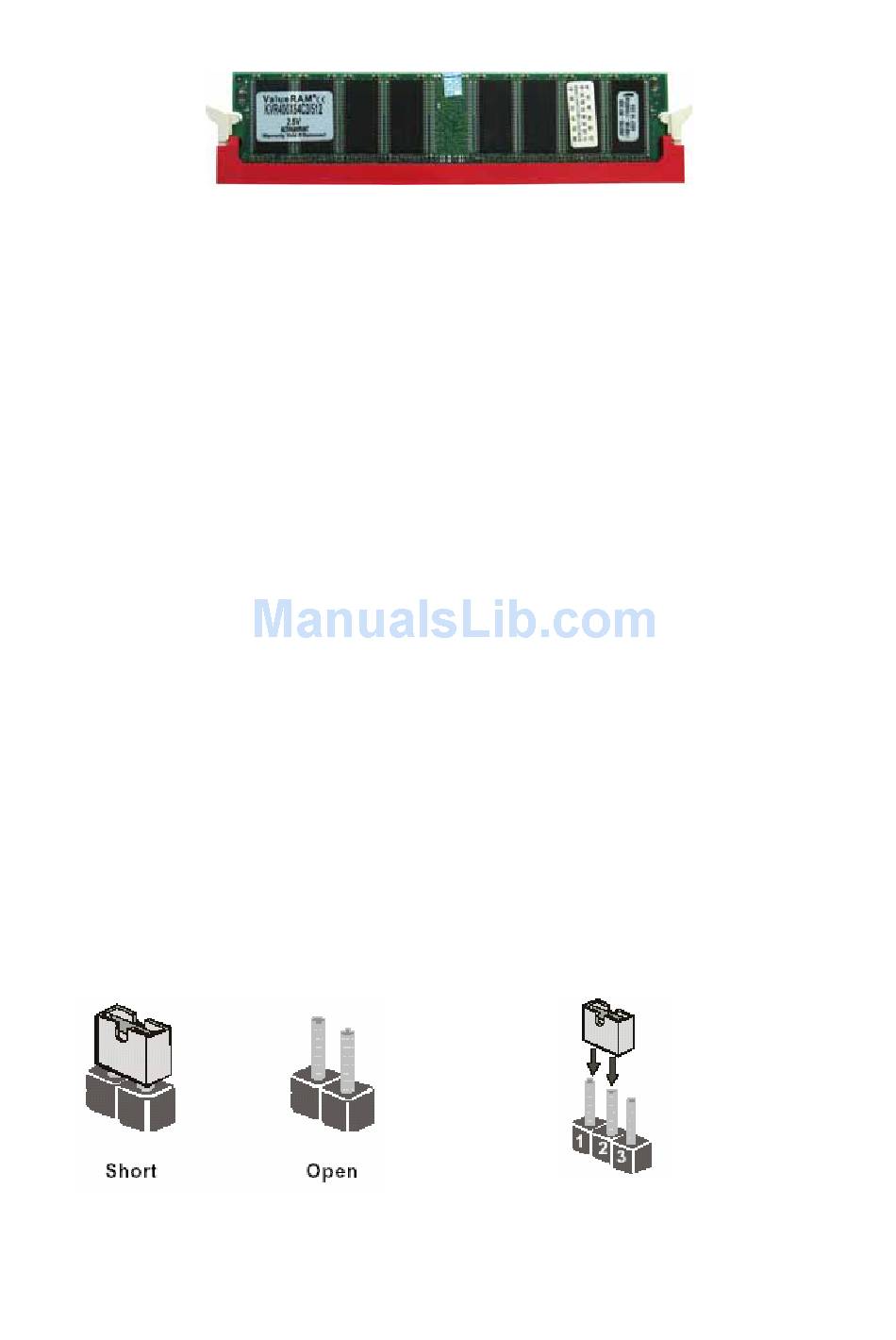

c. The plastic clip at each side of the DIMM slot will automatically close.
Install Dual-channel
C.945PL Ver2.1 motherboard supports dual-channel DDR2 533/667/800MHz
memory interface, while both channels (in different color) populated with same
amount of memory size will work as dual-channel DDR.
NOTE: The memories must be the same type, same size, and same frequency for dual
channel function.
Step3 Install the Motherboard into the Case
You can easily install the motherboard into the case .Please screw the
motherboard firmly to prevent of short circuit.
Step4 Install Expansion Card
You can easily install the AGP or PCI expansion cards on the motherboard .Please
align the card's connectors and press firmly.
Step5 Connect all the signal cables, IDE cables, power cables and panel cables to the
connectors
Please refer to the connector's instruction for more detail information
Jumper set
There is a CMOS RAM on board that has a power supply from external battery to
keep the system configuration data. With the CMOS RAM, the system can
automatically boot OS every time it is turned on. If you want to clear the system
configuration, use the CLR_ CMOS Jumper to clear data.
Clear CMOS PROCEDURE
