C.B250A-BTC DELUXE YV20
Hong Kong Colorful Yugong Technology Website:
http://www.colorful.cn
Thanks for purchasing Colorful series motherboard. This series of motherboards provides excellent performance and
quality assurance.

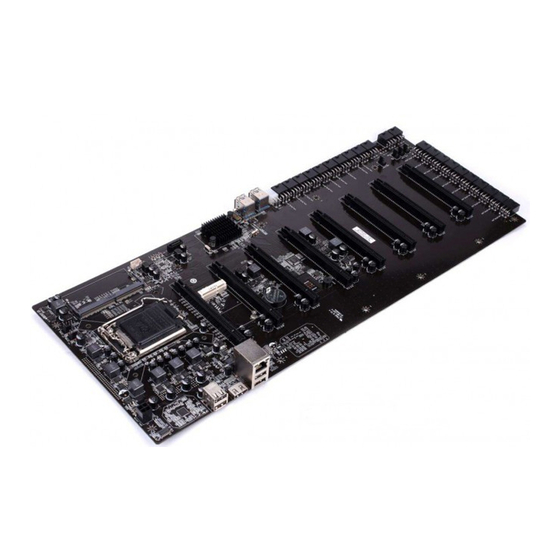

The motherboard C.B250A-BTC DELUXE YV20 based on Intel B250 Express Chipset, support Intel LGA1151 Kaby
Lake/Skylake CPUs, support DDR4 2400/2133MHZ memory, support PCI-E 3.0 standard.
The motherboard provides 1*HDMI port、1*LAN port、1*SO-DIMM memory slot、1*SATA3.0、4*USB2.0 ports、
onboard 1000M LAN chipset.It's a Cost-effective motherboard ！
The motherboard provides 1*PCI Express x16 slot、7*PCI Express x1 slots、4*USB_PCIE ports、1*MSATA slot.It's
professional mining motherboard,it can connect to 12pcs graphics cards for mining.
1.1.Packing Contents
1*Colorful C.B250A-BTC DELUXE YV20 motherboard
1*Driver/Utility CD
1*User's Guide
1*SATA cable
1*HDD power supply cable
1.2.MOTHERBOARD SPEC
CPU
·Support Intel LGA1151 Kaby Lake/Skylake CPUs
Chipset
·IIntel B250
Main
・Support DDR4 2400/2133MHZ memory
Memory
·Offer 1*SO-DIMM slot
・1*PCI Express 3.0x16 slot
・7*PCI Express x1 slots
Slots
・4*USB_PCIE ports
·1*MSATA slot
Storage
·1*SATA3.0 6Gb/s portt
USB
・4*USB2.0 ports
・1*LAN port
Rear IO
・4*USB 2.0 ports
Connector
·1*HDMI Port
・1*9-pin Front panel audio connector（F_AUDIO）
・6*FAN jacks（CFAN,SFAN1,AUX_FAN1-4）
・1*clear CMOS Jumper（CLR_CMOS）
・1*ME header（ME）
・2*4-pin Power connectors（CPU_12VIN,
Other
CPU_12VOUT）
Connectors
・10*PCIE input power connectors
（12V_PCIE_IN1-10）
・8*PCIE output power connectors
（12V_PCIE_OUT1-8）
·1*4-pin HDD power connector（HDD_PWR1)
Onboard
・Onboard 1000M LAN
LAN
·Provides 10/100/1000Mb Ethernet
Advertisement
Table of Contents
Related Manuals for Colorful C.B250A-BTC DELUXE YV20
Summary of Contents for Colorful C.B250A-BTC DELUXE YV20
- Page 1 Thanks for purchasing Colorful series motherboard. This series of motherboards provides excellent performance and quality assurance. The motherboard C.B250A-BTC DELUXE YV20 based on Intel B250 Express Chipset, support Intel LGA1151 Kaby Lake/Skylake CPUs, support DDR4 2400/2133MHZ memory, support PCI-E 3.0 standard.
-
Page 2: Motherboard Layout
1.3.Motherboard Layout 1.Connect to USB2.0 devices 2.Connect to HDMI monitor 3.Connect to LAN and USB2.0 devices 4.4-pin ATX Power connector 5.Intel LGA1151 socket(support Intel Kaby Lake /Skylake series CPUs) 6.CPU Fan (CFAN) and System FAN connectors (SFAN1、AUX_FAN1-4) 7.SO-DIMM slot 8.4-pin HDD power connector 9.SATA3.0 port 10.PCI Express 3.0 x16 slot,for graphics card 11.PCI Express x1 slot... -
Page 3: Safety Instructions
2.1.Safety Instructions To reduce the risk of fire, electric shock, and injury, always follow basic safety precautions. Remember to remove power from your computer by disconnecting the AC main source before removing or installing any equip- ment from/to the computer chassis. 2.2.Preparing the Motherboard The motherboard shipped in the box does not contain a CPU or memory. -
Page 4: Installing Memory Dimms
The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the connectors on the socket and damaging the CPU! 2.3.Installing Memory DIMMs Your new motherboard has 1 slots for SO-DIMM memory. They support DDR4 memory technology. There must be at least one memory bank populated to ensure normal operation. -
Page 5: Securing The Motherboard Into The Chassis
2.5.Securing the Motherboard into the Chassis Most computer chassis have a base with mounting studs or spacers to allow the mother board to be secured to the chassis and help to prevent short circuits. If there are studs that do not align with a mounting hole on the motherboard, it is recom- mended that you remove that stud to prevent the possibility of a short circuit. - Page 6 2.6.2.Power connectors:HDD_PWR1、CPU_12VIN、CPU_12VOUT、12V_PCIE_IN1-10，12V_PCIE_OUT1-8 The silk-screen“CPU_12VIN”connector is for CPU power supply,when using the mining power, need to use a cable which on both sides are 4PIN power ports, shorting between the“CPU_12VIN”and“CPU_12VOUT”connectors. The silk-screen“12V_PCIE_IN1-10”connectors are for the motherboard power supply , connected to the power supply. The silk-screen“12V_PCIE_OUT1-8”connectors are just for graphics card auxiliary power supply port,Graphics card external 12V 6PIN or 8PIN power port,please directly connect to PSU PCI-E 6PIN or 8PIN connectors.
- Page 7 Parts The standard RJ-45 jack is for connection to single Local Area Network (LAN). LAN Jack You can connect a network cable to it. HDMI Onboard HDMI port, connect to HDMI Monitor. These connectors are for attaching USB devices such as keyboard, mouse, USB Ports or other USB-compatible devices.
-
Page 8: System Panel Connector
2.6.6.System panel connector This connector supports several chassis-mounted functions. System power LED (2-pin PLED) This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode. Hard disk drive activity LED (2-pin IDE_LED) This 2-pin connector is for the HDD Activity LED. - Page 9 2.6.7.PCI Express x16 、PCI Express x1 slots and USB_PCIE ports The PCI Express x16 slot is reserved for a graphics or video card. The bandwidth of the x16 slot is up to 8GB/sec. When installing a PCI Express x16 card, be sure the retention clip snaps and locks the card into place. If the card is not seated properly, it could cause a short across the pins.
- Page 10 2.6.8.Clear CMOS Jumper: CLR_CMOS There is a CMOS RAM on board that has a power supply from external battery to keep the system configuration data. With the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system configura- tion, use the CLR_CMOS Jumper to clear data.
-
Page 11: Bios Setup
ESC/Right Click: Exit 4.Copyright Notice Copyright This motherboard manual belongs to Hong Kong Colorful Yugong Technology Limited. No one is permitted to copy, change, or translate without our written permission. Disclaimer The products name we mentioned in this manual is only for identifying, all of the brands belong to other company. -
Page 12: Technical Support
The material in this document is the intellectual property of Hong Kong Colorful Yugong Technology Limited. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.
