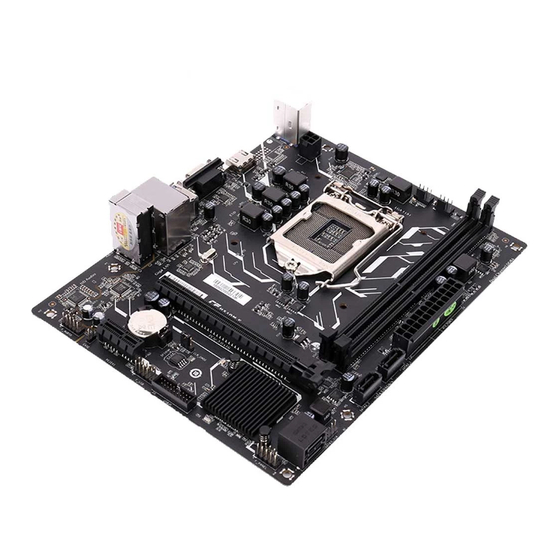

C.H310M-K PRO V20
Colorful Technology Website:
http://www.colorful.cn
Thanks for purchasing Colorful series motherboard. This series of motherboards provides excellent performance and quality
assurance.
C.H310M-K PRO V20 motherboard based on Intel H310 Chipset, support Intel LGA1151 Coffee Lake processors, support
dual channel DDR4 2133/2400MHz memory, support PCI-E 3.0 standard.
The motherboard provides 1*DVI port、1*VGA port、2*DDR4 memory slots、4*SATA3.0 ports、4*USB2.0&4*USB3.0
ports(including the header)、 onboard 6-CH audio chipset、 onboard 1000M LAN chipset, it's a Cost-effective motherboard ！
The motherboard provides 1*PCI Express3.0 x16 slot、1*PCI Express x1 slots,it had good extensibility ！
1.1.Packing Contents
1* Colorful C.H310M-K PRO V20 motherboard
2* SATA cables
1* Driver/Utility CD
1* User's Guide
1* I/O shield
1.2.MOTHERBOARD SPEC
CPU
·support Intel LGA1151 Coffee Lake processors
Chipset
·Intel H310
・Dual-Channel DDR4 2133/2400MHz support
Main
·Offer 2 DIMM slots
Memory
・1*PCI Express 3.0 x16 slot
Slots
·1*PCI Express x1 slot
Storage
·4*SATA3.0 port
USB
・4*USB3.0+4*USB2.0(including the header)
・2*PS/2 Mouse and Keyboard ports
Rear IO
Connector
・1*LAN(RJ45) port
・2*USB 2.0 ports
・2*USB 3.0 ports
・6-Channel Audio I/O
・1*VGA port
·1*DVI port
・1*24-pin ATX Power connector
・1* 4-pin ATX 12V Power connector
・1*9-pin Front panel audio connector（F_AUDIO）
・1*System panel connector（F_PANEL）
・1*USB2.0 header（F_USB2）
・1*USB3.0 header（USB3F）
Other
・1*PC speaker connector（BZ）
Connectors
・1*Debug card connector（CASE）
・1*CMOS jumper（CLR_CMOS）
·2*FANs headers（CPU_FAN，SYS_FAN）
High
・Onboard 6-channel High Definition audio chipset
Definition
·Support 3D surround sound
Audio
・Onboard 1000M LAN
Onboard
LAN
·Provides 10/100/1000Mb Ethernet
