Battle Axe C.Z370M-DH V20
Colorful Technology Website:
http://www.colorful.cn
Thanks for purchasing Colorful Battle Axe series motherboard. This series of motherboards provides excellent
performance and quality assurance.

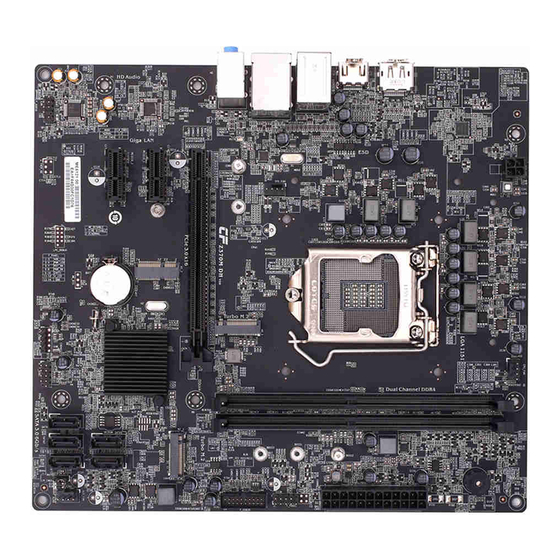

Battle Axe C.Z370M-DH V20 motherboard based on Z370 Chipset, support Intel LGA1151 Coffee Lake processors,
support dual channel DDR4-2400/2133MHz memory, support PCI-E 3.0 standard.
The motherboard provides 1*HDMI port、1*DP port、2*DDR4 memory slots、5*SATA3.0 ports、5*USB2.0&6*USB3.0
ports(including the header)、 onboard 6-CH audio chipset、 onboard 1000M LAN chipset, it's a Cost-effective motherboard ！
The motherboard provides 1*PCI Express3.0x16 slot、2*PCI Express3.0x1 slots、3*M.2 slots,it had good extensibility!
1.1.Packing Contents
1* Colorful Battle Axe C.Z370M-DH V20 motherboard
2* SATA cables
1* Driver/Utility CD
1* User's Guide
1* I/O shield
1.2.MOTHERBOARD SPEC
CPU
·Support Intel LGA1151 Coffee Lake processors
Chipset
·Intel Z370
・Dual-Channel DDR4 2400/2133MHz support
Main
·Offer 2 DIMM slots
Memory
・1*PCI-Express 3.0 x16 slots
Slots
・2*PCI-Express 3.0 x1 slots
·3*M.2 slots
Storage
·5*SATA3.0 port
USB
・5*USB2.0+6*USB3.0(including the header)
・1* DP port
Rear IO
Connector
・1*HDMI port
・2* USB2.0 ports
・4* USB3.0 ports
·1*LAN(RJ45) port
·6-Channel Audio I/O
・1*24-pin ATX Power connector
・1* 4-pin ATX 12V Power connector
・1*9-pin Front panel audio connector（F_AUDIO）
・1*System panel connector（F_PANEL）
・2*USB2.0 headers（F_USB1,F_USB2）
Other
・1*USB3.0 header（F_USB30）
Connectors
・1*clear CMOS Jumper（CLR_CMOS）
·3*FANs headers（CPU_FAN, SYS_FAN, AUX_FAN）
High
・Onboard 6-channel High Definition audio chipset
Definition
·Support 3D surround sound
Audio
・Onboard 1000M LAN
Onboard
LAN
·Provides 10/100/1000Mb Ethernet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Battle Axe C.Z370M-DH V20 and is the answer not in the manual?

Questions and answers

Related Manuals for Colorful Battle Axe C.Z370M-DH V20

Summary of Contents for Colorful Battle Axe C.Z370M-DH V20

  • Page 1 Thanks for purchasing Colorful Battle Axe series motherboard. This series of motherboards provides excellent performance and quality assurance. Battle Axe C.Z370M-DH V20 motherboard based on Z370 Chipset, support Intel LGA1151 Coffee Lake processors, support dual channel DDR4-2400/2133MHz memory, support PCI-E 3.0 standard.

  • Page 2: Motherboard Layout

    1.3.Motherboard Layout 1.Connect to DP monitor 2.Connect to HDMI monitor 3.Connect to USB3.0 devices 4.Connect to USB2.0 devices and LAN 5.Audio devices 6.4-pin Power connector 7.Fan connector(CPU_FAN, SYS_FAN, AUX_FAN) 8.LGA 1151 socket 9.DIMM4 slots 10.24-pin ATX Power connector 11.System panel connector 12.USB 3.0 header 13.M.2 slot 14.SATA3.0 port...

  • Page 3: Safety Instructions

    2.1.Safety Instructions To reduce the risk of fire, electric shock, and injury, always follow basic safety precautions. Remember to remove power from your computer by disconnecting the AC main source before removing or installing any equip- ment from/to the computer chassis. 2.2.Preparing the Motherboard The motherboard shipped in the box does not contain a CPU or memory.

  • Page 4: Installing Memory Dimms

    The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the connectors on the socket and damaging the CPU! 2.3.Installing Memory DIMMs Your new motherboard has 2 slots for DDR4 memory. They support dual channel DDR4 memory technology. There must be at least one memory bank populated to ensure normal operation.

  • Page 5: Securing The Motherboard Into The Chassis

    2.4.Inslling the Motherboard The sequence of installing the motherboard into the chassis depends on the chassis you are using and if you are replacing an existing motherboard or working with an empty chassis. Determine if it would be easier to make all the connections prior to this step or to secure the motherboard and then make all the connections.
  • Page 6 2.7.1.ATX power connectors (24-pin ATXPWR, 4-pin ATX12V) These connectors are for an ATX power supply. The plugs from the power supply are designed to fit these connectors in only one orientation. Find the proper orientation and push down firmly until the connectors completely fit. 2.7.2.Serial ATA 3.0 6Gb/s connectors (7-pin) These connectors connect to Serial ATA 3.0 6Gb/s hard disk drives and optical drives via Serial ATA 3.0 6Gb/s signal cables.

  • Page 7: Usb 3.0 Connectors

    Parts The standard RJ-45 jack is for connection to single Local Area Network (LAN). LAN Jack You can connect a network cable to it. Lie-In(Blue) Used for external CD player, tape player or other audio devices. Line Out(Green) This connector for speakers or headphones. Side R/L(Gray) Side surround speakers connector Onboard DisplayPort port, connect to DisplayPort Monitor...
  • Page 8 2.7.6.Front panel audio connector This connector is for a chassis-mounted front panel audio I/O module that supports either High Definition Audio or AC`97 audio standard. Connect one end of the front panel audio I/O module cable to this connector. 2.7.7.System panel connector This connector supports several chassis-mounted functions.
  • Page 9 2.7.8.CPU, Chassis, and Power fan connectors (CPU_FAN，SYS_FAN1，AUX_FAN) Connect the fan cables to the fan connectors on the motherboard, making sure that the black wire of each cable matches the ground pin of the connector. 2.7.9.M.2 Slot The motherboard has three M.2 slots，the silk screen is "M2_1" M.2 slot, which supports the 2260/2280 specification SATA SSD, the silk screen is "M2_3"...
  • Page 10 2.7.10.Clear CMOS Jumper: CLR_CMOS There is a CMOS RAM on board that has a power supply from external battery to keep the system configuration data. With the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system configura- tion, use the CLR_CMOS Jumper to clear data.

  • Page 11: Bios Setup

    F9: Optimized Defaults F10: Save & Exit Hard Disk Drive Priorities ESC/Right Click: Exit 4.Copyright Notice Copyright This motherboard manual belongs to Colorful Technology and Development CO, LTD. No one is permitted to copy, change, or translate without our written permission.

  • Page 12: Technical Support

    Disclaimer The products name we mentioned in this manual is only for identifying, all of the brands belong to other company. The registered trademarks of IBM, VGA and PS/2 belong to International Business Machines. The registered trademarks of Intel, Pentium, Pentium Ⅱ, Celeron, Pentium III and Pentium 4 belong to Intel. The registered trademark of Athlon belongs to Advanced Micro Devices, Inc.
