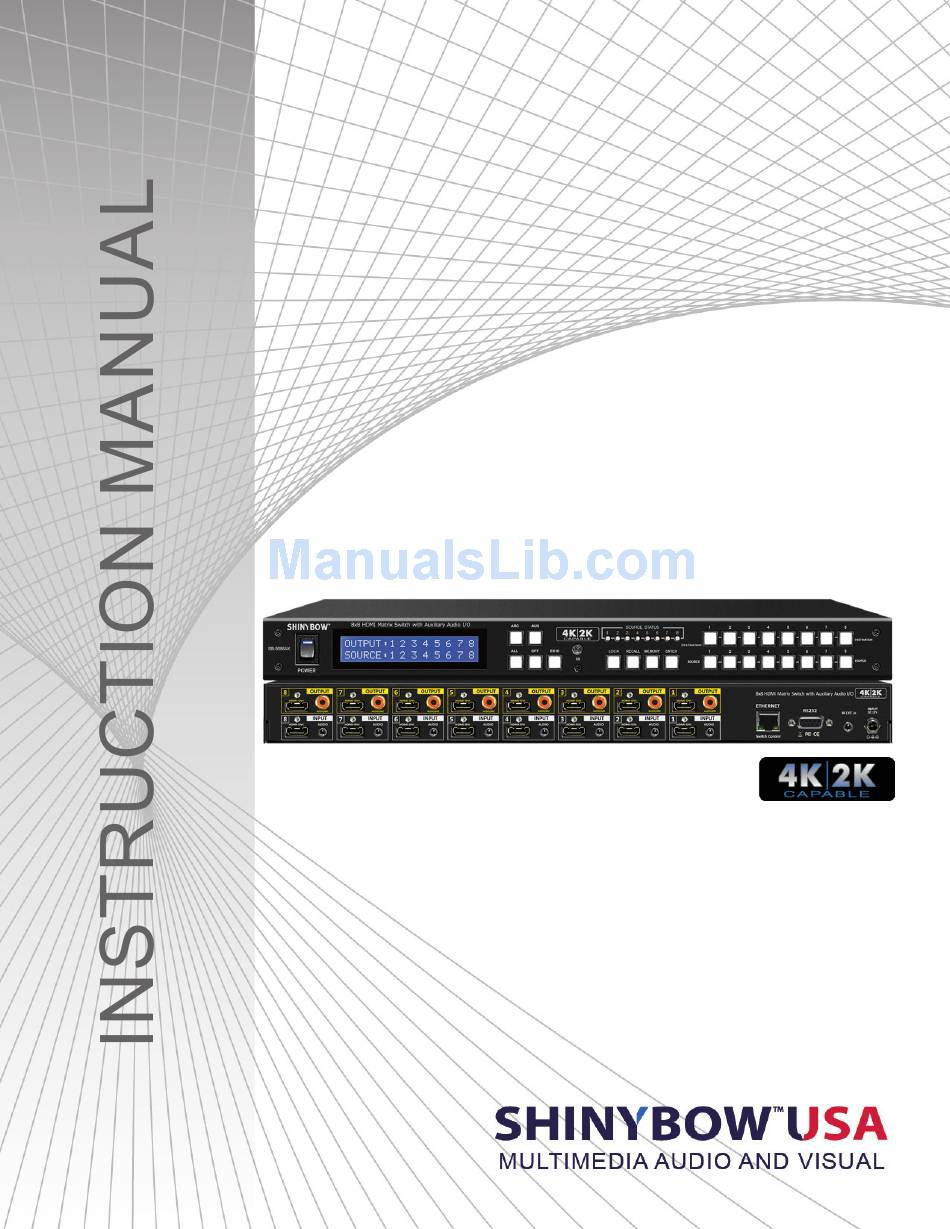

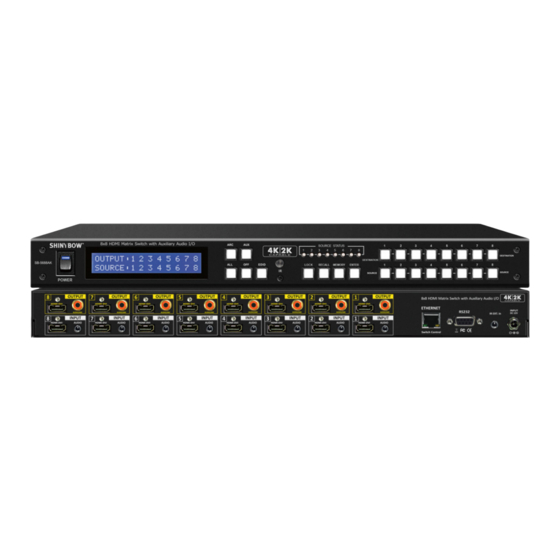

- Page 1 SB-5688AK 8x8 HDMI UHD 4K2K Capable Matrix Routing Switch w/ EDID Management, ARC and Auxiliary Audio Input & Output 4K2K Capable...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
HDMI-AUDIO MATRIX SWITCHER SERIES Thank you for purchasing the SB-5688AK HDMI Matrix Switch with Auxiliary. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use 8x8 HDMI Matrix switcher. -
Page 4: Package Contents
PACKAGE CONTENTS & FEATURES PACKAGE CONTENTS Check that you have the following components: • SB-5688AK Matrix Switcher • Ethernet & RS-232 V2.0 Protocol Instructions • Master wireless IR Remote Control (SW-HD88AK) • 19 inch Ear mount bracket (Part # 1U-440L) •... -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS • Type of HDMI Switcher: 8x Inputs to 8x Outputs HDMI Matrix Switch with Audio and Extension • HDMI Support: HDMI 4K2K, 1080p@60Hz, H36-bit Deep color, 3D of HDMI V1.4 formats • HDCP/CEC Support: HDCP 2.0 Compliant, CEC Compliant • Video Bandwidth: Double Data Rates: 340MHz, Total 6.75Gbps bandwidth • Digital Video Support: HD:480i/ 480p/ 720p/ 1080i/p and 4K2K up to 36bit deep color • Video Inputs: 8x HDMI (HDMI or DVI digital source) -
Page 6: Front Panel
FRONT PANEL FRONT PANEL 1. POWER ON SWITCH The power switch turns the unit on and off. The LCM will illuminate blue to indicate the switcher is ON and receiving power. The switcher will remember the last setting during a power cycle. When power is removed and resorted, the last configuration will be evoked. 2. -
Page 7: Front Panel-Arc
FRONT PANEL-ARC FRONT PANEL-ARC 9. FUNCTION KEY - ARC Audio Return Channel (ARC) is a feature that sends audio from the TV back down the HDMI cable to its source device, in this case, the switcher, Not all displays support ARC; check your Users Guide for additional information. - Page 8 FRONT PANEL-AUX FRONT PANEL- AUX 10. FUNCTION KEY - AUX (The audio additional on the “Audio / ARC” port ) The AUX FUNCTION feature allows you to replace the embedded HDMI audio signal with an audio signal that is connected to the switchers Audio AUX Input. Using the AUX function replaces the audio and does not mix the audio.
-
Page 9: Front Panel-Edid
FRONT PANEL-EDID-ALL-OFF-LOCK-ENTER FRONT PANEL-EDID 12. FUNCTION KEY - EDID (1) Used to display change current EDID mode. - Press EDID to select new EDID mode or select - Press SOURCE row #1 or #2 Select EDID modes. - Press ENTER to ready memory location. - Or press EDID again to cancel operation. - Page 10 FRONT PANEL-RECALL-MEMORY FRONT PANEL-EDID 17. FUNCTION KEY - RECALL The system will show previously stored presets, up to a total of 16. Presets are stored in local memory using Source keys 1 thru 8 or Destination keys 1 thru 8 as the memory preset location.
-
Page 11: Rear Panel
BACK PANEL-SWITCH CONTROLS BACK PANEL-SWITCH CONTROLS 1. DC POWER INLET: Power Socket: The Switcher is fitted with a DC power plug input connector. DC Jack - inner OD Ø 2.1mm (+ ) Ensure that the used is of an approved type and is of sufficient Outside OD Ø... -
Page 12: Back Panel-Hdmi Input / Output
BACK PANEL-HDMI INPUT / OUTPUT BACK PANEL-HDMI INPUT / OUTPUT HDMI Connector: 5. INPUTS- 1,2,3,4,5,6,7, & 8 HDMI: HDMI Type A SMD 19pin Female Connect a HDMI signal source link of HDMI source direct HDMI socket connector. digital video/audio to this Female HDMI connector. This HDMI Note: With the proper adapters, the switcher port support HDMI and DVI digital video sources. -
Page 13: Remote Control
REMOTE CONTROL Before making any connections to the switcher, observe the following: • Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •... - Page 14 REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES : CUSTOM CODE : 01FC POWER ON : 01FC A15E POWER OFF : 01FC A25D ARC : 01FC B847 LOCK : 01FC B54A AUX : 01FC 9966 EDID : 01FC B748...
-
Page 15: Edid Functions
EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER EDID Setup To Change the EDID Setup Step 1. Press the EDID button The display will show the currently selected EDID mode Step 2. Press SOURCE #1 or #2 button row The button will flash blue and the display will show the current Embedded EDID Status. - Page 16 EDID FUNCTION EDID function for HDMI Matrix Switcher Mode 5 . H36-3D-M (1080p-36 bits) Audio Support : MAT(MLP) 7.1CH, PCM 2CH, One Bit Audio 2CH, AC-3 5.1CH, DTS 5.1CH, PCM 7.1CH, Dolby Digital + 7.1CH, DTS-HD 7.1CH Mode 6 . 4K2K (24/30Hz) HDMI Support : 4K2K-3D, PCM 2CH (3860x2160-24/30Hz) Audio Support: PCM 2CH Mode 7 .
- Page 17 EDID FUNCTION Learning EDID Single to Single Example : Learn Destination #8 EDID To Source #5. The button will flash blue and the display will show the current Embedded EDID Step 1. Press EDID button Status. Step 2. Press the Destination #8 button row Copy the Destination #8 Display EDID.
- Page 18 EDID FUNCTION-PASS MODE The PASS feature is part of a firmware update released after JUNE 2014. If you do not see the PASS feature then you do not have the latest firmware. You should contact your place of purchase for availability of a firmware update. Note all devices are eligible for this firmware update.
-
Page 19: Typical Application
INSTALLING DIAGRAM Samples connection : Using Switch IR External port, RS-232 or Ethernet command to control Switcher SB-5688AK via one PC or SB-100 IR receiver transmit the SB-5688AK’s IR signal. NOTE: 1. Switcher IR External port : Use SB-100 IR signal Receiver. -
Page 20: Ir Extender
IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SW-5669 R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . - Page 21 IR EXTENDER IR EXTENDER 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out CAT6/6a/7 DC 12V IR in R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300M) 2.
-
Page 22: Ethernet Serial Interface
ETHERNET & RS-232 SERIAL INTERFACE ETHERNET SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended Ethernet Protocol Instruction Manual. ETHERNET SERIAL INTERFACE Pin Ethernet Reference TXOP TX + TXON TX - RXIP... -
Page 23: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 24 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
