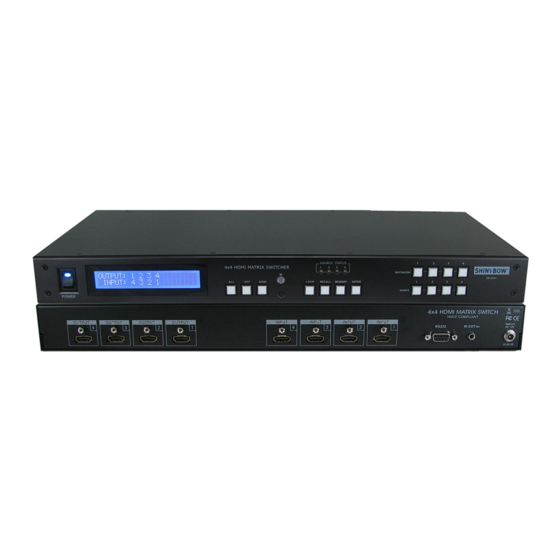

SB-5645LCM
4x4 HDMI Matrix Routing Switcher w/ Full EDID Management/Learning
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the provided HDMI Locking Post
replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws
without installing the HDMI Locking Post replacement screws will void your warranty.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shinybow USA SB-5645LCM-HDMI
Summary of Contents for Shinybow USA SB-5645LCM-HDMI

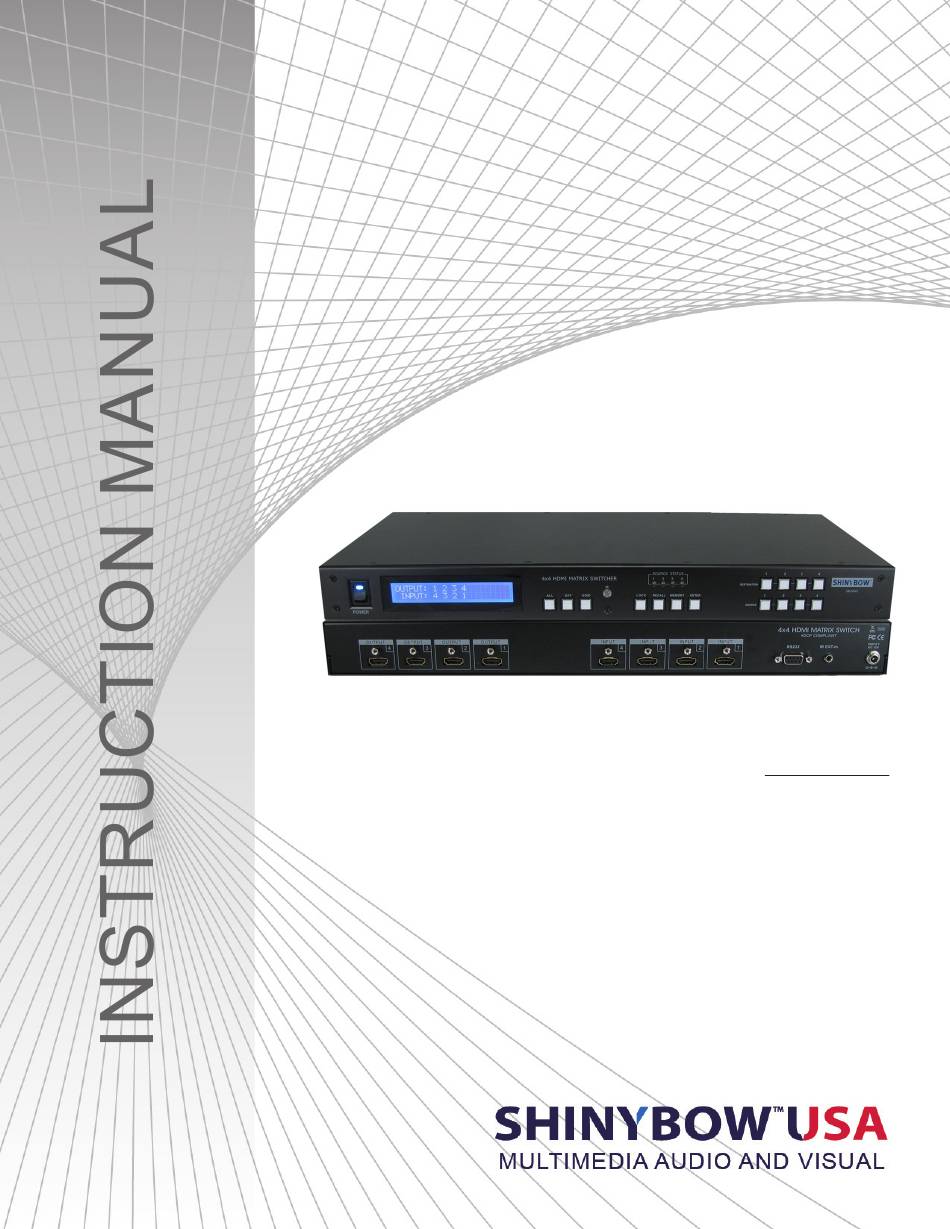

- Page 1 SB-5645LCM 4x4 HDMI Matrix Routing Switcher w/ Full EDID Management/Learning IMPORTANT WARRANTY INFORMATION. If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws without installing the HDMI Locking Post replacement screws will void your warranty.
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
TABLE OF CONTENTS HDMI Matrix Switcher Series Thank you for purchasing the SB-5645LCM 4x4 HDMI Matrix Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use 4x4 HDMI Matrix switcher. CONTENTS SAFETY PRECAUTIONS INTRODUCTION .............. -
Page 4: Features & Contents
FEATURES FEATURES • (4) HDMI digital source devices matrix switched to (4) HDMI devices • HDMI digital video w/ embedded audio, DVI format and CEC/HDCP 2.0 compliant • (7) function keys control and worldwide EDID modes for HDTV resolutions • Link speeds of up to 6.75Gbps (link clock rate of 225MHz). Supports HDMI 1.4a 3D formats •... -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS • Type of Switcher: (4) HDMI Inputs to (4) HDMI Outputs Matrix Switcher • HDMI Support: HD 1080p@60Hz, H36-bit Deep color, 3D (1.4a) formats • HDCP / CEC Support: HDCP 2.0 Compliant, CEC Compliant • Video Bandwidth: Double Data Rates: 225Mhz, Total 6.75Gbps bandwidth • Digital Video Support: Full HD Resolution: 480i / 480p / 720p / 1080i / 1080p • Digital Audio Support: Multi Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) -
Page 6: Front Panel
FRONT PANEL FRONT PANEL 1. POWER SWITCH: The power switch turns the unit on and off. The LCM will illuminate red to indicate that the switcher is ON and is receiving power. The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked. - Page 7 FRONT PANEL FRONT PANEL 9. FUNCTION KEY - OFF: Disables (mutes) video to selected channels. Either destinations. - Press OFF button followed by any destination channel. - Press 1 THRU 2 output destination. The display will show “0“ for the selected channel indicating no video selected.
- Page 8 FRONT PANEL FRONT PANEL 12. FUNCTION KEY - MEMORY: The system will show stored presets, up to a total of (6). Presets are stored in local memory using Source keys 1 thru 4 or Destination keys 1 thru 2 as the memory preset location. - Configure desired matrices.
-
Page 9: Back Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: POWER JACK: The switcher is fitted with a DC power plug input connector. Ensure that the plug used is of an approved type and DC Jack - Inner OD Ø 2.1mm (+) is of sufficient current carrying connector capacity with the correct Outside OD Ø... -
Page 10: Remote Control
REMOTE CONTROL Before making any connections observe the following: • Ensure the main voltage supply matches the label on the supplied plug-pack (+/-10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •... - Page 11 REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES : CUSTOM CODE : 1CE3 DATA CODE : 1CE3 POWER ON: 1CE3 A15E LOCK: 1CE3 B54A POWER OFF: 1CE3 A25D RECALL: 1CE3 B24D ALL: 1CE3 B04F MEMORY:...
-
Page 12: Rs-232 Serial Interface
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM. VERSION COMPATIBLE V2.0.1 RS-232 SERIAL CONNECT Pin RS-232 Definition ------ Not used Transmitter Receiver ------ Not used Ground ------ Not used ------ Not used ------ Not used ------ Not used RS-232 RS-232 PROTOCOL COMMANDS (RS-232 CONTROL DRIVER V2.0.1) -
Page 13: Edid Functions
EDID FUNCTION EDID FUNCTION SETUP EDID SETUP To Change The EDID Setup Step 1. Press the EDID button The display will show the currently selected EDID mode. Step 2. Press SOURCE #1 OR #2 button row The button will flash blue and the display will show the current Embedded EDID Status. - Page 14 EDID FUNCTION EDID FUNCTION: (8) EMBEDDED EDID MODES EDID FUNCTION: (8) EMBEDDED EDID MODES Mode 1. FSS (Fast Speed Start Fast Speed Start mode shortens the startup time of the switcher. Select- ® ® ® ing this mode does not force the EDID setup to be cancelled. Users may first select one EDID mode from mode 2 to 3, and then select mode 1 for fast speed start ®...
- Page 15 EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER LEARNING EDID Learning EDID From Destination To Source EDID > DESTINATION Learning EDID setup Press Button EDID > DESTINATION > SOURCE > ENTER Press The LCM will be show LEARNING. The switcher will LEARN destination HDMI EDID and pass the selected source.
-
Page 16: Ir Extender
IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . -
Page 17: Typical Application
TYPICAL APPLICATION INSTALLING DIAGRAM Sample Connection: Using IR Transmitters (SB-101) and IR Receivers (SB-100) with SB-6335T & SB-6335R to control a projector. NOTE: 1. Control Projector Over CAT5e/6/7 Extender: SB-6335T HDMI CAT5e/6/7 Transmitter SB-6335R HDMI CAT5e/6/7 Receiver 2. Preview Output: Picture as same OUTPUT-1 3. - Page 18 TYPICAL APPLICATION INSTALLING DIAGRAM Sample Connection: Using IR Transmitters (SB-101) and IR Receivers (SB-100) with SB-6335T and SB-6335R to control a Satellite Receiver. NOTE : 1. Control Satellite Receiver Over HDMI CAT5e/6/7 Extender from room: SB-6335T HDMI CAT5e/6/7 Transmitter SB-6335R HDMI CAT5e/6/7 Receiver 2.
- Page 19 LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
- Page 20 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
