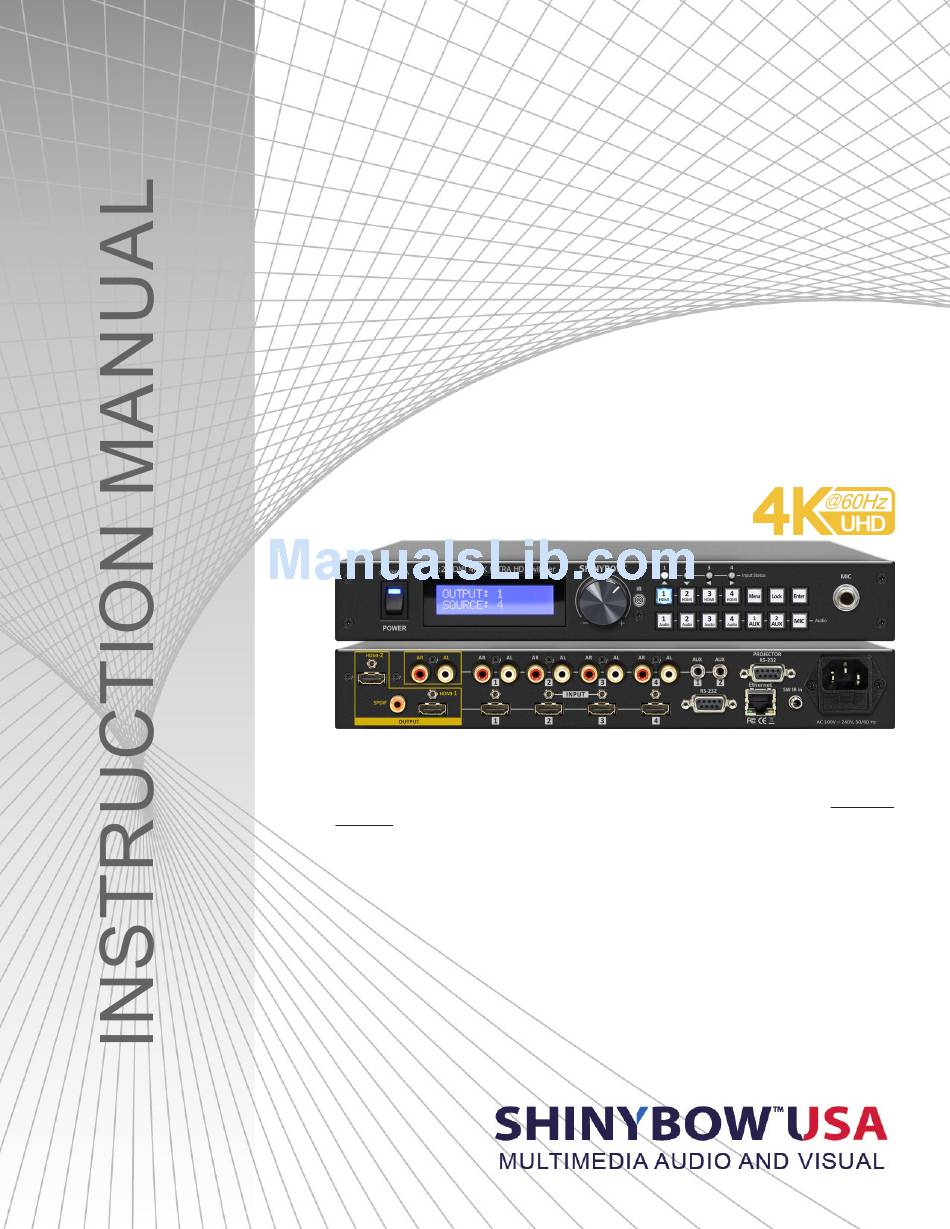

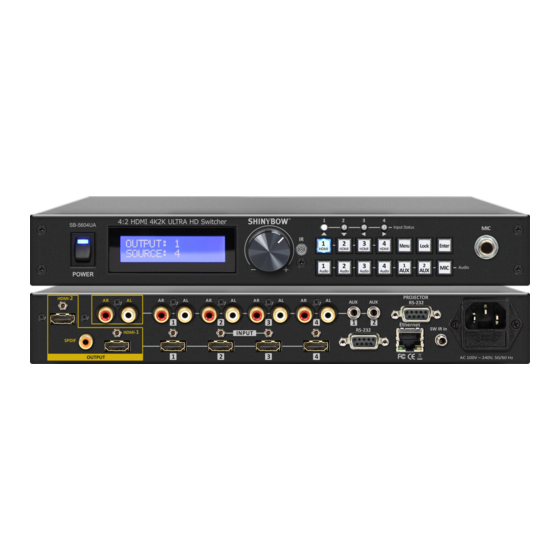

SB-5604UA
ULTRA HD 4K2K
4x2 (Mirrored) HDMI Routing Switcher (4K@60Hz) w/ Audio
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the provided HDMI Locking Post
replacement screws to keep the internal HDMI jack secure. Removing the HDMI
screws without installing the HDMI Locking Post replacement screws will void your
warranty.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shinybow USA SB-5604UA
Summary of Contents for Shinybow USA SB-5604UA
- Page 1 SB-5604UA ULTRA HD 4K2K 4x2 (Mirrored) HDMI Routing Switcher (4K@60Hz) w/ Audio IMPORTANT WARRANTY INFORMATION. If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws without installing the HDMI Locking Post replacement screws will void your warranty.
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
• Do not attach the power supply cabling to building surfaces. • Use only the supplied power supply unit (PSU). Do not use the The SB-5604UA is a professional 4x2 ULTRA HD HDMI PSU if it is damaged. 4K2K@60Hz Routing Switcher. HD Video supporting (4) HDMI •... -
Page 4: Features
FEATURES FEATURES • Switch support ULTRA HD 4x2 HDMI 4K2K@60Hz and 7x1 Audio/Microphone/Auxiliary audio. • Inputs: • UHD (4) In: (4) HDMI • Audio (7) In: (4) Stereo audio, (1) Microphone and (2) Auxiliary Audio • Outputs: • UHD (2) Out: (1) HDMI 4K2K@60Hz, (1) HDMI 4K2K@30Hz, (1) SPDIF (5.1) •... -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS • Type of Switcher: (4) HDMI Inputs to (2) HDMI Outputs, (7) Audio Inputs to (1) Audio Output Box • Inputs: • UHD Inputs: (4) Ultra High Definition HDMI (4K2K@60Hz) • Audio Inputs: RL/AUX/MIC (4) Stereo Audio AR/AL, (1) Microphone, (2) Auxiliary Audio (analogue audio) • Outputs: • UHD Output: (1) Ultra High Definition HDMI (4K2K@60Hz), (1) SPDIF (Digital Audio 5.1), (1) Ultra High Definition HDMI (4K2K@30Hz) • Audio Output: (1) Stereo Audio AR/AL (with balance and volume control) -
Page 6: Front Panel
FRONT PANEL - FUNCTION KEYS FRONT PANEL 1. POWER SWITCH: The power switch turns the unit on and off. The LED will illuminate blue to indicate that the switcher is ON and is receiving power. The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked. - Page 7 FRONT PANEL - SWITCH FRONT PANEL - SWITCH 10. FUNCTION KEY - SW: HDMI Source Table: Audio Source Table: Auxiliary & Microphone Source Table: Input-1 - HDMI (HD1) Input-1 - Audio (AUD1) Input-1 - Auxiliary Audio source - (AUX1) Input-2 - HDMI (HD2) Input-2 - Audio (AUD2) Input-2 - Auxiliary Audio source - (AUX2) Input-3 - HDMI (HD3)
- Page 8 FRONT PANEL - MENU (Setup EDID) FRONT PANEL - FUNCTION KEY - MENU 11. FUNCTION KEY - MENU (SETUP EDID): MENU mode to adjust the EDID, Projector On/Off, Learning modes & Reset status. Configure desired matrices. 1. Press the MENU button. The LCM display will show the current status. 2.
- Page 9 FRONT PANEL - MENU (AUDIO BREAKAWAY) FRONT PANEL-FUNCTION KEY - MENU 11. FUNCTION KEY - MENU (PROJECTOR): MENU mode to adjust the EDID, Projector, Learning M2 modes & Reset status. Configure desired matrices. 1. Press the MENU button. The LCM display will display on current status. 2.
- Page 10 FRONT PANEL - (LRN-M2) FRONT PANEL-FUNCTION KEY - MENU 11. FUNCTION KEY - MENU (LRN-M2): MENU mode to adjust the EDID, Projector, Learning M2 (Second Learning Mode) & Reset status. Configure desired matrices. 1. Press the MENU button. The LCM display will display on current status. 2.
- Page 11 FRONT PANEL - MENU (RESET) / LOCK FRONT PANEL-FUNCTION KEY - MENU/LOCK 11. FUNCTION KEY - MENU (SETUP RESET): MENU mode to adjust the EDID, Projector, Learning M2 modes & Reset status. Configure desired matrices. 1. Press the MENU button. The LCM display will display on current status. 2.
-
Page 12: Back Panel
REAR PANEL - CONTROLS REAR PANEL 1. DC POWER INLET: POWER SOCKET: The switcher is fitted with a DC power plug Connector Type: IEC 60320 C13 input connector. Ensure that it is of an approved type and is of sufficient current carrying connector capacity with the correct voltage and connector polarity. - Page 13 REAR PANEL - I/O DEFINITIONS REAR PANEL 6. (2) AUX INPUTS (Auxiliary Audio): AUX CONNECTOR: Connects a Stereo/Auxiliary OD Ø 3.5mm phone jack female AUDIO signal direct to the 3.5mm OD female jack. This jack socket connector supports Auxiliary/Analog/Stereo Audio sources. Note: With the proper adapters, the switcher can Audio: The auxiliary audio (Analog Stereo Audio).
-
Page 14: Remote Control
REMOTE CONTROL Before making any connections to the switcher, observe the following: • Ensure the main voltage supply matches the label on the supplied plug-pack (+/-10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. • Avoid powering equipment within a system from multiple power sources that may be separated by large distances. •... - Page 15 REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES: CUSTOM CODE: 6F 90 IR REMOTE: SW-5604UA POWER ON: 6F90 A15E MUTE: 6F90 9E61 POWER OFF: 6F90 A25D 6F90 A758 HDMI Source: DOWN: 6F90 A857 HDMI-1: 6F90...
-
Page 16: External Ir
IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . - Page 17 ETHERNET & RS-232 SERIAL INTERFACE ETHERNET SERIAL INTERFACE CONNECTS A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V5604.1.0 RS-232 SERIAL INTERFACE CONNECTS A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V5604.1.0 For a complete list of commands, please reference external document extended Ethernet / RS-232 Protocol Instruction Manual. FUNCTION COMMAND VARIABLES...
-
Page 18: Typical Application
INSTALLING DIAGRAM Sample Connection: 1. Using IR External, RS-232 or Ethernet commands to control the SB-5604UA via a PC and the SB-100 IR receiver to transmit to the SB-5604UA’s IR signal. 2. Using RS-232 series interface to control a projector via the SB-5604UA’s commands with a PC. - Page 19 TYPICAL APPLICATION - 2 HDMI I/O & SPDIF OUTPUT INSTALLING DIAGRAM Sample Connection: Using (4) UHD 4K@60Hz HDMI sources switched to (2) UHD 4K2K@60Hz/4K2K@30Hz HDMI destinations with one SPDIF HDMI Audio output. NOTE: 1. (4) UHD 4K2K@60Hz Sources supported. 2. (1) UHD 4K2K@60Hz output. 3.
- Page 20 TYPICAL APPLICATION - AUDIO SWITCH I/O INSTALLING DIAGRAM Sample Connection: Using (4) Stereo Audio (AR/AL), (2) Auxiliary Audio and (1) Microphone for a total of (7) Audio Source Inputs with Audio Volume control, (1) Stereo Audio (AR/AL) Output. NOTE: 1. (4) Stereo Audio source devices. 2.
-
Page 21: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using or installing the product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the product and return the product to SHINYBOWUSA, Inc. - Page 22 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 23 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 24 Distributed by Solid Signal www.solidsignal.com 877.312.4547...
