Shinybow USA SB-5688CAK Instruction Manual

8x hdmi inputs / 8x hdmi & 8x hdbaset outputs - uhd 4k2k matrix routing switch w/ edid management/learning w/ auxiliary audio i/o 4k2k capable
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

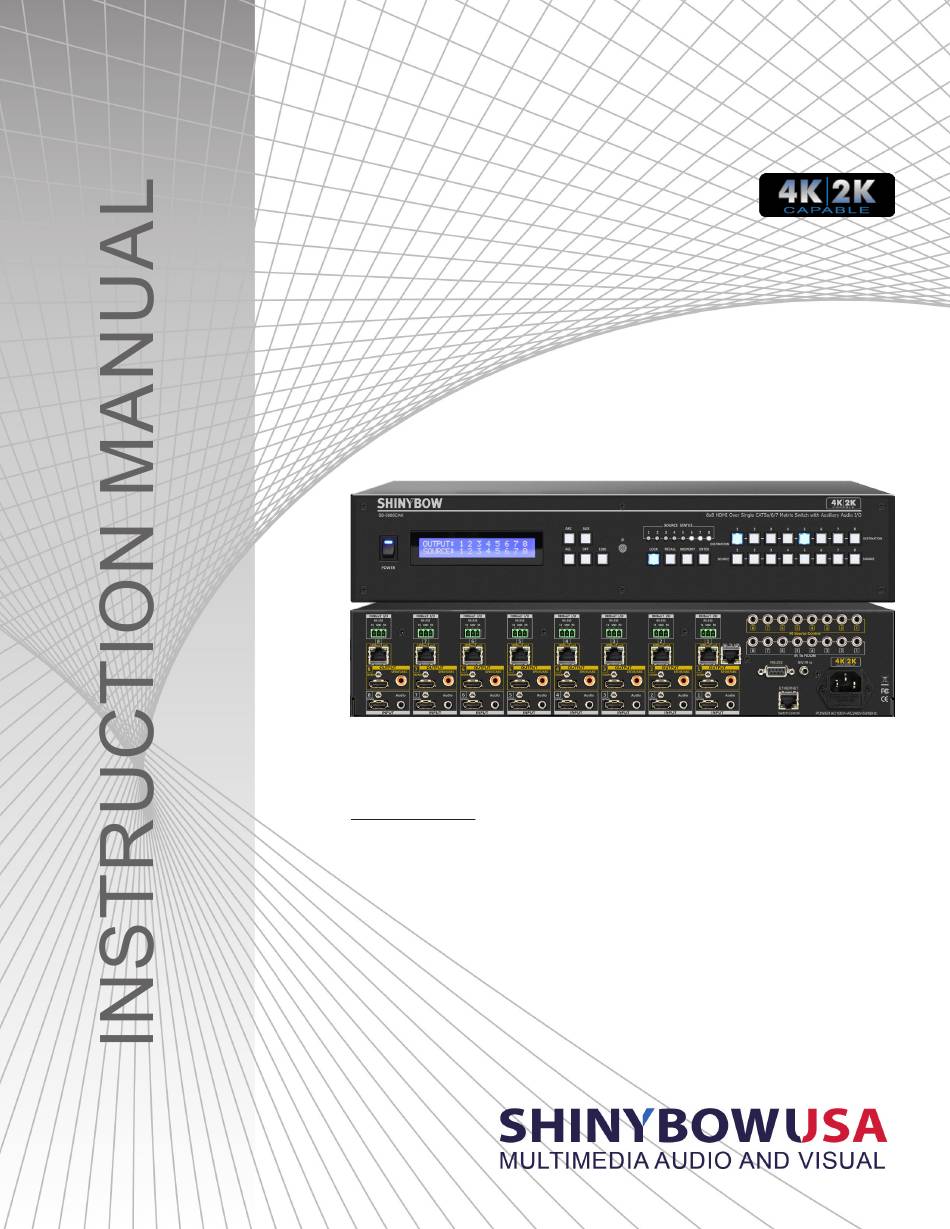

SB-5688CAK
8x HDMI Inputs / 8x HDMI & 8x HDBaseT
Outputs - UHD 4K2K Matrix
™
Routing Switch w/ EDID Management/Learning w/ Auxiliary Audio I/O
4K2K Capable
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the provided HDMI Locking
Post replacement screws to keep the internal HDMI jack secure. Removing the
HDMI screws without installing the HDMI Locking Post replacement screws will
void your warranty.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB-5688CAK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shinybow USA SB-5688CAK

Summary of Contents for Shinybow USA SB-5688CAK

  • Page 1 SB-5688CAK 8x HDMI Inputs / 8x HDMI & 8x HDBaseT Outputs - UHD 4K2K Matrix ™ Routing Switch w/ EDID Management/Learning w/ Auxiliary Audio I/O 4K2K Capable IMPORTANT WARRANTY INFORMATION. If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure.
  • Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.

  • Page 3: Table Of Contents

    HDMI-HDBaseT -AUDIO MATRIX SWITCHER SERIES ™ Thank you for purchasing the SB-5688CAK HDMI-HDBaseT Matrix Switcher. You will find this unit easy to install and ™ highly reliable but it is essential that you read this manual thoroughly before attempting to use 8x8 HDMI-HDBaseT Matrix ™...

  • Page 4: Introduction & Features

    INTRODUCTION & FEATURES INTRODUCTION The SB-5688CAK is professional 8x8 matrix routing switch. Supporting (8) HDMI inputs and (8) auxiliary audio inputs. Output supported (8) HDMI, (8) SPDIF and (8) HDBaseT (PoH optional via the SB-5688CAP*). The SB-5688CAK is based on the HDBaseT standard ™...

  • Page 5: Specifications

    SPECIFICATIONS SPECIFICATIONS • Type of HDMI Switcher: (8) Inputs to (8) Outputs HDMI over HDBaseT Matrix Switch with Audio and Extension ™ • HDMI Support: HDMI 4K2K, 1080p@60Hz, H36-bit Deep color, 3D of HDMI V1.4 formats • HDBaseT Support: Bi-directional IR, RS-232, Multi format Audio, Ethernet and PoH function (optional via the SB-5688CAP), over ™...

  • Page 6: Front Panel

    FRONT PANEL FRONT PANEL 1. POWER ON SWITCH: The power switch turns the unit on and off. The LCM will illuminate blue to indicate the switcher is ON and receiving power. The switcher will remember the last setting during a power cycle. When power is removed and resorted, the last configuration will be evoked.
  • Page 7 FRONT PANEL-ARC FRONT PANEL-ARC 9. FUNCTION KEY - ARC: Audio Return Channel (ARC) is a feature that sends audio from the TV back down the HDMI cable to its source device, in this case, the switcher. Not all displays support ARC, check your Users Guide for additional information.
  • Page 8 FRONT PANEL-AUX FRONT PANEL- AUX 10. FUNCTION KEY - AUX (The audio additional on the “ Audio / ARC” Port ): The AUX FUNCTION feature allows you to replace the embedded HDMI audio signal with an audio signal that is connected to the switchers Audio AUX Input. Using the AUX function, this replaces the audio and does not mix the audio.
  • Page 9 FRONT PANEL-EDID FRONT PANEL-EDID 12. FUNCTION KEY - EDID (1): Used to display changes the current EDID mode. - Press EDID to select new EDID mode or select. - Press SOURCE row #1 or #2 Select EDID modes. - Press ENTER to ready memory location. - Or press EDID again to cancel the operation.
  • Page 10 FRONT PANEL-ALL-OFF-LOCK-ENTER FRONT PANEL-ALL-OFF-LOCK-ENTER 13. FUNCTION KEY - ALL: Disables (mutes) video on all destinations OR assign the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show ”0” to indicate none of the destinations are assigned a video source.
  • Page 11 FRONT PANEL-RECALL-MEMORY FRONT PANEL-RECALL-MEMORY 17. FUNCTION KEY - RECALL: The system will show previously stored presets, up to a total of (16). Presets are stored in local memory using Source keys 1 thru 8 or Destination keys 1 thru 8 as the memory preset location.

  • Page 12: Back Panel

    BACK PANEL-SWITCH CONTROLS BACK PANEL-SWITCH CONTROLS 1. DC POWER INLET: POWER SOCKET: The switcher is fitted with an AC power plug Connector Type: IEC 60320 C13 input connector. Ensure that it is of an approved type and is of sufficient current carrying connector capacity with the correct voltage and connector polarity.
  • Page 13 BACK PANEL-HDMI INPUT / OUTPUT BACK PANEL-HDMI INPUT / OUTPUT 5. INPUTS- 1,2,3,4,5,6,7, & 8 HDMI: HDMI CONNECTOR: Connects a HDMI digital video/ HDMI Type A SMD 19pin female audio signal source direct to the female HDMI connector. This socket connector HDMI port supports HDMI and DVI digital video sources.
  • Page 14 BACK PANEL-HDBASET CONTROLS ™ BACK PANEL-HDBASET CONTROLS ™ 9. HDBASET RS-232 - 1,2,3,4,5,6,7 & 8 CONNECTION: REMOTE PORT: ™ (8) RS-232 Terminal Block-3pin female socket control port allows for interfacing to a PC. Controls switcher I/O via HDBaseT Transmitter to (8) rooms each via a Terminal Block- ™...
  • Page 15 BACK PANEL-HDBASET ™ BACK PANEL-HDBASET ™ 15. OUTPUT - 1,2,3,4,5,6,7 & 8 HDBaseT (Transmitter): HDBASET TRANSMITTER CONNECTOR: ™ ™ Sends (8) HDMI and control signals via the (8) HDBaseT Transmitters (8) RJ-45 Jack 8P8C female socket ™ to link (8) external HDBaseT Receivers.

  • Page 16: Remote Control

    REMOTE CONTROL Before making any connections to the switcher, observe the following: • Ensure the main voltage supply matches the label on the supplied plug-pack (+/-10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •...

  • Page 17: Remote Protocol Commands

    REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES: CUSTOM CODE: 46B9 POWER ON: 46B9 A15E LOCK: 46B9 B54A EDID: 46B9 B748 POWER OFF: 46B9 A25D RECALL: 46B9 B24D ARC: 46B9 B847 ALL: 46B9 B04F MEMORY:...
  • Page 18 ROOM REMOTE CONTROLS ROOM REMOTE CONTROL #1 ~ #8 CUSTOM CODE AND DATA CODES IR CUSTOM AND DATA CODES (NEC Standard) PRESS Number To Select SOURCE CUSTOM CODE: 46B9 IR-01 DATA CODE: IR-02 DATA CODE: IR-03 DATA CODE: SOURCE #1 : 46B9 11EE SOURCE #1 : 46B9 21DE SOURCE #1 : 46B9 31CE SOURCE #2 : 46B9 12ED...
  • Page 19 EDID FUNCTION - SYSTEM RESET/FACTORY RESET SYSTEM RESET SYSTEM RESET RETURN SWITCH TO FACTORY DEFAULTS RECALL > OFF > ENTER RESET to Factory Default Press 1. Press RECALL button: The LCM will show the current stored presets status. 2. Press OFF button: The LCM will show “SYSTEM RESET” 3.

  • Page 20: Edid Functions

    EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER EDID SETUP To Change The EDID Setup Step 1. Press the EDID button The display will show the currently selected EDID mode. Step 2. Press SOURCE #1 OR #2 button row The button will flash blue and the display will show the current Embedded EDID Status. Step 3.
  • Page 21 EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER Mode 1. FSS (Fast Speed Start Fast Speed Start mode shortens the startup time of the switcher. Selecting this ® ® ® mode does not force the EDID setup to be cancelled. Users may first select one EDID mode from mode 2 to 3, and then select mode 1 for fast speed start ®...
  • Page 22 EDID FUNCTION LEARNING EDID SINGLE TO SINGLE Learning Destination #2 EDID To Source #3 Step 1. Press EDID button The button will flash blue and the display will show the current Embedded EDID Status. Step 2. Press the DESTINATION #2 button row Copy the Destination #2 Display EDID.

  • Page 23: Typical Application

    INSTALLING DIAGRAM Sample Connection: 1. Using IR External, RS-232 or Ethernet command to control the SB-5688CAK via PC or SB-100 IR receiver transmit the SB-5688CAK’s IR signal. 2. Audio output link ARC from TV return channel, HDMI audio source or mixing Auxiliary audio.
  • Page 24 TYPICAL APPLICATION INSTALLING DIAGRAM Sample Connection: Using SB-5688CAK HDBaseT Transmitter and one HDBaseT Receiver (SB-6320R) to control a projector via RS-232 or IR signals. ™ ™ NOTE: 1. IR Control Projector Over HDBaseT Extender: SB-5688CAK ™ HDBaseT Transmitter / SB-6320R HDBaseT Receiver ™...
  • Page 25 TYPICAL APPLICATION INSTALLING DIAGRAM Sample Connection: Using SB-5688CAK with IR Transmitters (SB-101) via SB-6320R to control a IR signal from Satellite Receiver. NOTE: 1. IR Control Satellite Receiver Over HDBaseT Extender via CAT6/6a/7 cable: ™ HDBaseT Transmitter: SB-5688CAK ™ HDBaseT Receiver: SB-6320R ™...

  • Page 26: Ir Extender

    IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT .
  • Page 27 IR EXTENDER IR EXTENDER 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out CAT6/6a/7 IR in DC 12V R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300M) 2.

  • Page 28: Ethernet Serial Interface

    ETHERNET & RS-232 SERIAL INTERFACE ETHERNET SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended Ethernet Protocol Instruction Manual. ETHERNET SERIAL INTERFACE Pin Ethernet Reference TXOP TX + TXON TX - RXIP...

  • Page 29: Hdbaset Application

    HDBASET APPLICATION ™ APPLICATION HDBaseT Matrix Switcher using HDBaseT Receiver (Sold separately). ™ ™ HDBaseT Receiver with Audio: SB-6320R ™ Distance: Max. 100M INPUTS: OUTPUTS: 1. (1) HDBaseT 1. (1) HDMI Out ™ 2. (1) IR External In 2. (1) DVI Audio Controls: (1) RS-232, (1) IR in, (1) IR out, (2) LAN (Ethernet) FRONT PANEL: HDBaseT...
  • Page 30 THIS PAGE IS INTENTIONALLY LEFT BLANK.
  • Page 31 LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
  • Page 32 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
